MAX1000 System
44 Telephony Hardware Manual
• Two access board slots

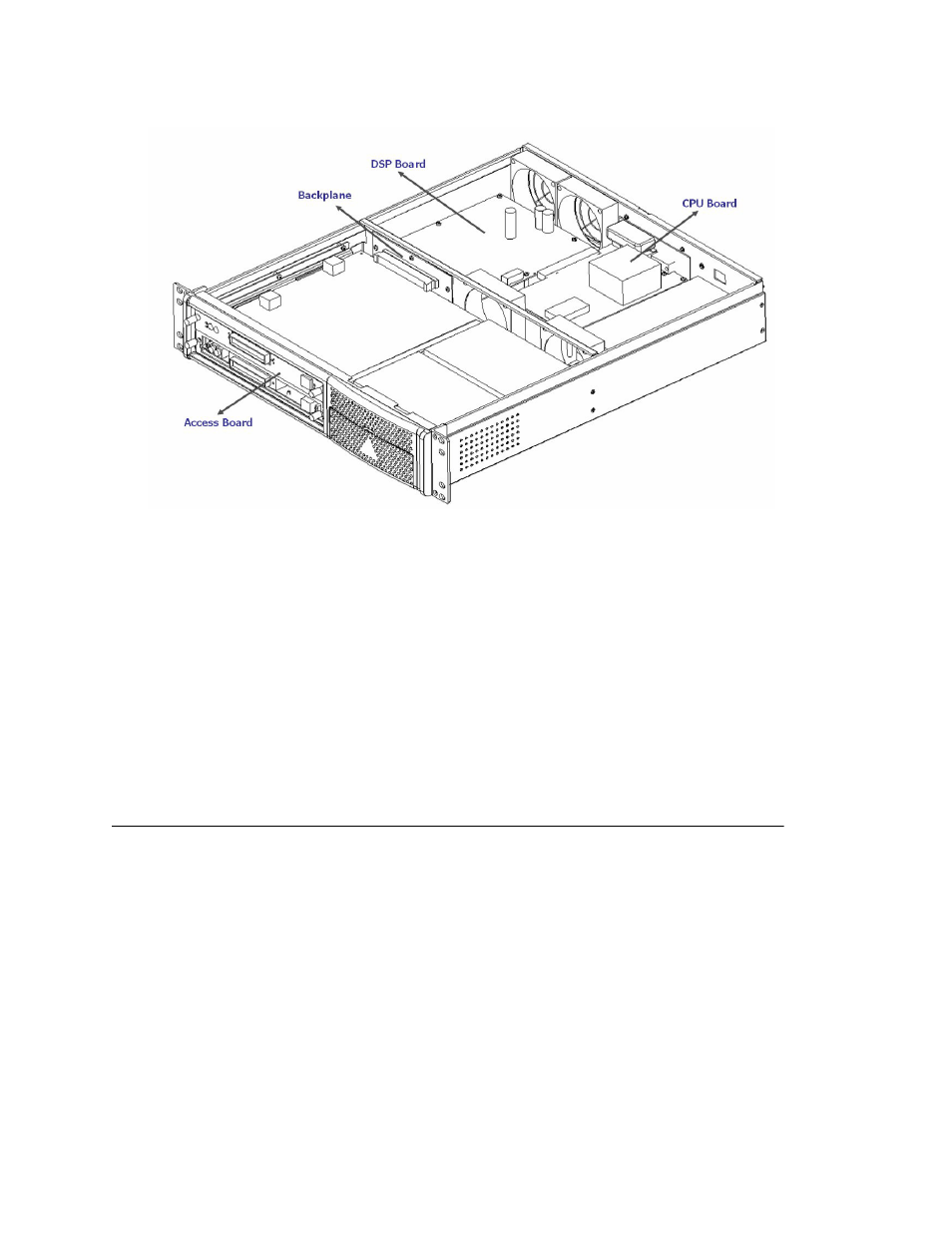

Figure 1. MAX1000 system overview
The embedded DSP board provides the following resources for the system:
• 30 VoIP codec channels (G.711/G.723.1/G.729AB) for IP phone
• IP Tie-trunk, and SIP trunk service
• Dedicated voice processing (VM/AA) and voice recording resource for every trunk,
extension, VoIP channel
• 2 extension-based conference bridges (6 parties per conference)
• 2 MeetMe conference bridges (total 12 members maximum)
• 2 silent monitor/barge-in/coach channels for workgroup supervisor
• Music on hold (input source can be either a file or audio-in port)
• Paging (IP paging, audio-out port, trunk/station port paging)
MAX1000 Series Access Boards
An access board works together with the main DSP board to provide the telephony
interface such as analog extension, analog trunk, and digital trunk (T1/E1/PRI).
The MAX series of telephony access boards consists of the following options:
• ALTI-M0404-T1E1 (4 analog trunks, 4 analog extensions, 1 T1/E1/PRI port)
• ALTI-M0804 (8 analog trunks, 4 analog extensions)
• ALTI-M0408 (4 analog trunks, 8 analog extensions)
• ALTI-M0012 (0 analog trunks, 12 analog extensions)
• ALTI-M0000-T1E1 (single T1/E1/PRI) (supported in MAX Communication Server 6.0
Update 1 and above)
