Functional Specifications of Telephony Boards
38
Telephony
Hardware
Manual

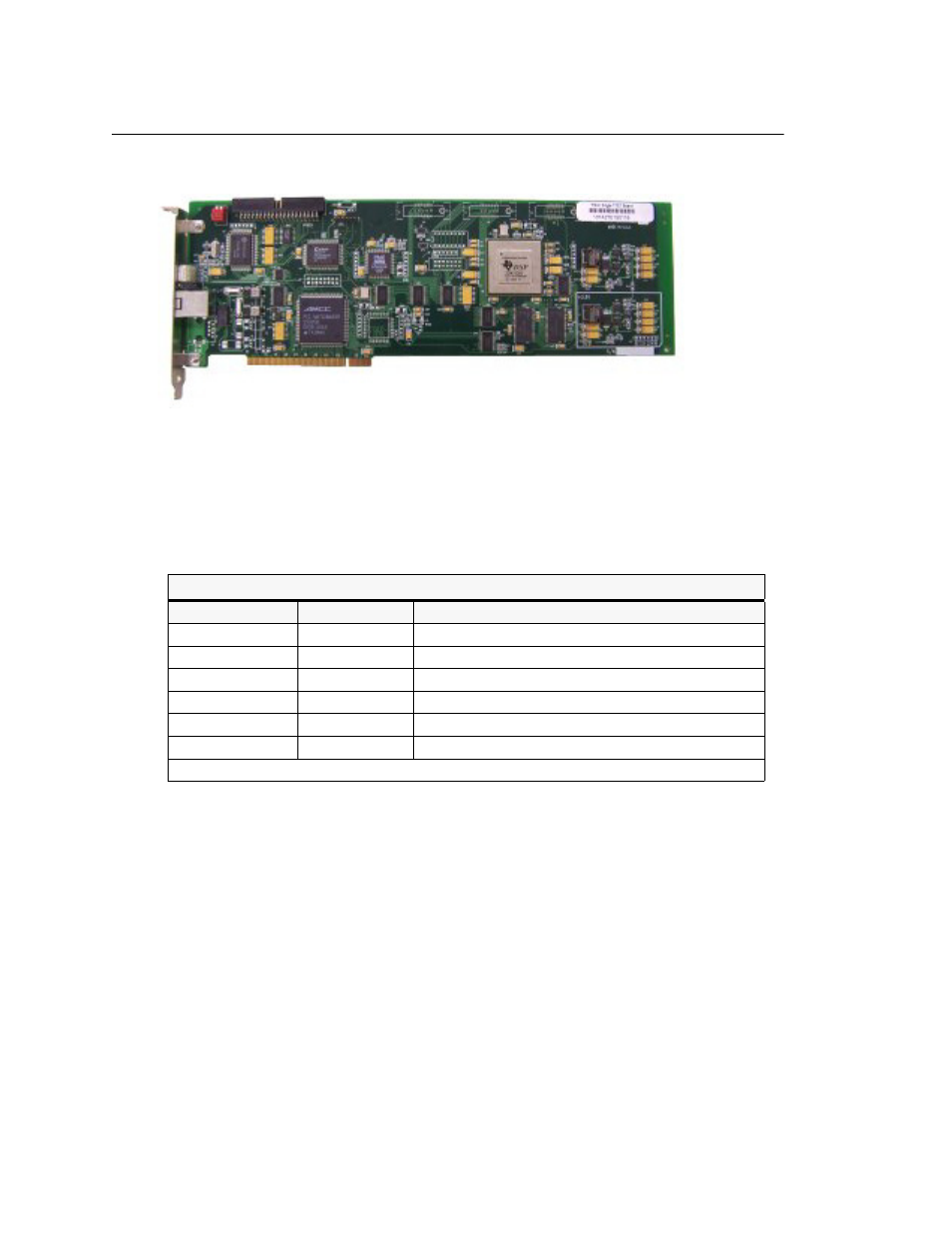

Triton T1E1/PRI Board
Part Number:
ALTI-T1E1-1
Specifications
•
Support T1-CAS, T1 PRI, E1-R2, E1 PRI signaling
•
Voice processing channels: 24 (T1) or 30 (E1)
•
Conversation recording channels: 24 (T1) or 30 (E1)
•
Tone detection
LED Status
LED Indicators
Green LED
Red LED
Status
OFF
OFF
No power
ON
OFF
Normal operation
OFF
ON
No signal
ON
Flashing
Faulty signal with frame synchronization*
OFF
Flashing
Faulty signal without frame synchronization
Alternating
Alternating
Frame slips in normal operation
*Faulty signals include the following: yellow alarm, bipolar violation, or frame error.
