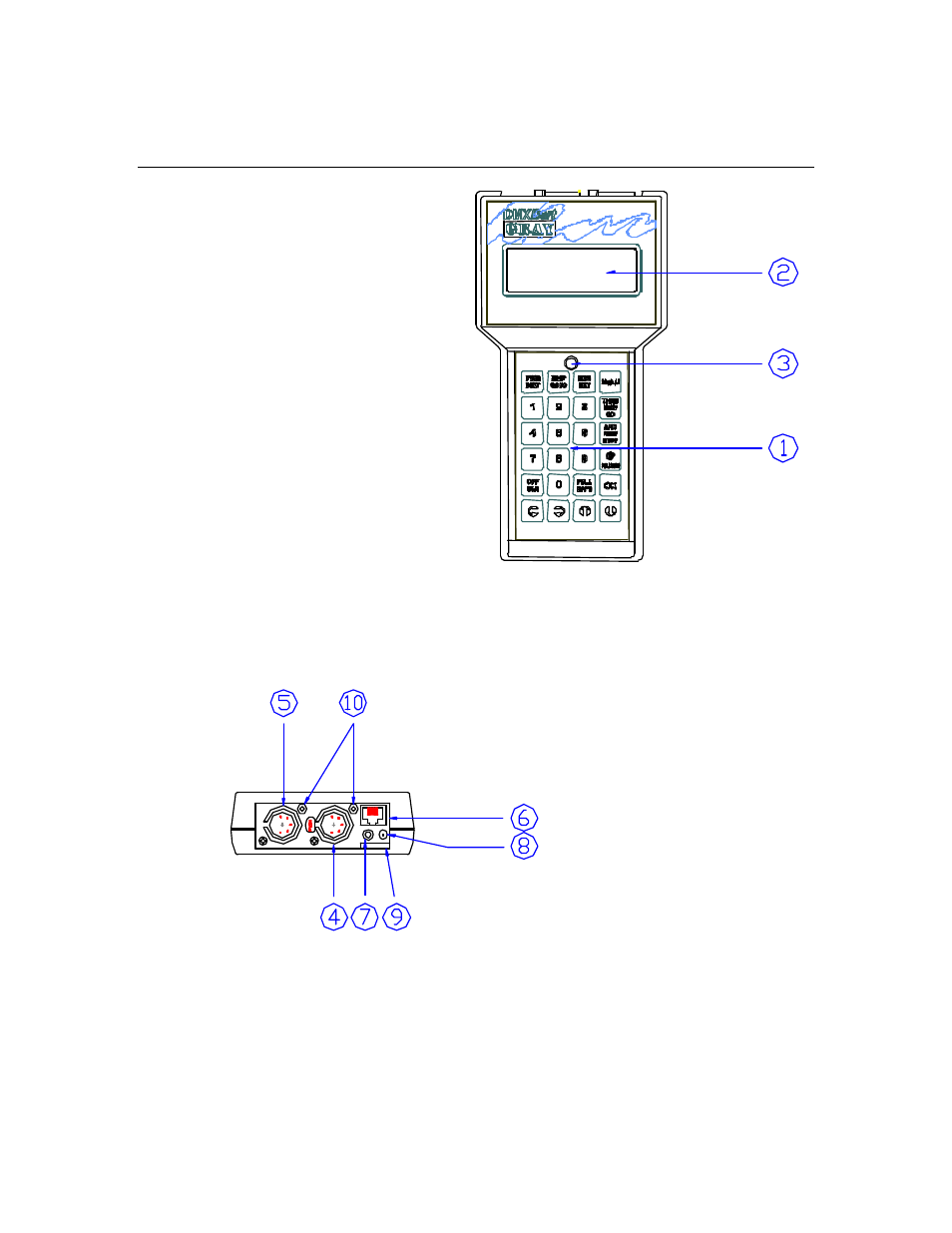

DMXDart Physical Arrangement

The front panel

1

Keypad

2

Backlit LCD Display

3

Joystick

The top panel

4

DMX 512 output (5 Pin female XLR type connector)

5

DMX 512 input (5 Pin male XLR type connector)

6

RS 232 PC serial port (RJ45 receptacle)

7

DC power Input / Scope Sync output (1/8” mini phone receptacle)

8

IR transmitter

9

Future DartFlash slot

10
