the “Process State” change to “In Progress” during the Span calibration, see
figure 4.24 .

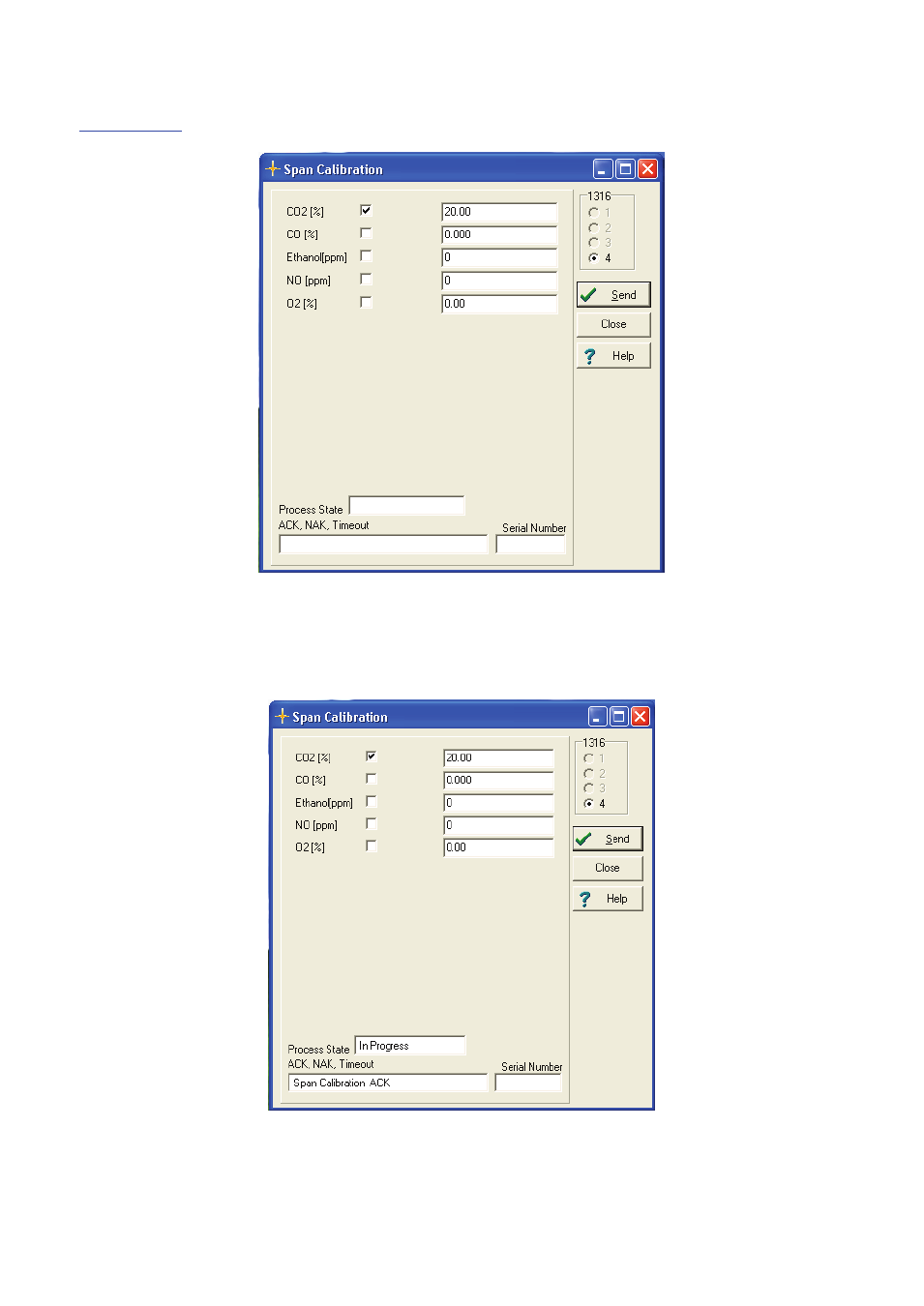

Figure 4.23 The Span Calibration Window to select the gasses and the
concentrations for Span calibration
The text box in the Span Calibration window now displays Span Calibration ACK.
The Span Calibration is in progress.
Figure 4.24 Span Calibration window showing Span calibration in progress.
During Span calibration the Status window will show the “In Progress” status,
see figure 4.25.
