4.3.4 Connecting the Calibration Gas
Warning! Never make a direct connection from the pressure valve
on a gas cylinder. Always use a side-stream connection like the one
shown in figure 4.12 .
20090630_1316
Surplus flow
approx. 200 ml/min
800 ml/min
Multi Gas Monitor - INNOVA 1316
UD 5091
Gas Inlet
Cal. Gas

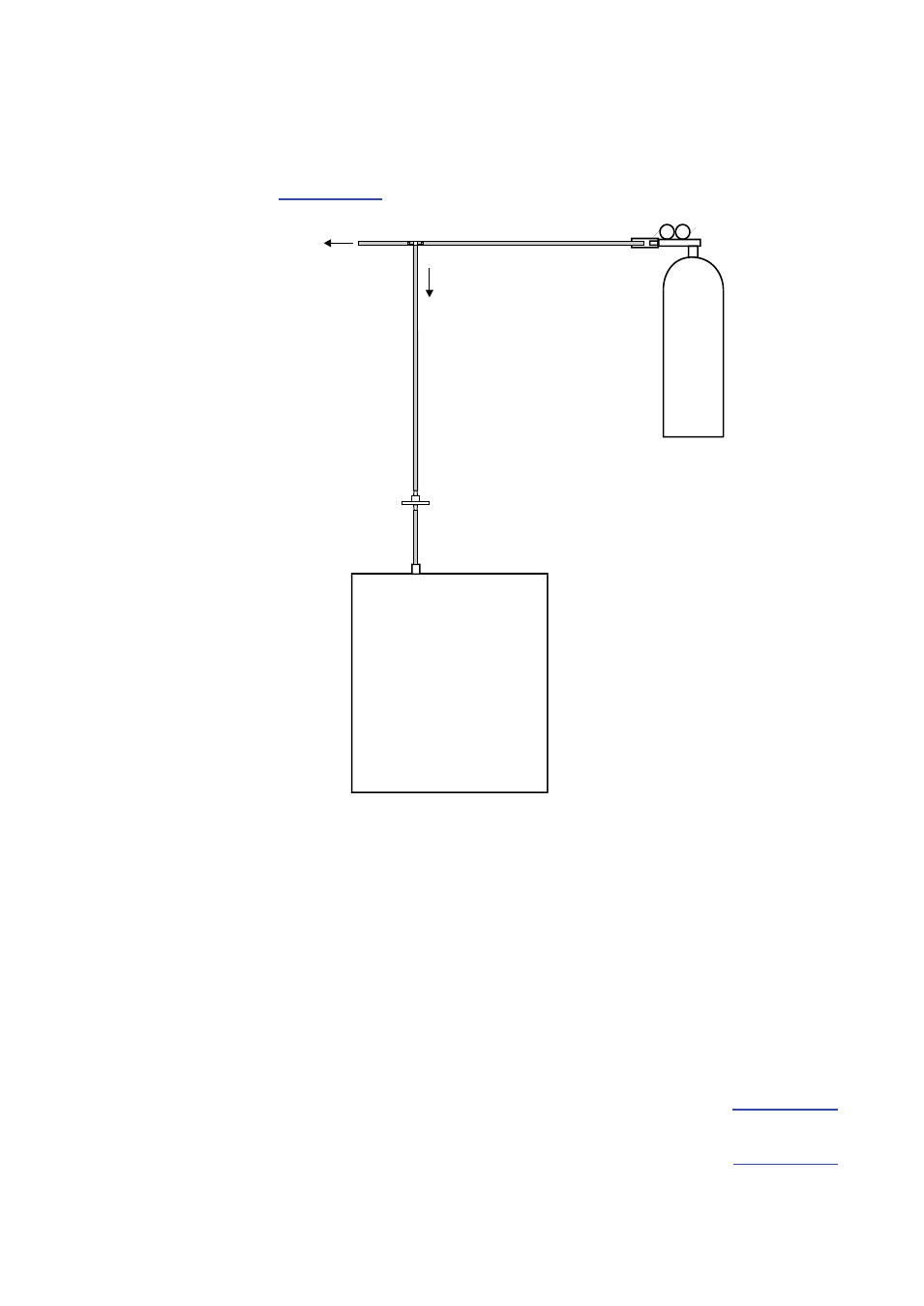

Figure 4.12 Typical side-stream connection set-up used during calibration
4.3.5 Span Calibration
Turn ON the Multi Gas Monitor. You need to let the Multi Gas Monitor –
INNOVA 1316A-3 warm up for at least 5 minutes. For optimum span
calibration accuracy, let the Multi Gas Monitor –INNOVA 1316A-3 warm
up for at least 30 minutes.
While the Multi Gas Monitor –INNOVA 1316A-3 is warming up, perform
the following steps:
1) If a New NO Sensor is required see the Status window
figure 4.13 ,
install a new NO sensor Order number VM0201A.
2) If the New O
2
Sensor is required see the Status window figure 4.14 ,
install a new O
2
sensor. Order number VM0200A.
