Step 5: Tighten the screws that pass through the panel mounting clamps until the plastic
caps at the front of all the screws are firmly secured to the panel (Figure 5-8).

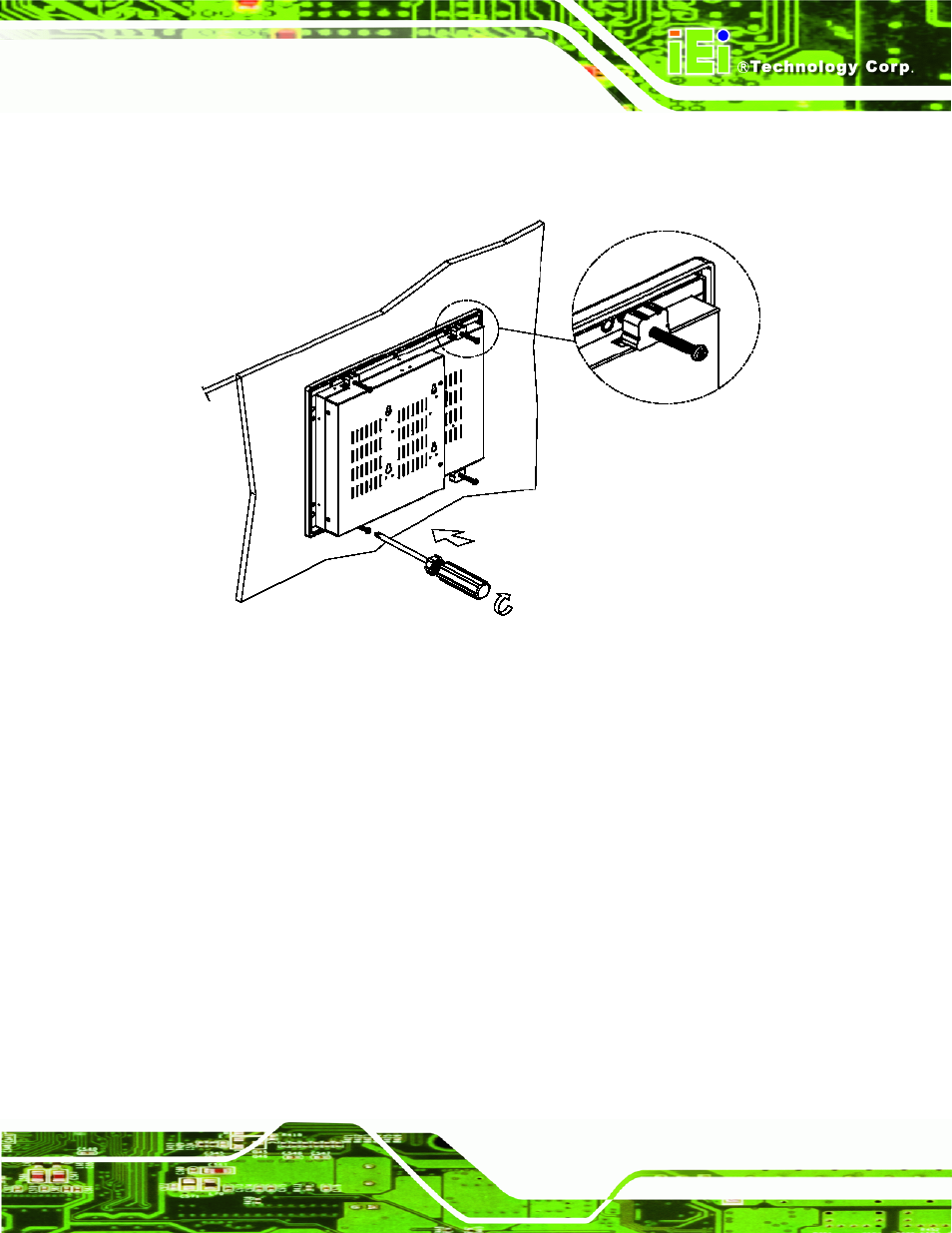

Figure 5-8: Panel Mounting Clamp Position
5.5.2 Cabinet and Rack Installation
The SRM series provides optional rack mount kits for industrial racks. To mount the SRM
series LCD monitor into a cabinet/rack, please follow the steps below.
Step 1: The back of the metal frame surrounding the SRM series LCD monitor has
several retention screw holes for a rack mount kit. See Figure 1-10 and Figure
1-11 .
Step 2: Slide the monitor through the rack mount kit until the rear side of the monitor
frame is flushed against the front of the rack mount kit.
Step 3: Make sure the retention screw holes at the rear of the monitor frame are aligned
with the retention screw holes in the rack mount kit.
