SRM Series/SRM-KIT Series Monitor
Page 7
1.2.4 SRM-KIT Series Rear View
The rear of the SRM-KIT series monitor is a metal chassis. An on screen display (OSD)
control button panel is located vertically on the left side of the chassis with the following
control buttons:
ƒ LCD On/Off
ƒ Auto
ƒ Left
ƒ Right
ƒ Menu
The OSD panel also has one auto-dimming sensor, one power LED and one auto-
dimming LED. Refer to Chapter 6 for a complete description of OSD panel.

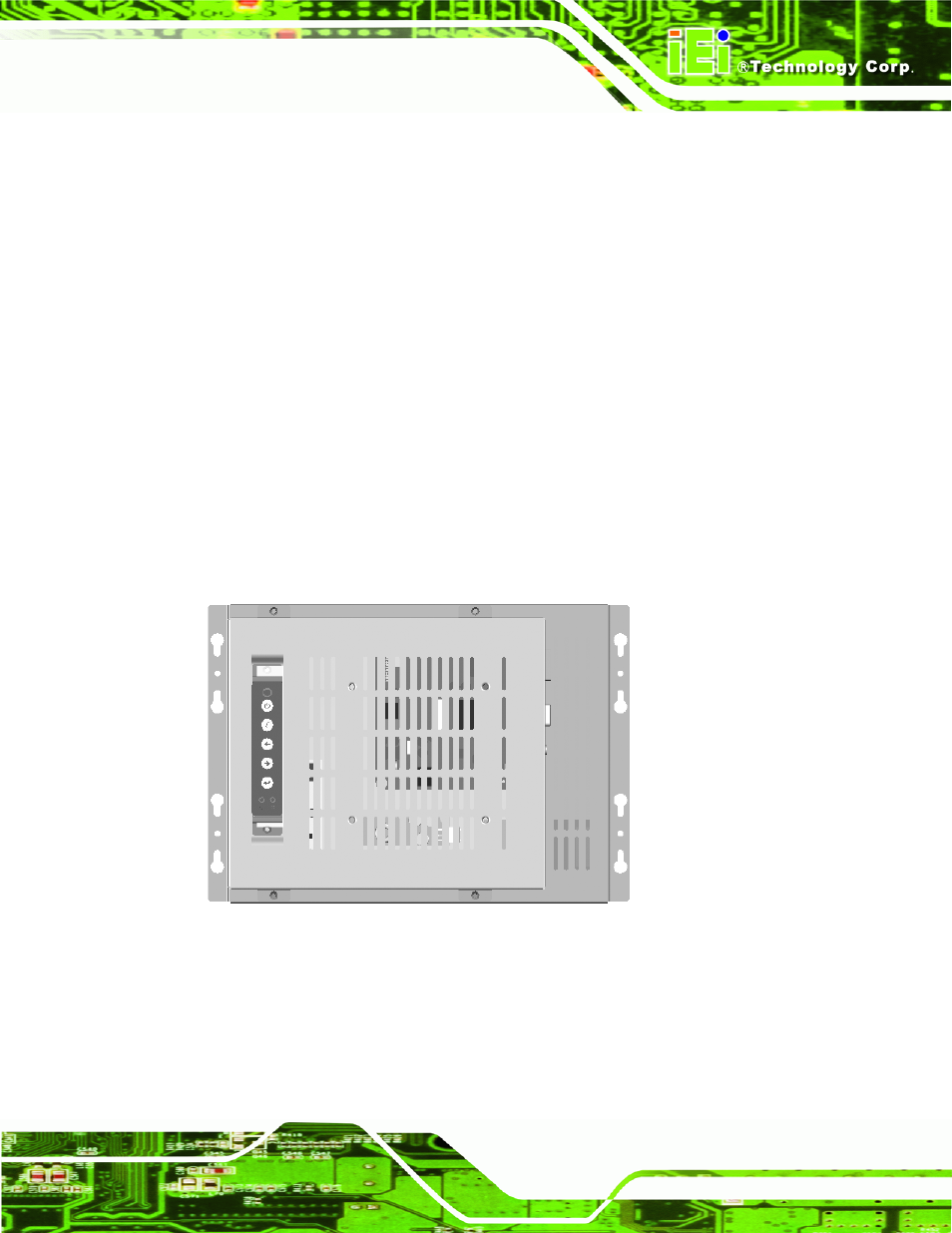

Figure 1-5 shows the LCD monitor rear view of the SRM-KIT121G and the
SRM-KIT150G.
Figure 1-5: SRM-KIT Series Rear View
