4.1 AV-6600 AD Board Overview
The AV-6600 AD board provides a wide variety of control interfaces, receiving and
managing interface signals from a CPU card through cabling. The following sections
describe the AV-6600 AD board in detail.

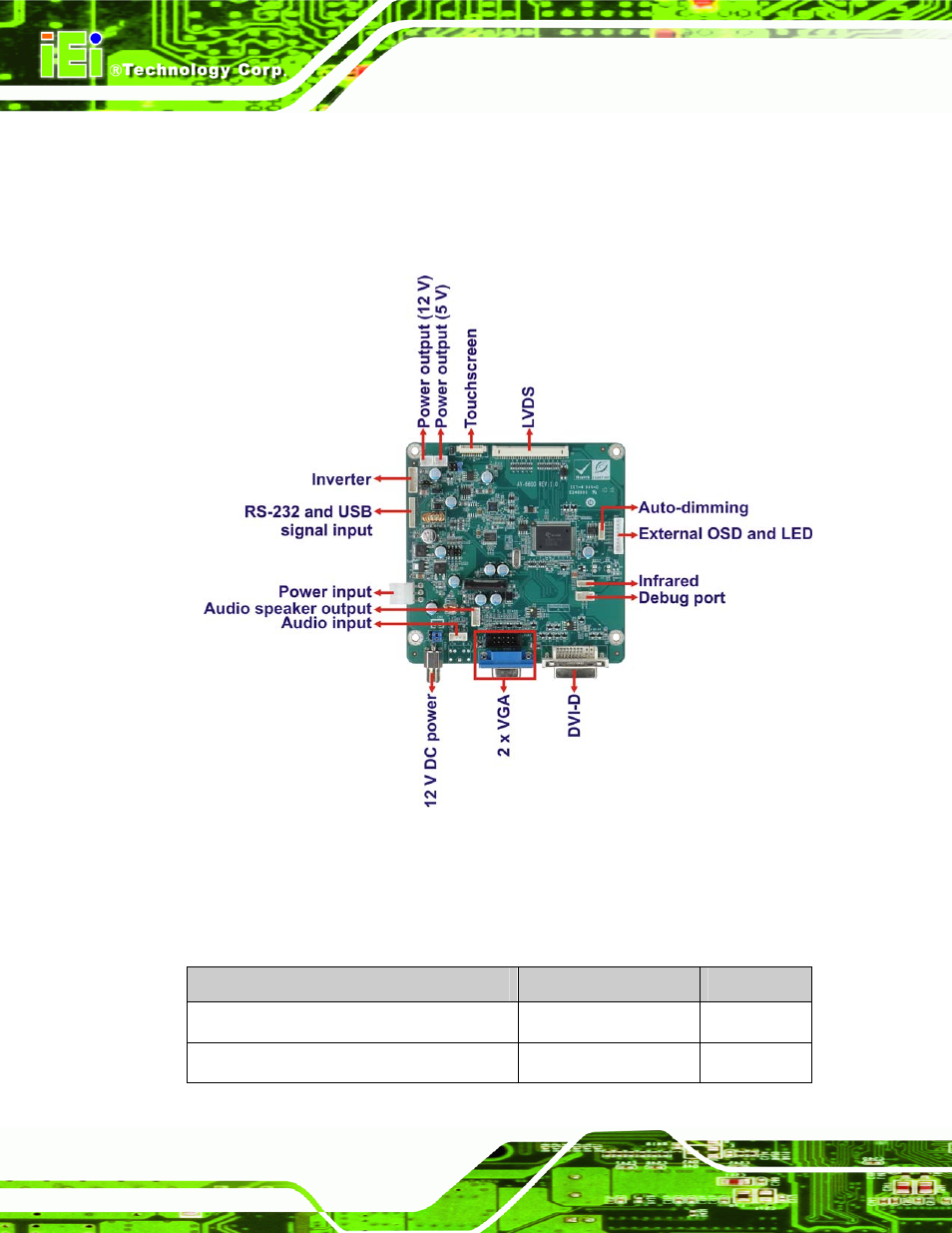

Figure 4-1: AV-6600 AD Board Overview
4.1.1 AV-6600 Peripheral Interface Connectors
Table 4-1 shows a list of the peripheral interface connectors on the AV-6600 AD board.
Connector Type Label
Audio input connector 4-pin wafer connector CN11
Audio speaker output connector 4-pin wafer connector CN12
