LCD-KIT
P a g e 27

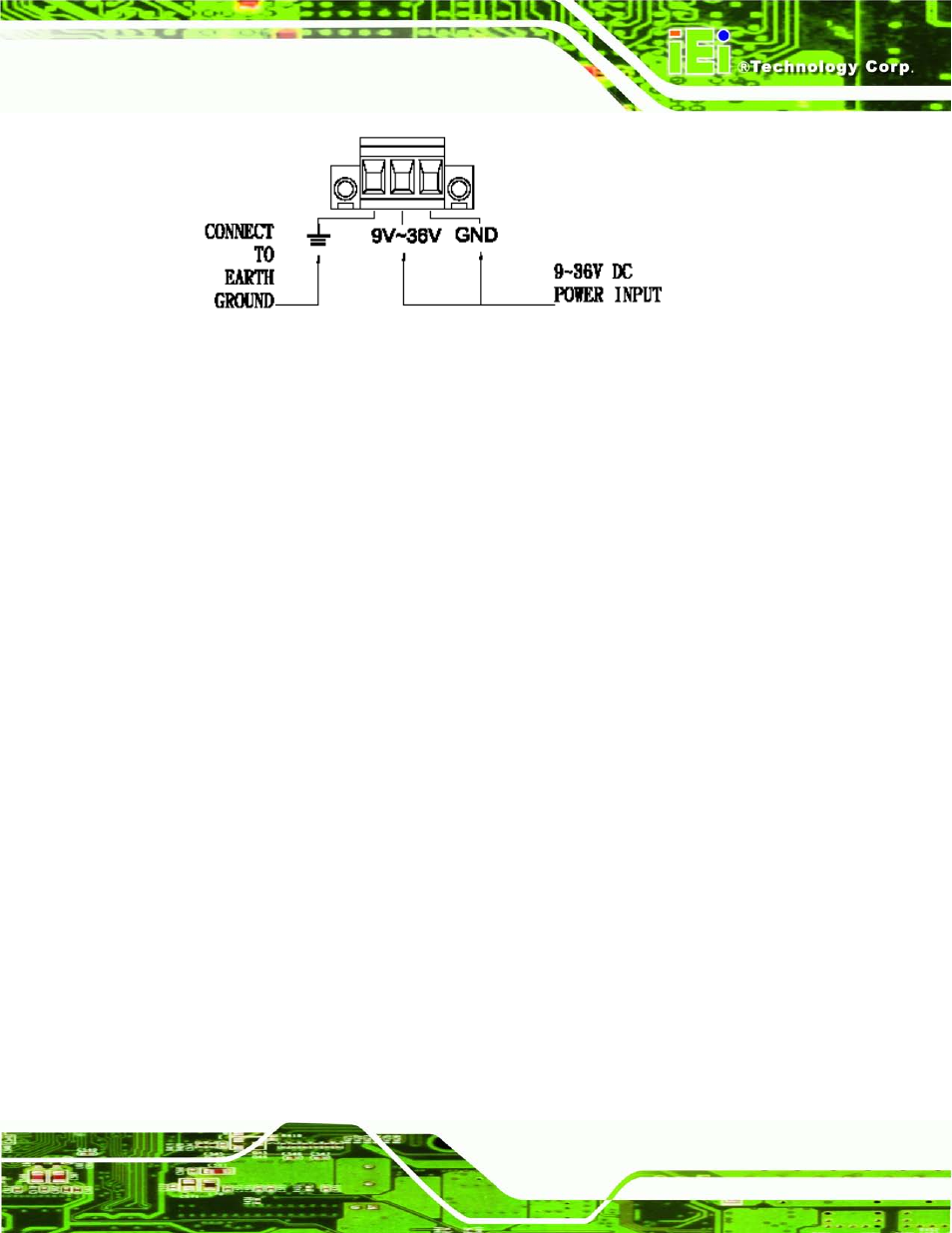

Figure 5-4: Terminal Block
5.5 Mo u n tin g th e LCD-KIT S e rie s LCD Mo n ito r
Each LCD-KIT series LCD monitor comes with a preinstalled mounting bracket with a
number of holes available for mounting purposes that system integrators will find
especially useful. Refer to Sections 2.4 and 2.5 for further details on the number and
location of mounting holes for each model of the LCD-KIT series LCD monitor.
