5.4 Co n n e c to rs
Table 5-1 lists the rear panel connectors for the LCD-KIT series LCD monitors.
LCD-KIT
150G
150GM
170G
170GM
DVI-D
Yes
Yes
Yes
Yes
VGA
Yes
Yes
Yes
Yes
Power (12V Jack)
Yes
Yes
Yes
Yes
Power (9~36V Terminal Block)
(Optional for M model)
-
Yes
-
Yes
Table 5-1: Rear Panel Connectors
5.4.1 VGA Co n n e c to r
Use the rear panel standard 15-pin female VGA connector to connect the LCD monitor to
the system graphics interface.
Pin
Description
Pin
Description
Pin
Description
1
RED
6
GROUND
11
NC
2
GREEN
7
GROUND
12
DDCDAT
3
BLUE
8
GROUND
13
HSYNC
4
NC
9
NC
14
VSYNC
5
GROUND
10
GROUND
15
DDCCLK
Table 5-2: VGA Connector Pinouts

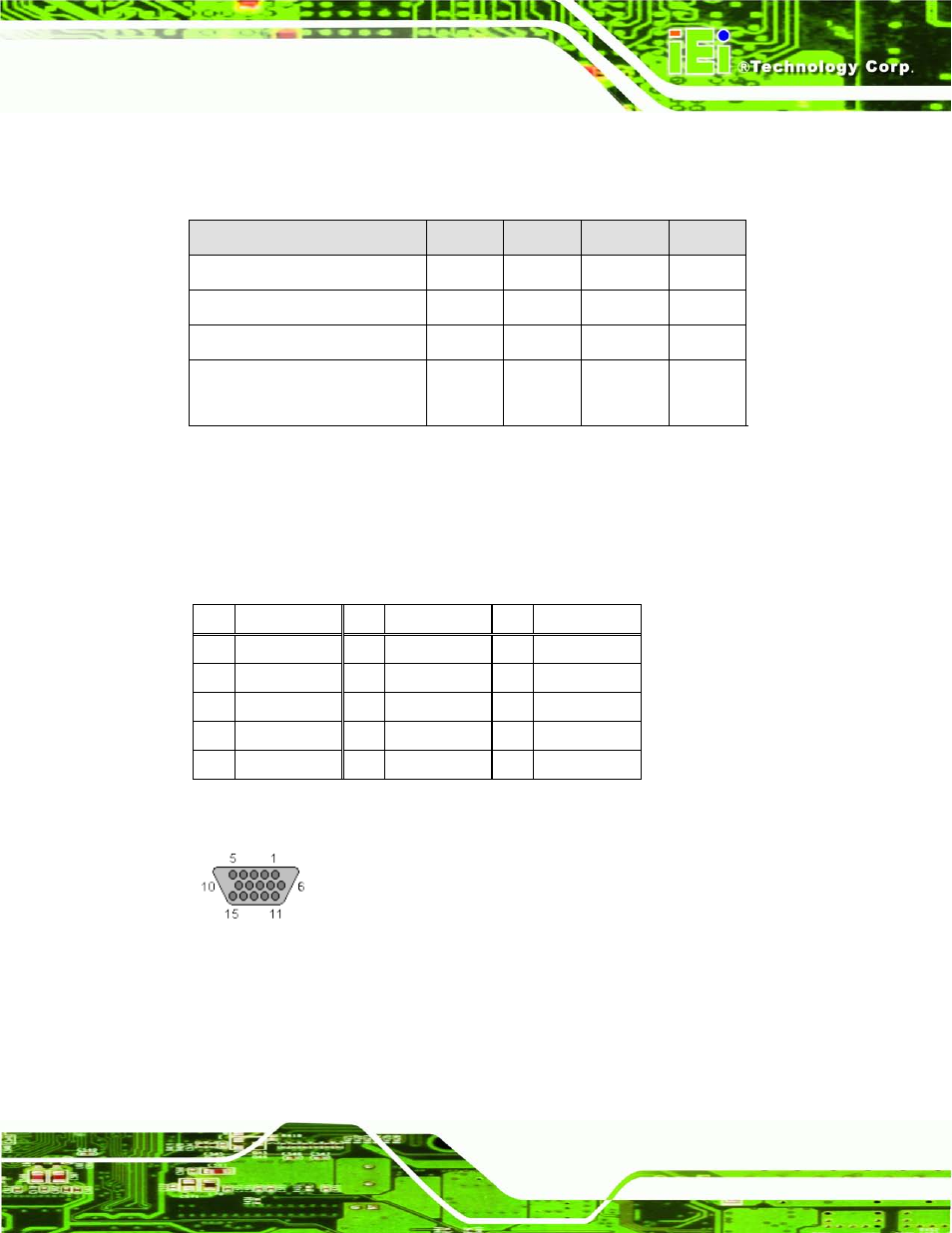

Figure 5-1: VGA Connector
5.4.2 DVI-D Co n n e c to r
Use the rear panel standard 24-pin female DVI-D connector to connect the LCD monitor to
the system graphics interface.
