2.1 In tro d u c tio n
This chapter describes the general mechanical overview of the LCD-KIT series LCD
monitors including rear panel variations, available interfaces and overall dimensions.
2.2 Re a r P a n e l
The following models of the LCD-KIT series LCD monitor have an OSD control panel
located vertically along the left side of the rear panel:
 LCD-KIT150G
 LCD-KIT170G

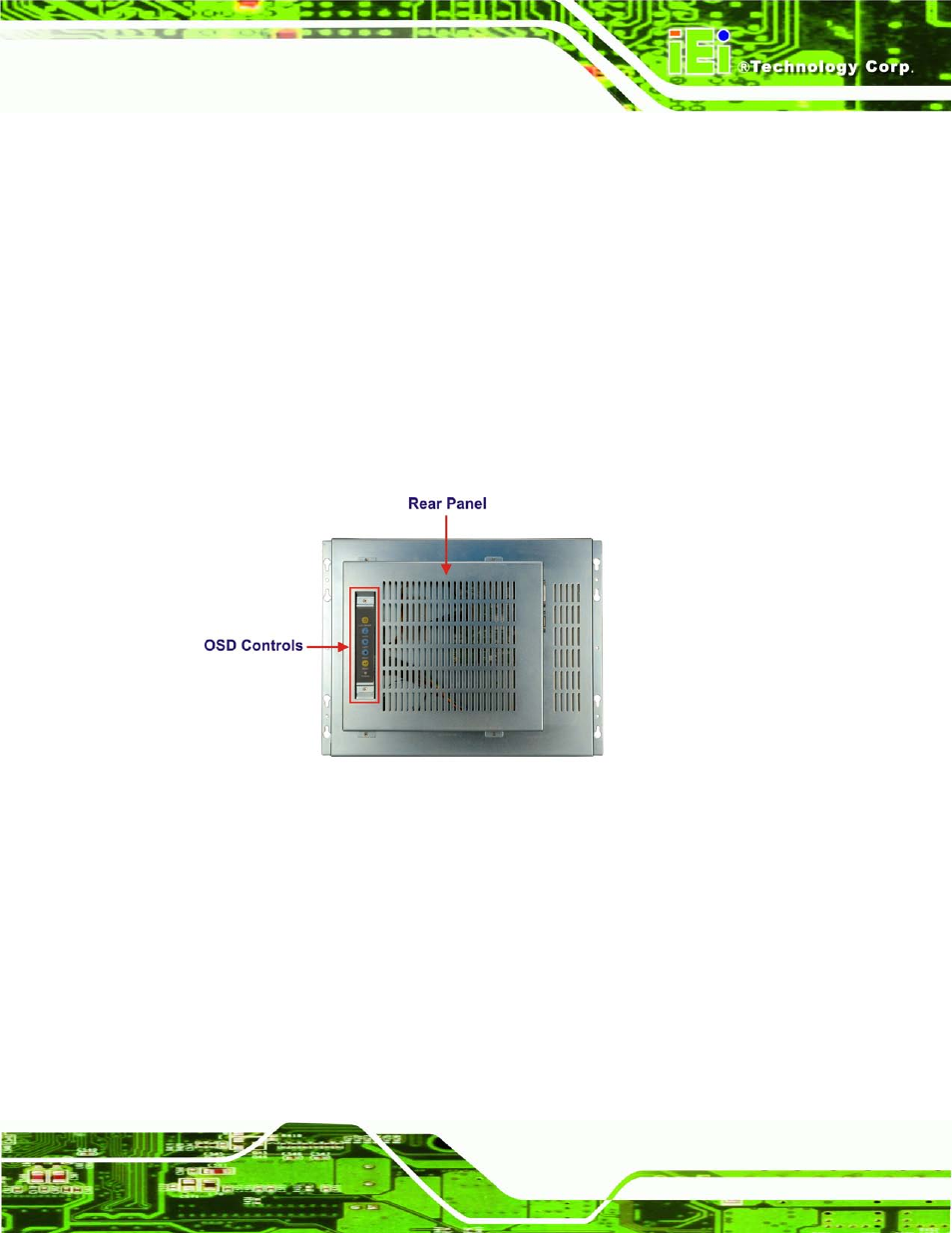

Figure 2-1 shows the location of the rear panel OSD controls.
Figure 2-1: Rear Panel
2.3 Co n n e c to r P a n e l
All external peripheral interface connectors are located on the rear panel of the LCD-KIT
series LCD monitor. The following sections describe the rear panel variants and their
associated connectors.
2.3.1 Ava ila b le Co n n e c to rs
There are a number of rear panel peripheral device connectors available for the LCD-KIT
series LCD monitor.
