Page 20: Figure 2-2: lcd-kit150g, Physical dimensions (millimeters)
LCD-KIT
P a g e 11
2.4.2 LCD-KIT150G P h ys ic a l Dim e n s io n s
The physical dimensions of the LCD-KIT150G are shown in Figure 2-2.

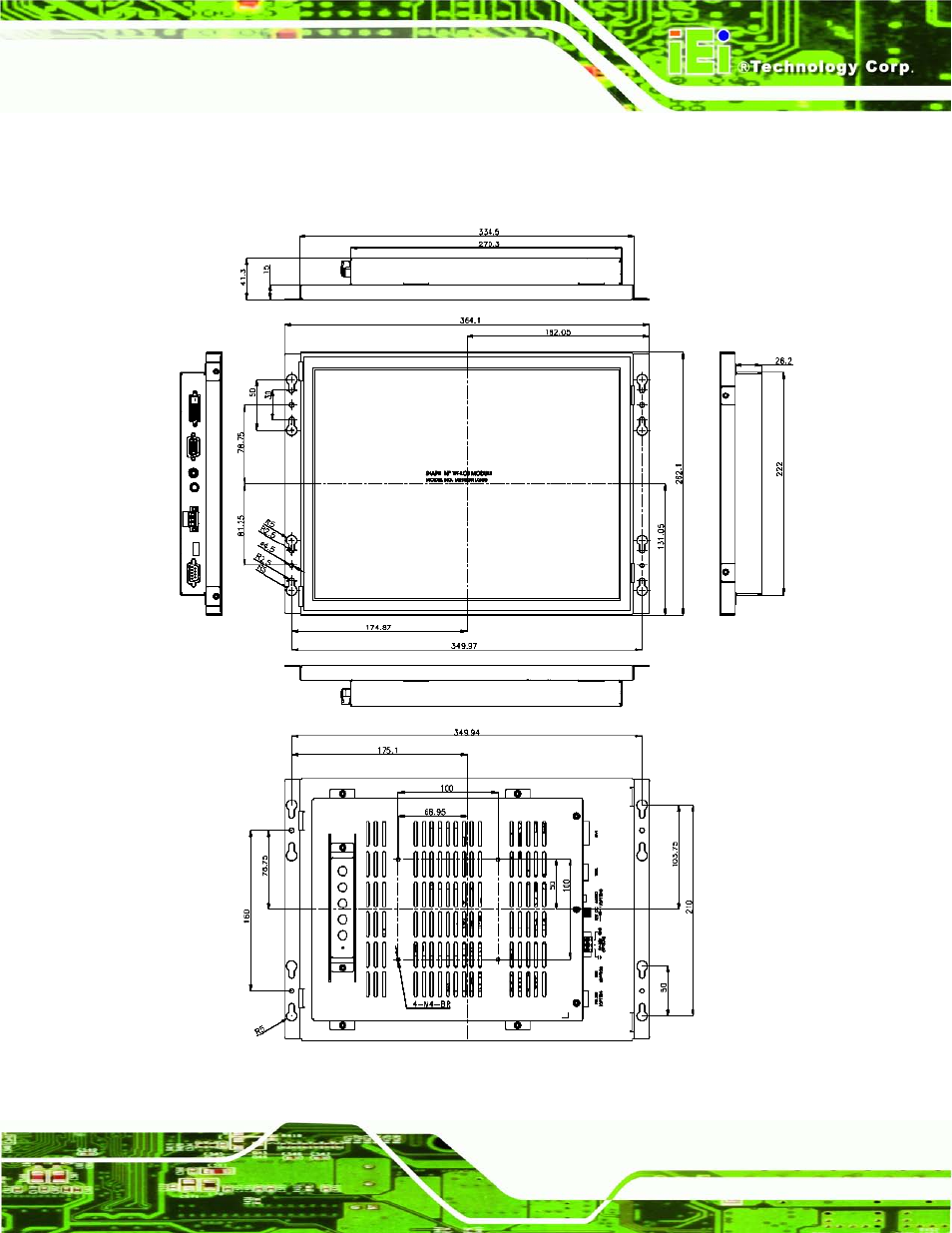

Figure 2-2: LCD-KIT150G Physical Dimensions (millimeters)
