LCD-KIT
P a g e 4

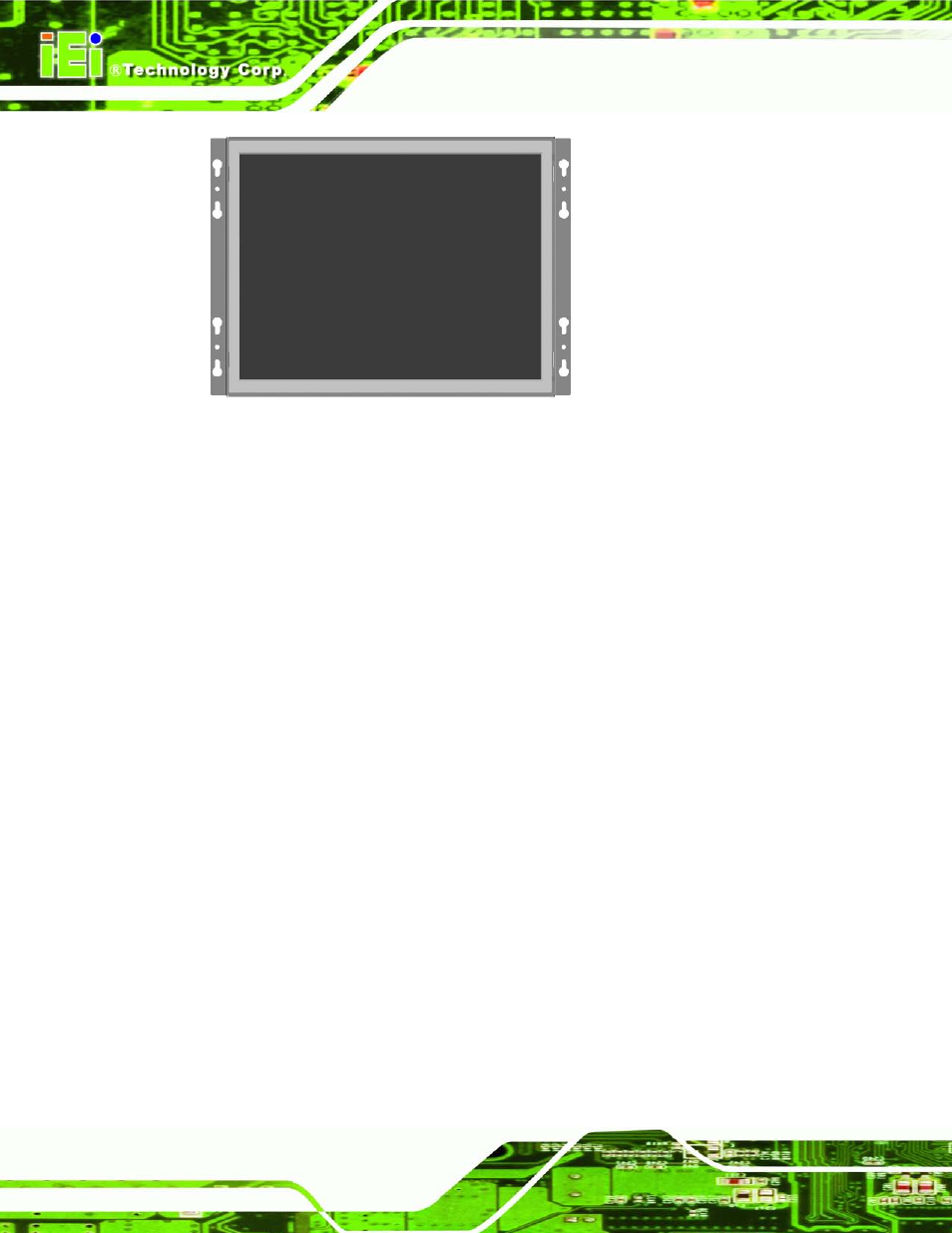

Figure 1-2: Typical LCD-KIT Front View
1.5.2 Re a r Vie w
The rear of the LCD-KIT series LCD monitor is a metal chassis. An on screen display
(OSD) control button panel, if present, is located vertically on the left side of the chassis
with the following control buttons:
 LCD On/Off
 Auto
 Left
 Right
 Menu
The OSD panel also has one power LED.
Figure 1-3 shows a typical LCD-KIT rear panel.
