1.3.3 AFL-10A-N26 Dimensions
The AFL-10A-N26 dimensions are shown in Figure 1-10 and listed below.
Width: 276.0
mm
Height: 222.0
mm
Depth: 51.50
mm

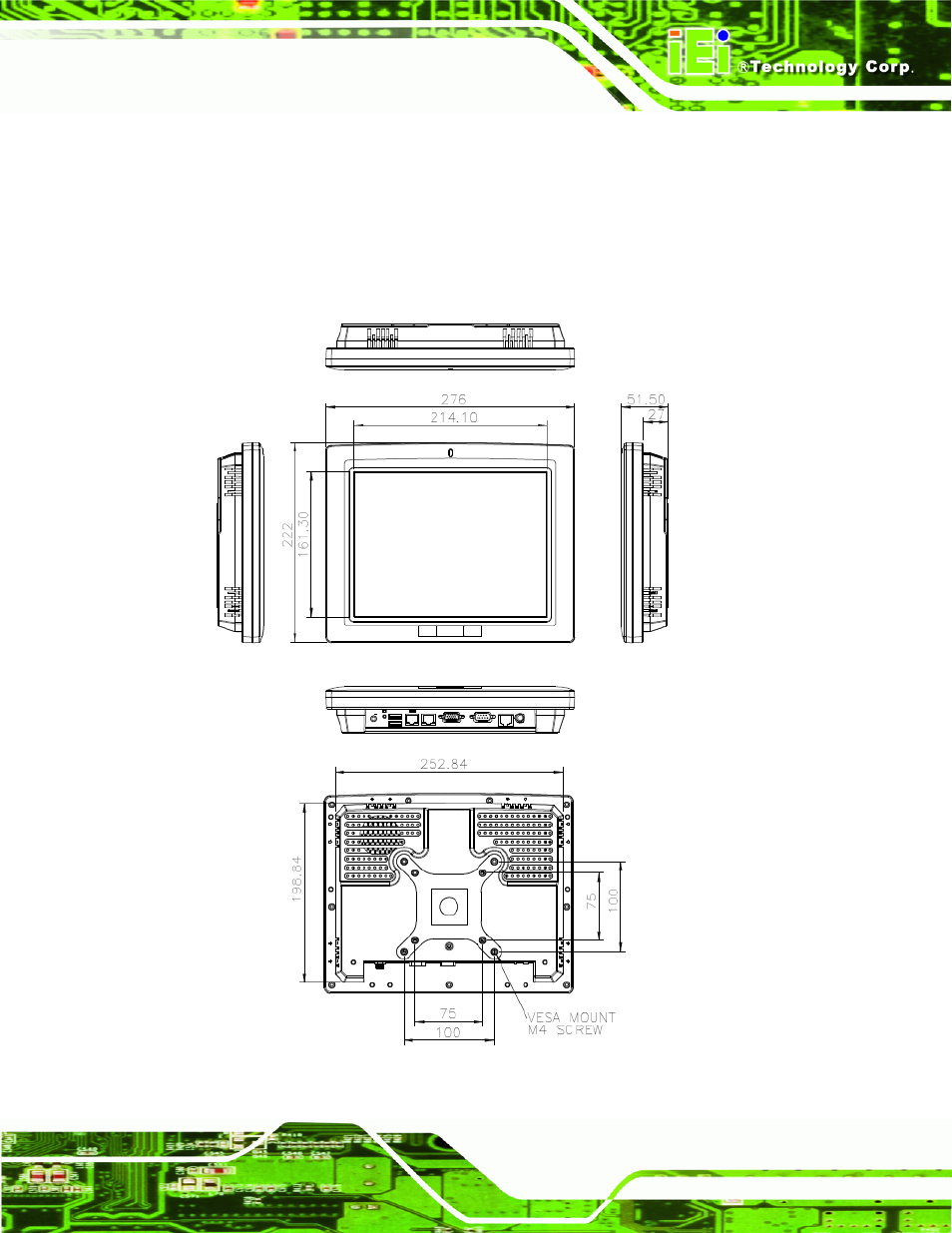

Figure 1-10: AFL-10A-N26 Dimensions (mm)
