3.9 PCIe Expansion Card Installation (Optional)
NOTE:

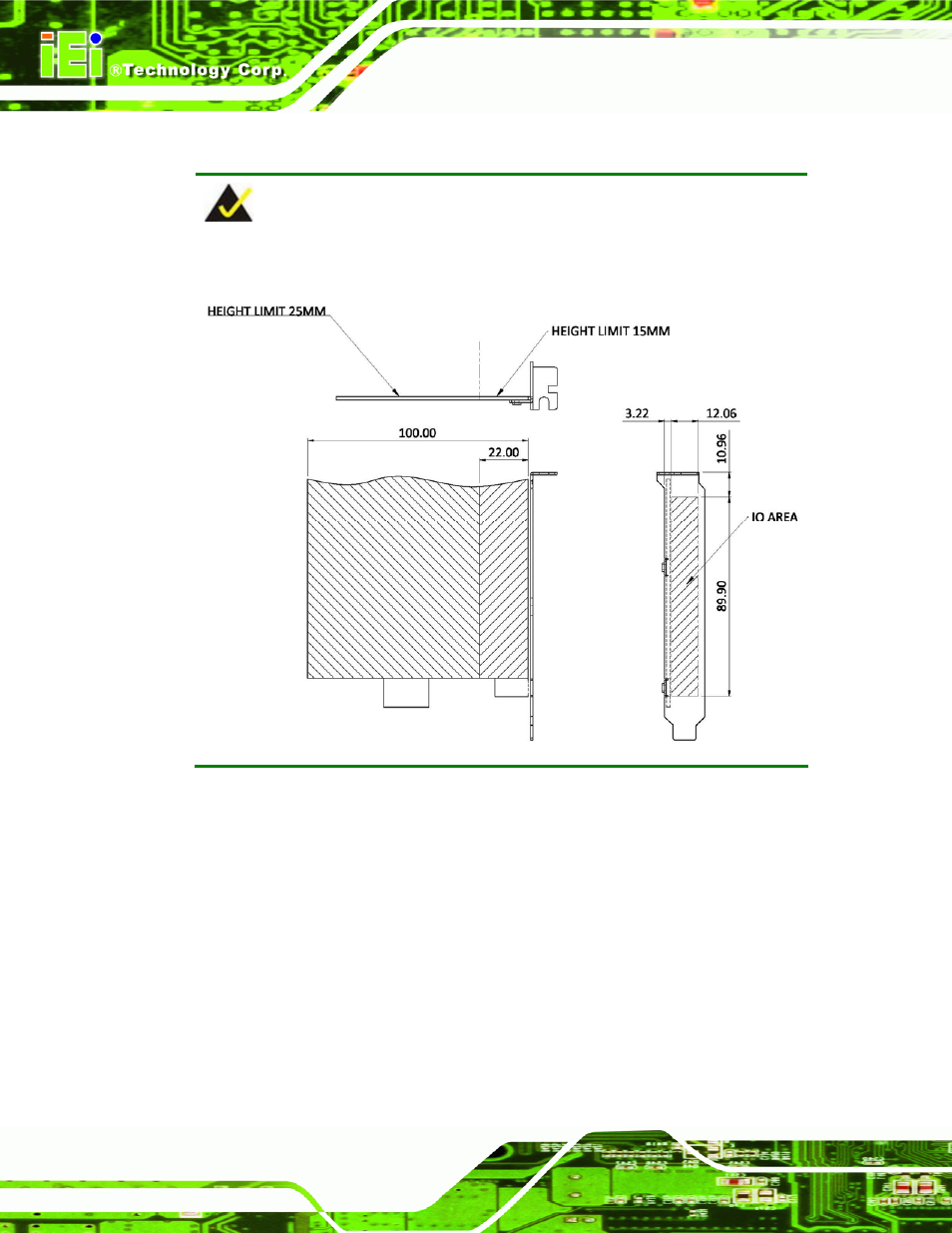

The expansion card cannot exceed the dimensions shown below.
To install a PCIe expansion card, please do the following.
Step 1: Remove the back cover . See Section
7
3.5 .
Step 2: Install the PCIe riser card . Insert the PCIe riser card into the PCI slot and PCIe
x4 slot on the motherboard of the system. Secure the PCIe riser card to the
system with two retention screws.
