UP C-V315-QM77 P a n e l P C

P a g e 5

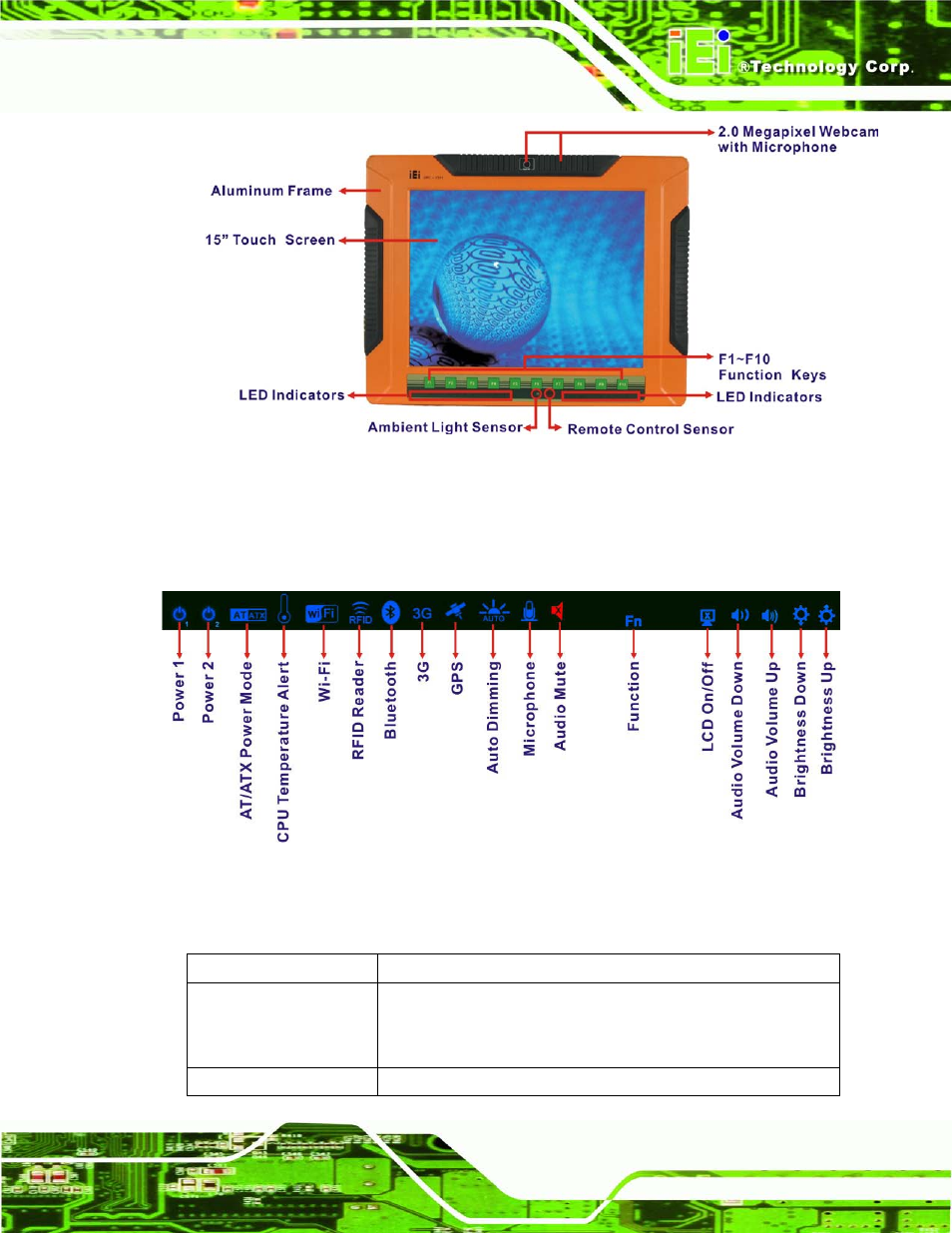

Figure 1-2: Front View

1.4.1.1 LED In d ic a to rs

The LED indicators on the front panel of the UPC-V315-QM77 are shown below.

Figure 1-3: LED Indicators

The descriptions of each LED indicator are listed below.

LED Indicator

Description

Power 1

Pulsing Orange: Power 1 is the main power and is in standby mode

Solid Orange: Power 1 is the second power and is in standby mode

Solid Blue: Power 1 is providing power to the system

Power 2

Pulsing Orange: Power 2 is the main power and is in standby mode
