5-14
ANA-5910/5930/5940 User’s Guide
ANA-5910/5930/5940 User’s Guide
Stock Number: 510694-00, Rev. C
Page: 5-14
Print Spec Number: 493081-00
Current Date: 5/28/97
ECN Date: 05/29/97

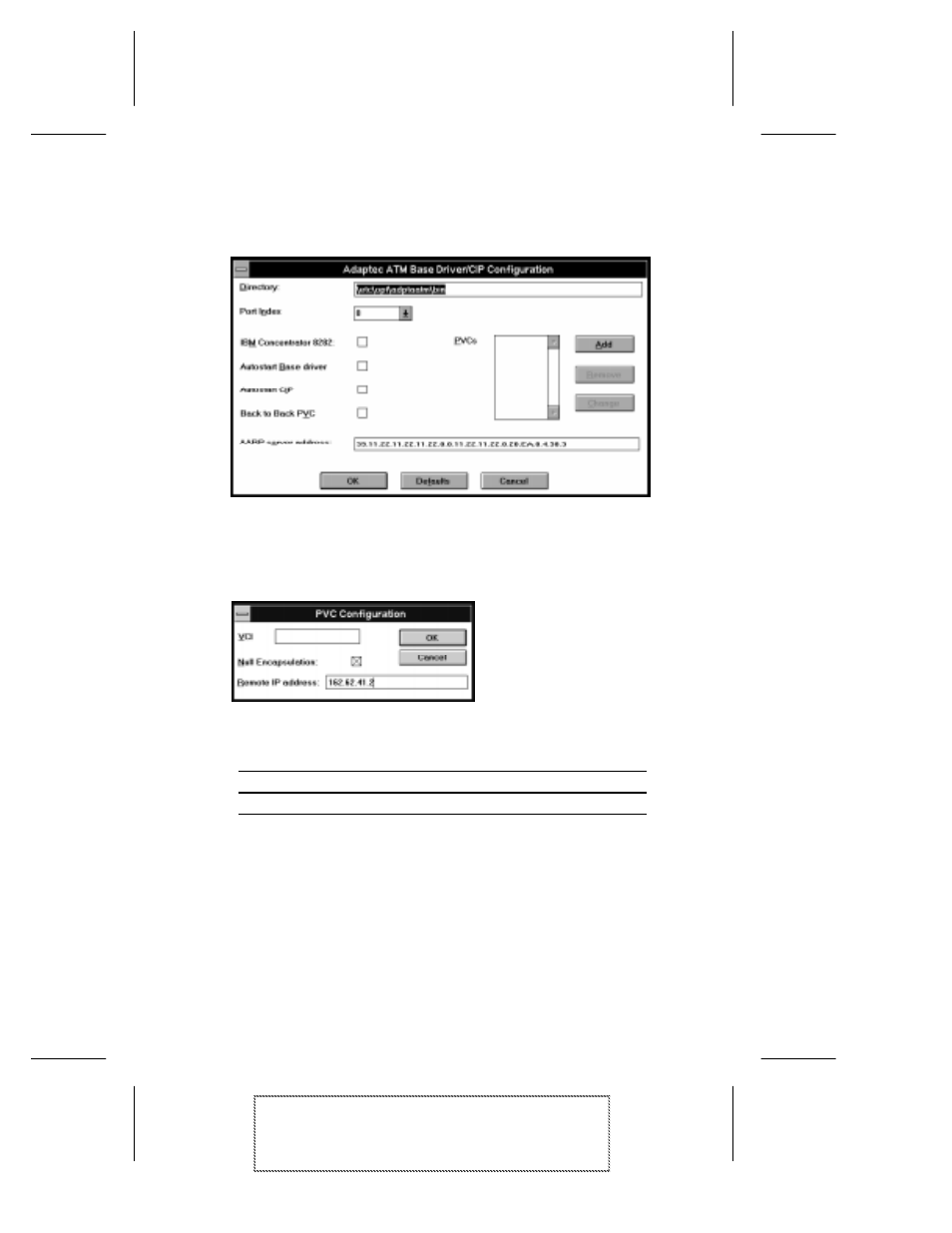

The Adaptec ATM Base Driver/CIP Configuration dialog box
appears.
8 Add PVCs as follows:
Select Add next to the PVCs list box. The PVC Configuration
dialog box appears.
Set the parameters in the dialog box as follows, and select OK:
Parameter Setting
VCI Type a number from 32 to 1023.
