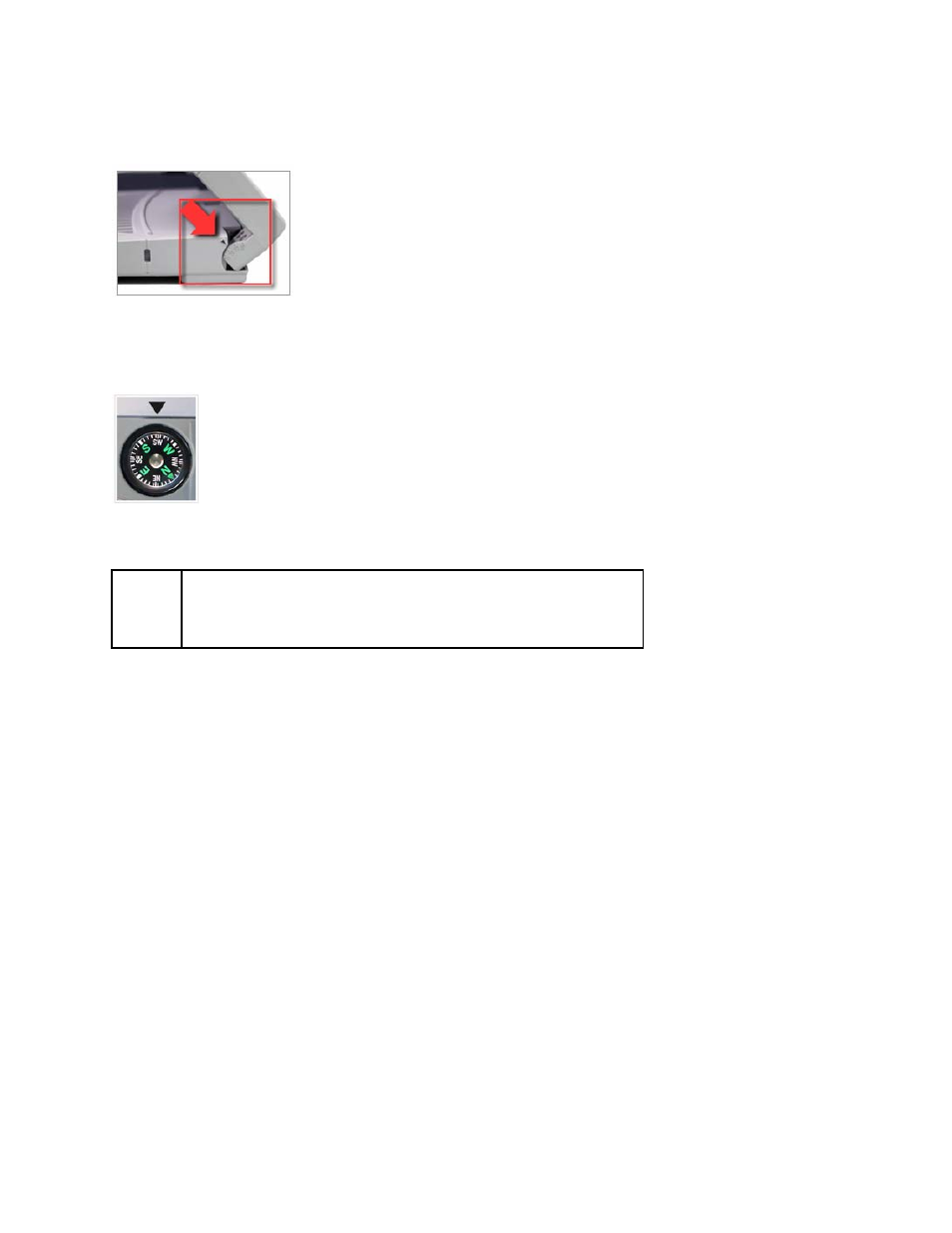

S ATELLITE IP M ODEM A NTENNA P ROTRACTOR
When you are positioning the antenna
during the Antenna Pointing process, the
protractor provides the current angle of the
antenna so that you can adjust it to the
Antenna Angle specified on the pointing
screen.
C OMPASS
Reference the compass during the Antenna Pointing
process to get the correct Compass Direction needed
for the antenna. The illustration shows an example of a
South-West orientation.
;
Note
The compass can be affected when close to magnetic fields
or metallic objects.
