September 1, 2008 Page 49 Quadra-Fire · Sapphire · 250-7233H
D.
Service Parts List
R
SAPPHIRE

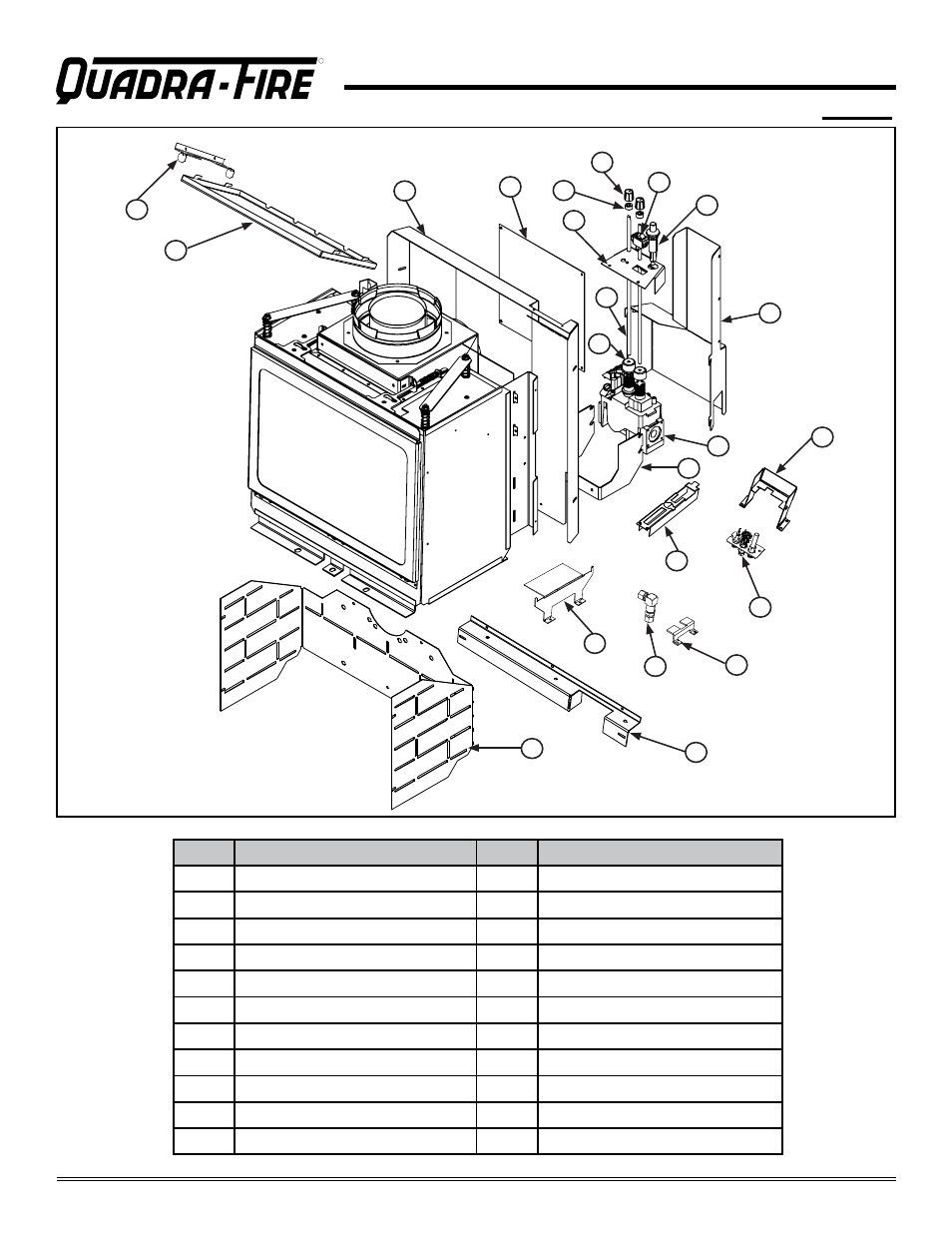

(NG, LP) Exploded Parts Diagram
Beginning Manufacturing Date: 4-24-02
Ending Manufacturing Date:
Item # Description Item # Description
1 Refractory, Metal 12 Igniter, Piezo
2 Log Support, Rear 13 Switch, Rocker, ON/OFF
3 Burner Support 14 Knob, Rheostat
4 Bulkhead 15 Set Collar, 1/4 in.
5 Bulkhead Stop 16 Switch Plate
6 Pilot Assembly 17 Control Rod
7 Burner Pan, Side 18 Adapter, Valve Extension
8 Pilot Bracket 19 Back Shield Cover Plate
9 Valve Bracket 20 Back Shield
10 Valve, Gas 21 Baffle Hanger
11 Valve Cover 22 Baffle
6
9
10
3
1
2
4
12
5
11
14
13
18
15
17
20
21
22
19
7
8
16
