Page 32 September 1, 2008 Quadra-Fire · Sapphire · 250-7233H

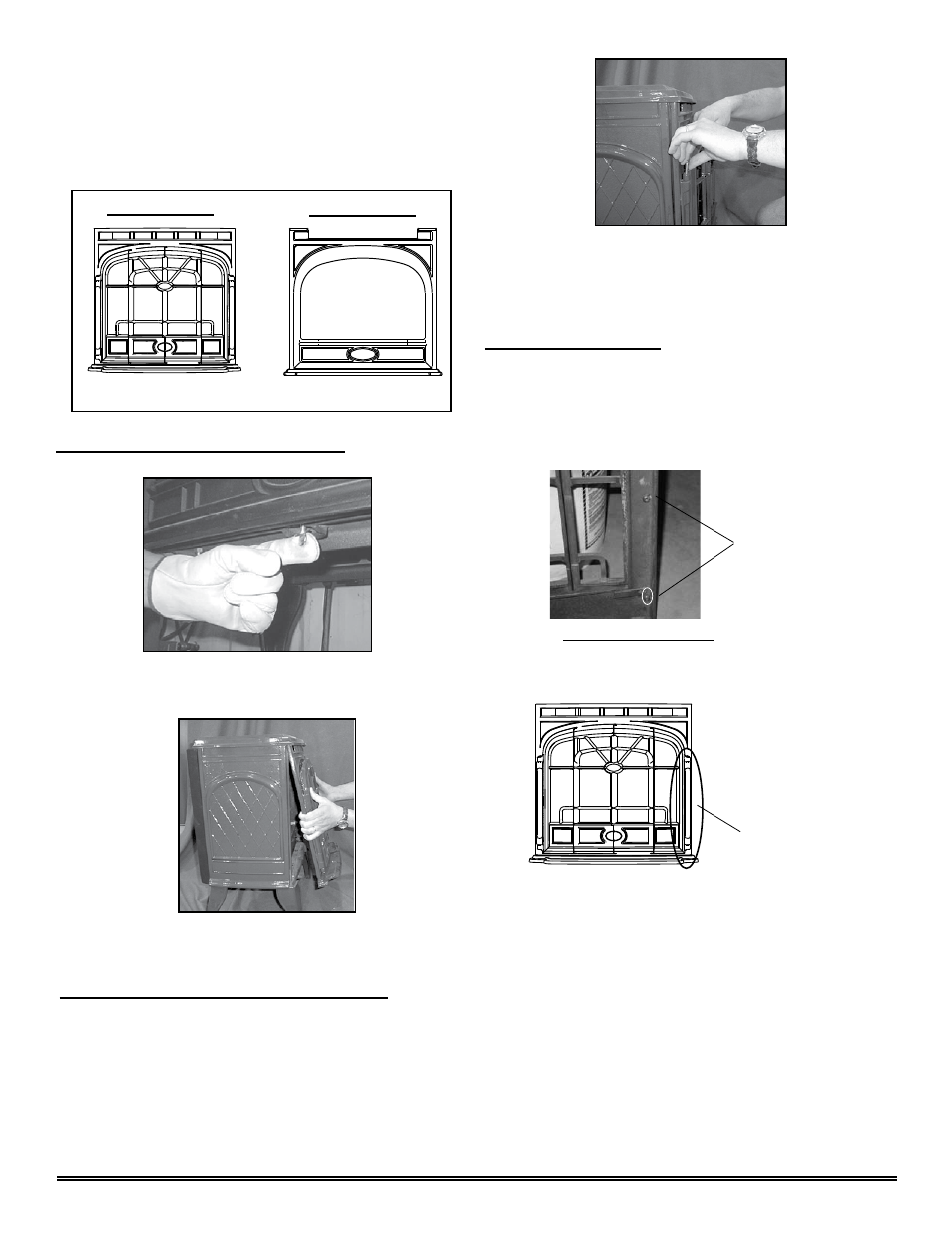

E. Front Installation
Figure 8.13 To remove the face, loosen the thumb bolt beneath
the ashlip.
Figure 8.14 Lift up on the top of the Front, gently pulling out
on the bottom. Set aside in a safe location.
For BOTH Quartet and Solitaire Fronts:
INSTALLATION AND REMOVAL INSTRUCTIONS FOR
QUARTET AND SOLITAIRE FACE OPTIONS.
Instructions continue for Quartet Front only:
Doors ship attached to the face. If they have been removed,
follow instructions below.
Install one door at a time. Slide the bottom hinge rod into the
lower hinge box hole on the face.
Figure 8.15 Place a washer on the top of the door hinge. Line
up the hole in the door hinge and the washer with the hole in
the hinge box of the face. Place a gold-plated hinge pin in
the hole to secure.
Solitaire Front Quartet Front
Allen head bolts
on back of Quartet
Face - 2 per side.
Hinge Bar-make
adjustment right
or left.
Quartet Door Alignment
Doors are properly aligned at the point of manufacture.
However, the possibility exists for them to become out of
alignment during shipping. To correct this occurance, follow
the instructions below.
Figure 8.16 Back of Quartet Face: Locate the two Allen head
bolts connecting the hinge bar to the face. The hinge bar can
be adjusted left or right.
Figure 8.17 Use a 5/32 in. Allen head wrench and loosen the
Allen head bolts. Make necessary adjustment (move hinge to
right or left, for proper fit and operation of doors, and retighten
Allen bolts.
Fronts are shipped attached to the face.
Figure 8.12
