Page 28 September 1, 2008 Quadra-Fire · Sapphire · 250-7233H

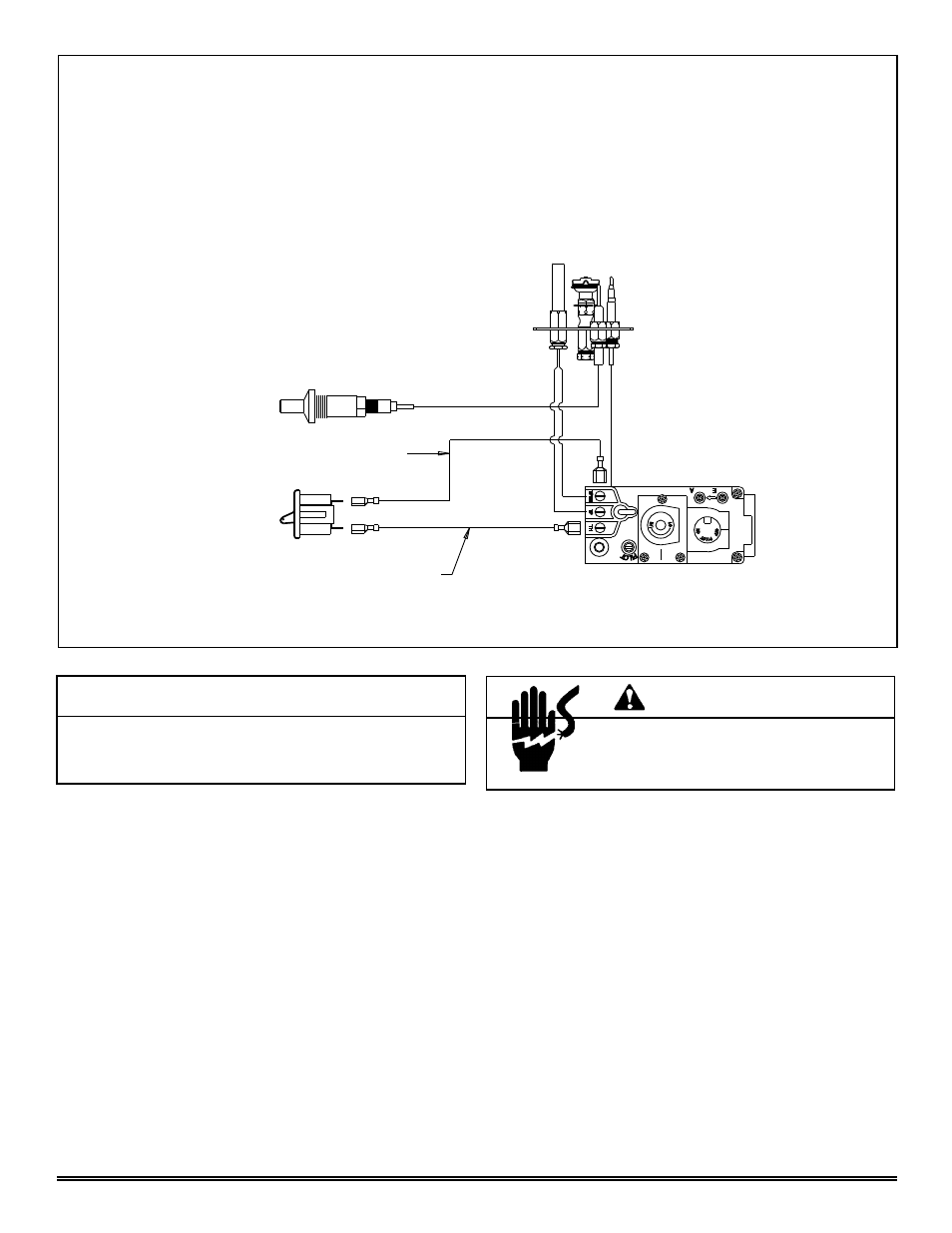

Figure 7.1
CAUTION
Label all wires prior to disconnection when servicing controls.
Wiring errors can cause improper and dangerous operation.
Verify proper operation after servicing.
Shock hazard.
• Replace damaged wire with type 105
O C
rated wire.
• Wire must have high temperature insulation.
CAUTION
Red 28 in. (711mm)
Ignitor
Switch
ON/OFF
Thermopile
Gas Pilot Ignitor
Thermocouple
Valve
Red 28 in. (711mm)
