4. Existing Masonry Chimney
Type A - Up & Out Installations for Top Vent
Configurations

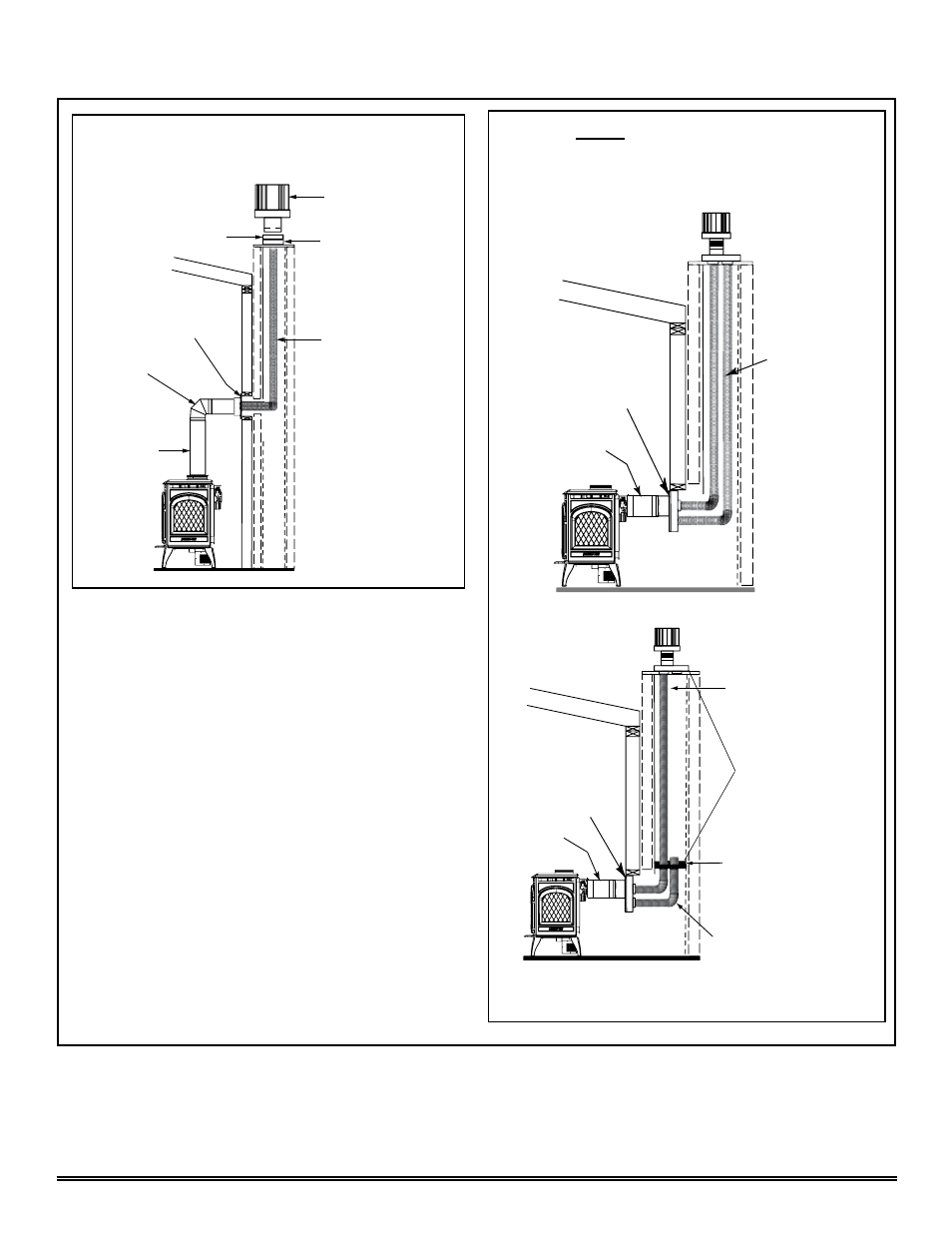

Figure 5.23
Type B - Hearth Rear Vent Installations for Use
With Rear Vent Kit (see Section 12 for conversion kit
and venting components.)
Termination Cap
Flashing
4 in. (102mm) Flex Liner
Top Adapter
Retro Connector
90º Elbow
Direct Vent Pipe
Chimney Liner
Termination Cap
Co-Axial to
Co-Linear
Connector
3 in. (76mm)
Flex Liner
Pipe Length
Optional
Showing two
30 ft. (9m)
Sections of
Flex Liner
Chimney Liner
Termination Cap
Co-Axial to Co-Linear
Connector
30 ft. (9m) of 3 in.
(76mm) Flex Liner
Exhaust Section
Pipe Length
Optional
4 ft. (1m) of 3 in. (76mm)
Flex Liner
Air Intake Section
The chimney must be
sealed from the 4 ft. (1m)
section to termination
using a smoke shelf or a
damper*.
The seal should be 6 in.
(152mm) below the end of
the 4 ft. (1m) Air Intake
section.
This section of the
chimney MUST be
sealed
*In the Commonwealth of Massachusetts, the word damper shall be
replaced with the words flue restrictor.
