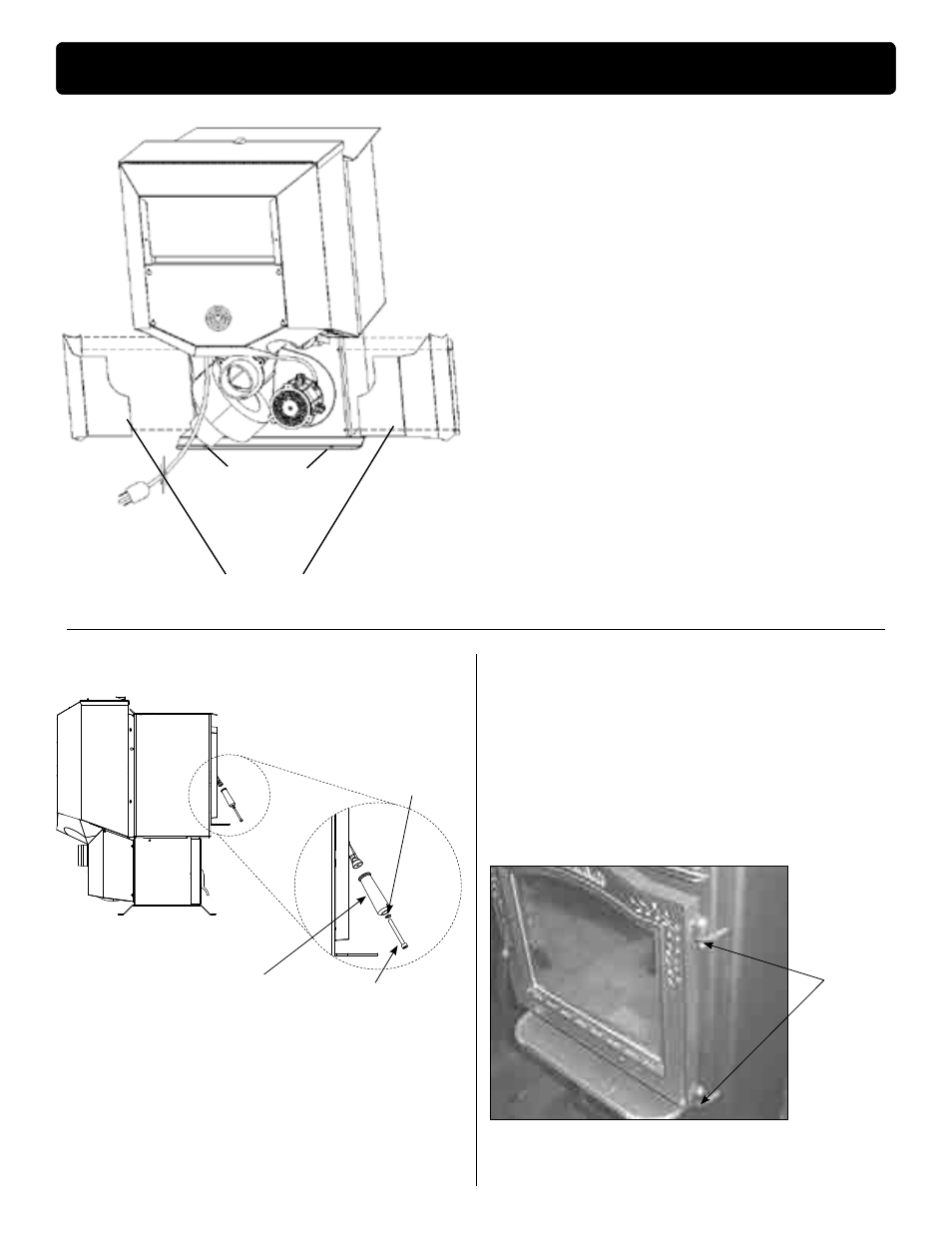

5 P68 Pellet Stove 3-90-00688R24_06/13
assembly and installation
unpacking
The P68 is bolted (1/4 x 1" hex head bolts) to the skid to
prevent movement during shipping.
To free the stove from the skid you must remove the hold-
down bolts in the rear of the pedestal base.
rear cover panels
The rear cover panels need removed from the stove to make
it easier to get at the hold-down bolts.
The rear cover panels must be reinstalled once the installation
is complete. These panels are to gaurd from contact with
hot and moving parts. To reduce the risk of electric shock,
disconnect power before removing the rear covers.
Firebrick
Install the firebrick vertically on the angle bracket above the
burnpot.
Flame guide
Install the cast iron flame guide on top of the burn pot. Make
sure that the flame guide is fully seated on the vertical sides
of the burn pot and that the back of the guide rests against
the body of the stove.
install eXhaust vent at clearances sPeciFied
bY the venting ManuFacturer. Most pellet vent
requires a minimum of 3" of clearance to combustible
materials.
Spring Washer
1. Remove wood handle, spring washer, and socket head
cap screw ¼-20 x 2-1/4" from hardware pack.
2. Install spring washer and wood handle onto socket head
cap screw as shown in fig. 2 and thread onto latch on front
door.
3. Tighten using a 3/16" hex key wrench.
Wood Handle
1/4-20 x 2-1/4
socket- head screw
door handle installation
Fig. 2
Rear Cover
Panels
Shipping Bolts
Note: These same holes
are used for securing the
stove in mobile home
installation.
Fig. 1
door hinge retainers:
There are two 3/8” retainer clips that are in the hardware
pack sent with the stove. They are to be installed onto the
load door hinge pins after the trim has been installed and
the door is mounted onto the stove body and ready for use.
To remove the load door for any service or to change the trim,
the retainer clips must be removed and may be damaged.
Replacements can be ordered through your Harman Dealer
(Part #3-31-94807031) or a 3/8” retainer clip may be
purchased at your local hardware store.
the 3/8" retainer
clips will go on
each hinge pin,
below the hinge.
