22 P68 Pellet Stove 3-90-00688R24_06/13
scraping the burn pot:
Whenever adding fuel to the hopper, take the time and
scrape the grate surface of the burnpot, using the scraper tool
provided. This can be done while a fire is burning. Wearing
heat resistant gloves, open the firebox door. Scrape any
accumulated ashes from in front of the fire, into the ash pan.
Now, scrape under the fire, in a downward direction, to loosen
any carbon deposits. Do not scrape the fire out of the pot.
Whatever you loosen will be pushed out with the flow of new
fuel into the pot. (Fig.33)
removing ashes: After approximately 1 ton of pellets has
been burned, it will be necessary to empty the ash pan.
disposal of ashes- ashes should be placed in a steel
container with a tight fitting lid. The closed container
of ashes should be moved outdoors immediately and
placed on a noncombustible floor or on the ground,
well away from all combustible materials, pending final
disposal. if ashes are disposed of by burial in soil or
otherwise locally dispersed, they should be retained in
the closed container until all cinders have thoroughly
cooled. other waste shall not be placed in this container.
It is recommended that the stove is cold and shut down when
removing ash pan.
1. Pull on latch handle and remove ash pan. Use ash pan
handle to carry and dispose of ashes.
2. Slide the ash pan back into the stove and latch the door
by pushing down on the latch handle.
cleaning:
The stove should be shut-down and thoroughly cleaned after
each ton of pellets consumed. The cleaner the stove, the
more efficient it will be.
note: Fuel with higher ash and moisture content will require
more frequent cleanings.
1. Shut down stove and
disconnect power cord to insure
that all motors are stopped.
2. Clean heat exchanger with scraper as shown in fig 27.
3. Brush or scrape the inside of the stove to remove fly ash.
4. Scrape burnpot with flat end of scraper provided with the
stove. Inspect the holes on the burnpot surface. See Fig.
33.
Maintenance
Combustion
Blower Cover
Blower Cover
Latch
Fig 26
Whenever wood is burned, there is a potential for creosote
formation. The venting system should be inspected
periodically during the heating season to determine if a
creosote buildup has occurred. If a significant layer of
creosote has accumulated (3 mm or more), it should be
removed to reduce the risk of a chimney or venting system
fire.
Warning
the eXhaust venting sYsteM, chiMneY, and
connector Must be Maintained in good
condition and KePt clean.

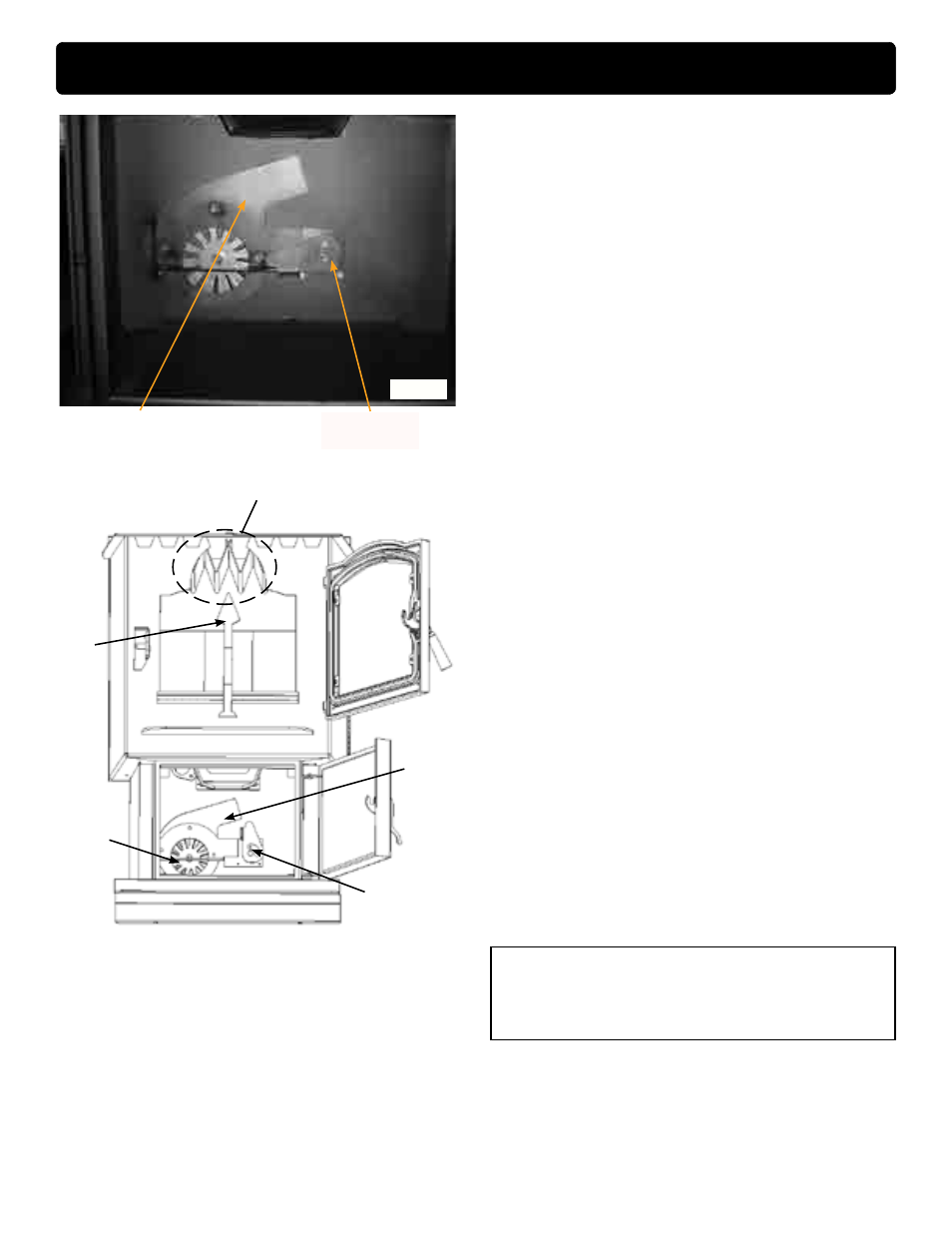

Scraper
Blower Cover
Latch
Blower
Wheel
Flue
Outlet
Heat Exchanger Fins
Fig 27
