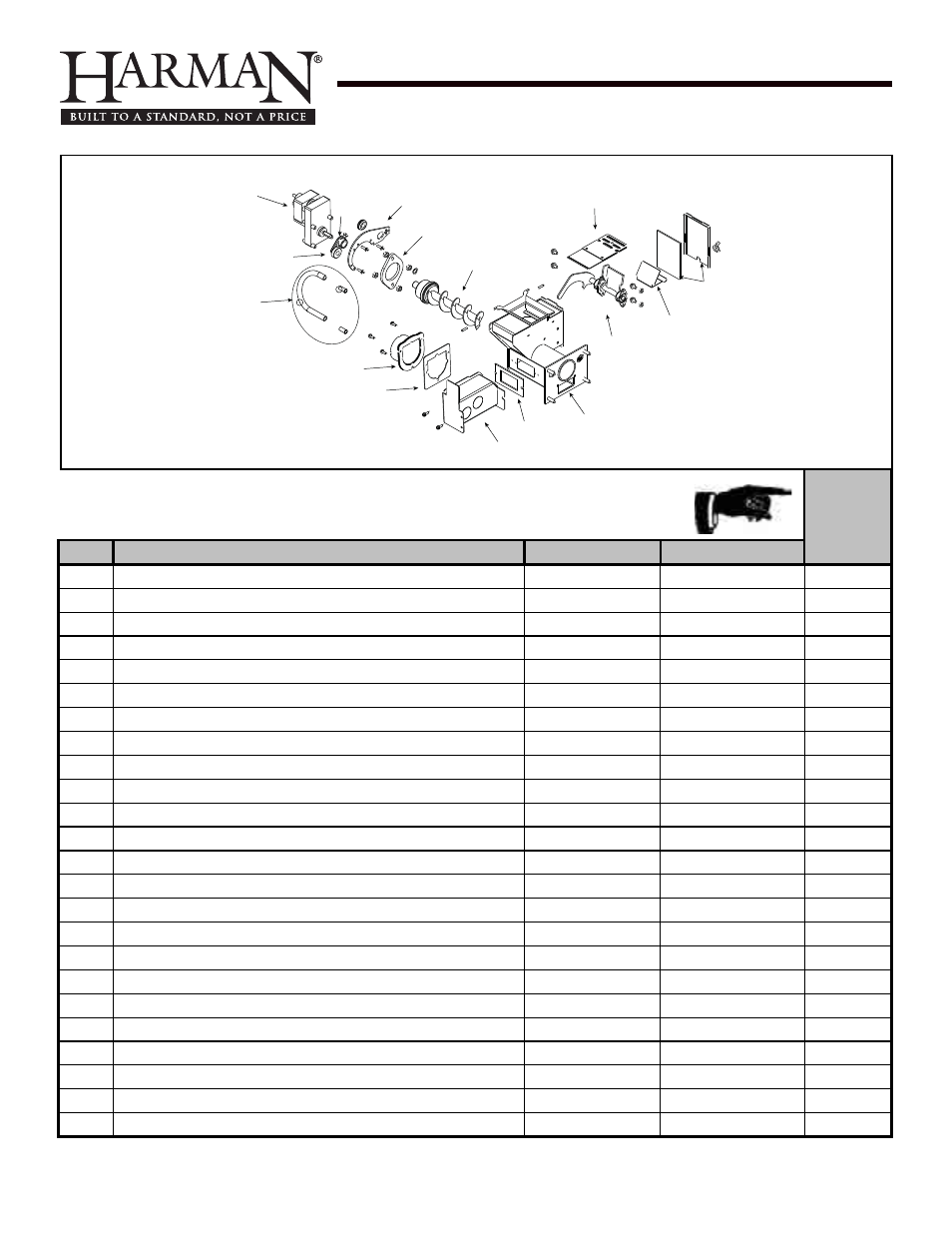

P68 Pellet
beginning Manufacturing date: n/a
ending Manufacturing date: active
IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement
parts for your appliance please provide model number and serial number. All parts listed
in this manual may be ordered from an authorized dealer.
stocked
at depot
iteM description coMMents Part nuMber
3 Feeder Assembly Post 008280309 1-10-07906A
3.1 Pellet Feeder Gear Motor, 6RPM 3-20-09302 Y
Gear Motor Fan Blade Pkg of 3 3-20-09302-3 Y
3.2 UL Feeder Cam 3-31-3014 Y
3.3 Feeder Air Crossover Kit 1-00-67900 Y
9MM Silicone Tube 5 Ft 1-00-511427 Y
3.4 Pellet Air Intake Assembly 1-10-06810A
3.5 Gasket Feeder Air Intake Pkg of 6 3-44-72224-6 Y
3.6 UL Feeder Air Intake 1-10-72228
3.7 Gasket Ultra Air Intake Pkg of 10 3-44-677160-10 Y
3.8 Ultra Feeder Weldment 1-10-724132 Y
3.9 UL Feeder Pusher Arm 1-10-677187W Y
3.10 Fines Defl ector no longer available 2-00-677138-10
3.11 Gasket, UL Feeder Cover 1-00-677122 Y
3.12 Slide Plate Assembly 1-10-677121A Y
3.13 UL Feeder Auger Assembly 3-50-00565 Y
3.14 Bearing Flange w/Hardware 1-00-04035 Y
3.15 UL Feeder Gear Motor Bracket w/Grommet 1-00-247406 Y
3.16 UL Feeder Cam Block 3-00-677154 Y
Gasket, Hopper Throat 3-44-677185 Y
Hopper Switch Feeder Fitting Pkg of 2 1-00-142818 Y
Motor Bracket Grommet Pkg of 12 3-31-2761-12
Pillow Block Pkg of 4 3-31-3614087-4 Y
Silicone Tubing, 1/8" 5 Ft 1-00-5113574 Y
Additional service parts on following page.
