16 P68 Pellet Stove 3-90-00688R24_06/13
autoMatic start uP
helpful hints
1. Fines are small pieces of broken pellets (sawdust). Fines do not
flow easily and often build up on the hopper funnel bottom angles.
You can push these fines into the feeder opening and then fill the
hopper with pellets. As the system works, they will be burned. Or
you can clean them out before filling the hopper.
2. The "TEST" cycle will operate the feeder motor for exactly one
minute. Turning to "TEST" again and again may purge too much
fuel into the burn pot causing excessive smoke on start-up.
3. The firebox low pressure switch will not allow the auger motor
or the igniter element to operate if the view door or the ash pan
door are open.
4. Adjust Feed Rate. If this is your first fire or you are trying different
pellets, set the feed adjuster to #4, Fig. 17. This is a conservative
number and will probably need to be increased. After you know a
feed rate setting that works well, use that setting. Remember, if your
feed rate is too high you may waste fuel.
5. This is usually a weekly maintenance procedure. Cleaning the
burn pot with the scraper with a small amount of new fuel in the
bottom is not a problem. First, scrape the ashes on the front of the
burn pot into the ash pan. Then, scrape the top surface of the burn
pot downward into the base of the burn pot. When the stove is
ignited these scrapings will be pushed out by the feeder and burned.
6. The ash pan can hold the ashes from approximately 1 ton of
premium fuel. This means the ashes will only need to be emptied
a few times a year.
7. Setting the feed adjuster # for maximum burn: With the unit
burning in "AUTO", turn to "Stove Mode" and put the fan on "H".
Set the Temperature Dial to #7. Allow the unit to burn for about 30
minutes and check ash on front of burn pot. Fig. 18. If the ash line
is larger than 1", turn the feed adjuster from #4 to #5. Allow another
30 minutes of burn time and check again. If , at #6 setting, a 1" or
less ash bed is not obtainable, it is not a problem. The 1" ash bed
is only at maximum burn rate and at most normal settings the ash
bed will be larger.

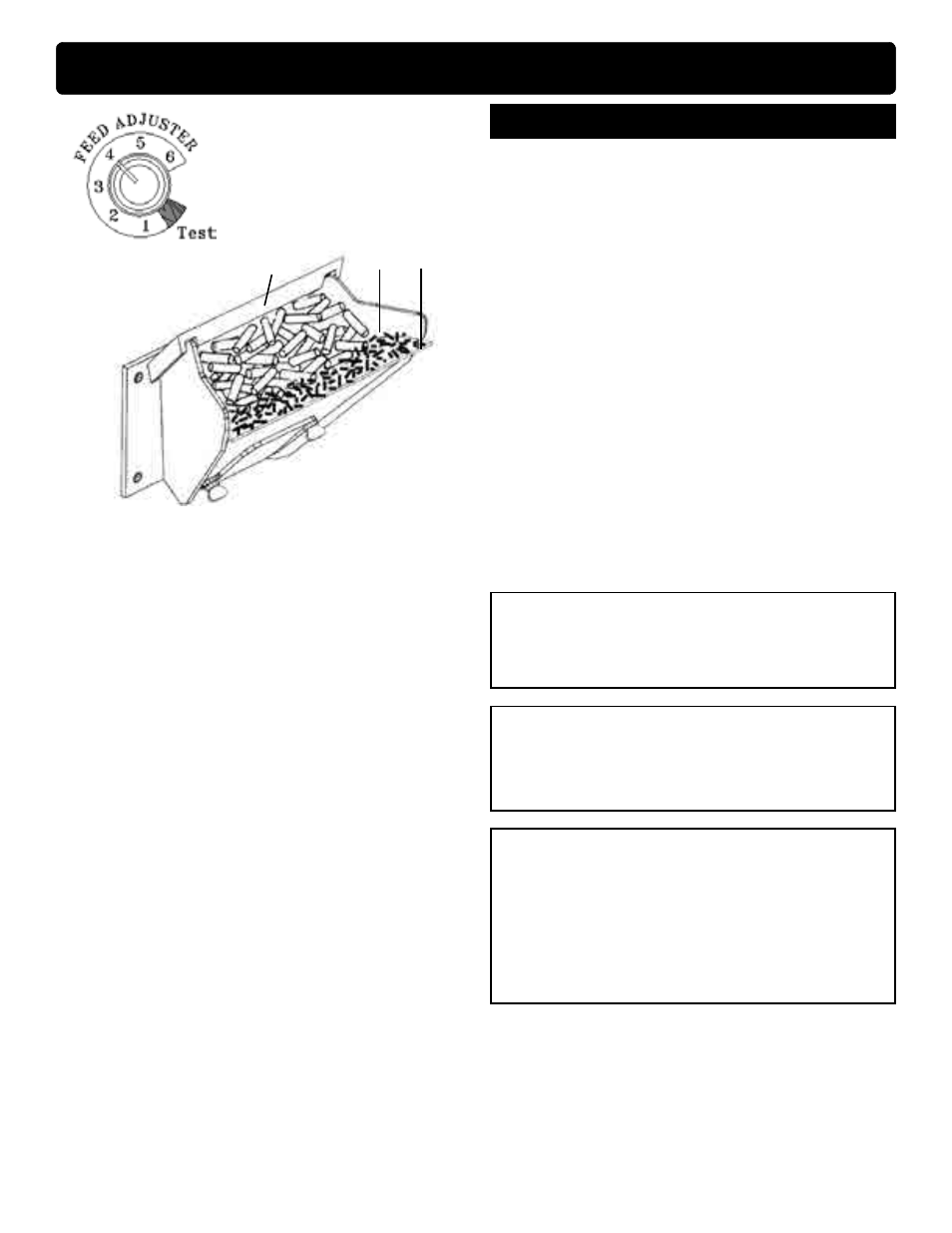

Fig. 17
SeeHint #7.
Fig. 18
1"
Flame Guide
igniter switch to "auto" (up position)
Make sure the unit is plugged into a 120 VAC, 60 HZ electrical
source. The power light should be the only light lit.
to avoid unwanted smoke, be sure there is no fuel or
combustibles in the ash pan prior to lighting.
1.
turn Mode selector to "oFF".
2. Fill hopper with pellets.
3. clean burn pot with scraper, if necessary.
4. if starting after an empty hopper, turn Feed adjuster
to "test" (for one 60 second cycle). This will feed pellets
into the auger tube and also allow you to check the motors
for operation. note: the auger motor will not operate
with the view door or ash pan door open.
5. turn Feed adjuster to #4.
6. Flip the igniter switch up into the "AUTO" position.
7. turn the temperature dial to desired room temperature.
8. turn Mode selector to Room Temperature or Stove
Temperature.
9. Fill hopper with pellets and remove ashes as required.
caution
HOT WHILE IN OPERATION. KEEP CHILDREN,
CLOTHING AND FURNITURE AWAY.
CONTACT MAY CAUSE SKIN BURNS.
caution
KEEP HOPPER LID, FIRE DOOR, AND ASH DRAWER
PROPERLY CLOSED WHEN APPLIANCE IS IN
OPERATION.
caution
do not use cheMicals or Fluids to start
the Fire. For eXaMPle: never use gasoline,
gasoline-tYPe lantern Fuel, Kerosene,
charcoal lighter Fluid, or siMilar liQuids to
start or "Freshen uP" a Fire in this heater.
KeeP all such liQuids Well aWaY FroM the
heater While it is in use.
starting First Fire
