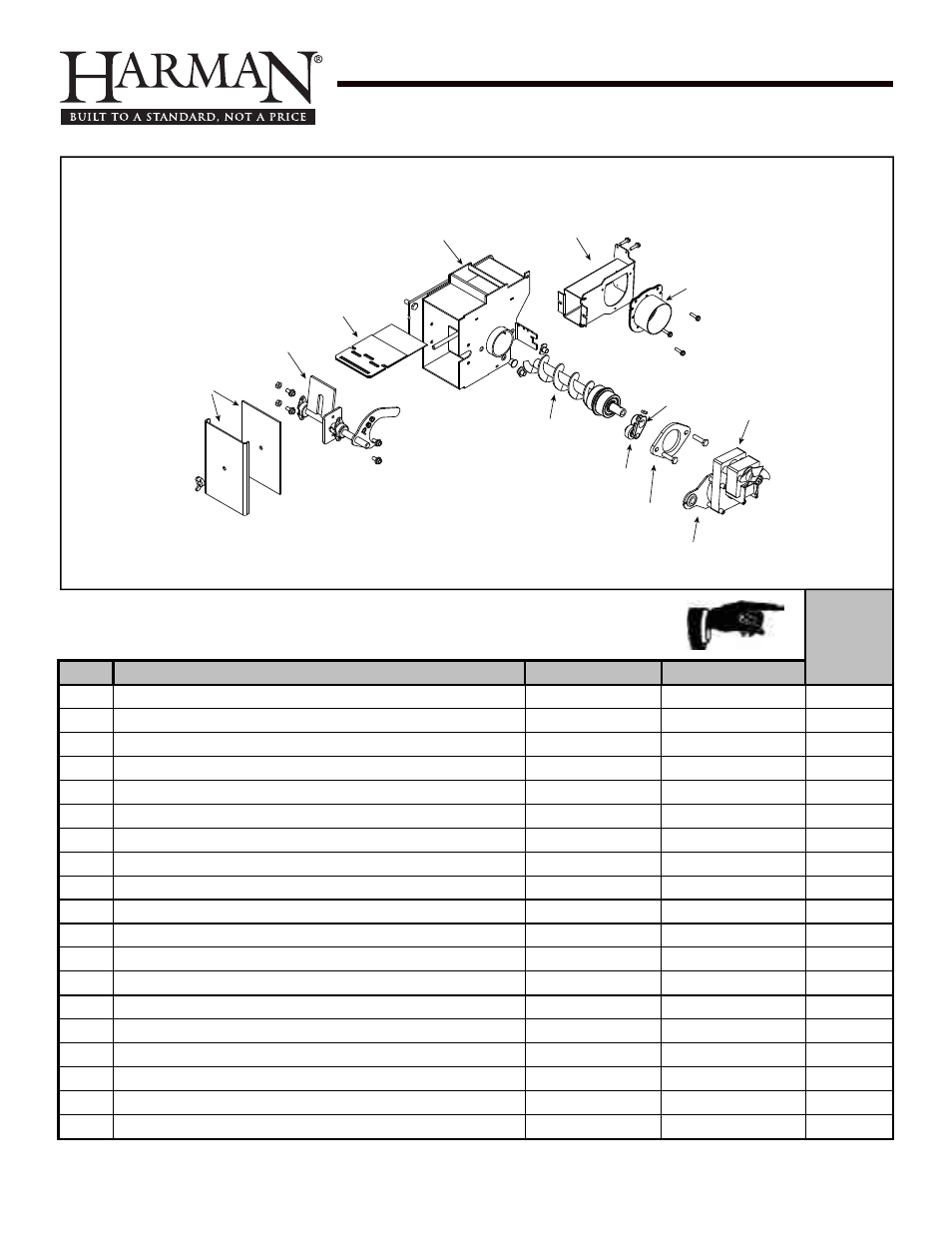

P68 Pellet
beginning Manufacturing date: n/a
ending Manufacturing date: active
#2 Pre serial number 008280309 Feeder assembly
2.3
2.4
2.5
2.6
2.7
2.8
2.9
2.10
2.11
2.12
2.1
2.2
IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement
parts for your appliance please provide model number and serial number. All parts listed
in this manual may be ordered from an authorized dealer.
stocked
at depot
iteM description coMMents Part nuMber
2 Feeder Assembly Pre 008280309 1-10-07806
2.1 Air Intake Damper Assembly 1-10-06466W
2.2 Air Intake Weldment 1-10-06461
2.3 Feeder Weldment 1-10-677150 Y
2.4 Slide Plate Assembly 1-10-08037 Y
2.5 Pusher Arm Assembly 1-10-06719 Y
2.6 Feed Cover and Gasket 2 Sets 1-00-677152 Y
2.7 Auger Assembly 3-50-00465 Y
2.8 Cam Bearing 3-31-3014 Y
2.9 Bearing Flange w/Hardware 1-00-04035 Y
2.10 Bracket, Gear Motor Pkg of 2 1-00-01534 Y
2.11 Gear Motor, 4 RPM 3-20-60906 Y
Gear Motor Fan Blade Pkg of 3 3-20-2046399-3 Y
2.12 Cast Cam Block 3-00-00153 Y
Feeder Air Crossover Kit 1-00-67900 Y
Feeder Repair Kit 1-00-677150 Y
Gasket, Feeder, Air Intake Pkg of 6 3-44-72224-6 Y
Motor Bracket Grommet Pkg of 12 3-31-2761-12
Pillow Block Pkg of 4 3-31-3614087-4 Y
Additional service parts on following page.
