24 P68 Pellet Stove 3-90-00688R24_06/13

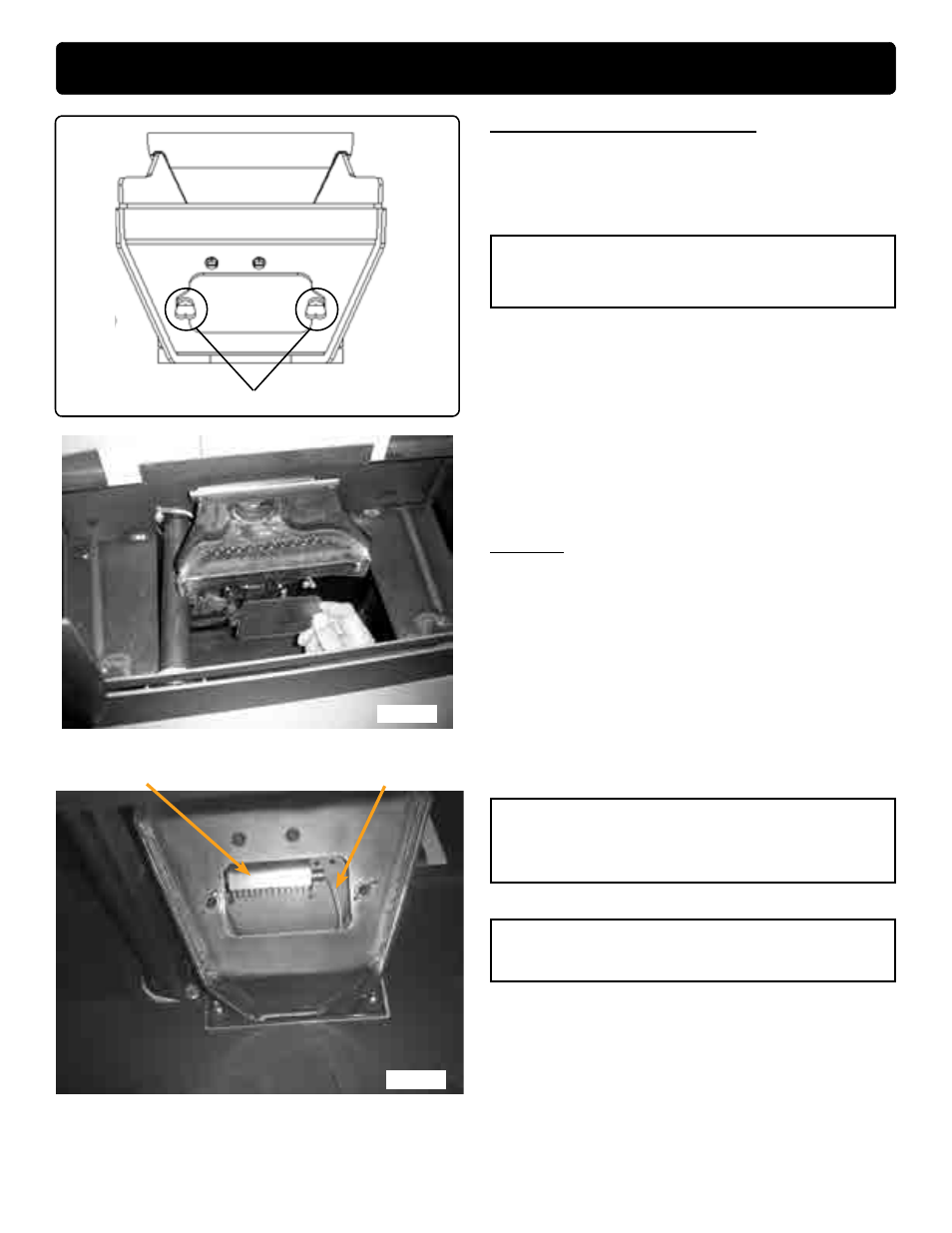

burn Pot cleaning and Maintenance
1. Scrape the top holed surface and sides of the burn pot.
(Fig 33) It is not necessary to completely remove all of
the loosened material from the burn pot. The excess will
be pushed out during the next use.
2. Loosen the (2) wing thumb screws on the lower front angle
of the burn pot. (Fig. 34)
3. Lift off the clean-out cover (Fig.35) to open the bottom
clean-out chamber. (Fig.36)
4. Clean ash buildup from inside the chamber while cover
is off. Use the scraper to tap on the top front edge of the
burn pot. This will help knock pieces of ash, loosened
by the scraping process, down through the holes. It also
helps knock scale off of the igniter element.
Figure 36
The igniter is made to be removable for service by insulated
male/female wire connectors. These connections between
the hot leads (the wires inside the burn pot) and the cold
leads (the wires from the control board) are always pulled
to the inside rear of the feeder body. (not coiled inside the
burn pot.)
It is very important that these connections are to the inside
rear of the feeder body. Also, the extra wire of the igniter wire
service loop must be pulled out through the rear of the feeder
and tied up so that it will not be caught and/or damaged by
any moving parts.
DANGER
Disconnect the power to the unit before removing
cover.
note: the hot lead/cold lead connection must always be
pulled to the rear of the feeder body before operation.
Maintenance - burn Pot
Fig. 34 Loosen wing screws
Fig. 35
caution
use caution when cleaning burn pot clean-out chamber.
do not damage the high temperature igniter wires.
Fig. 36
Igniter Element
Igniter hot lead wires
(high temperature)
Viewed from below through the ash pan opening.
