Motion sensor light control, Operation, Model 5718

Model 5718
D
ual
B
rite
®
Motion
Sensor Light Control
© 2007 HeathCo LLC
598-1308-02
TEST
2 Shells
Features
• Turns on lighting when motion is detected.
• Automatically turns lighting off.
• Three lamp modes available: Normal, Soft, or Flash.
• D
ual
B
rite
®
Timer.
• Photocell keeps the lighting off during daylight hours.
• LED indicates motion was sensed (day or night).
TEST 1 5 20
ON-TIME
Off 3 6 Dusk to
Dawn
D
ual
B
rite
®
Put ON-TIME switch
on the sensor bottom
to TEST and the D
ual
-
B
rite
®
switch OFF.
OPERATION
* resets to Auto Mode at dawn.
ON-TIME
TEST
1 5 20
AUTO
Note: When first turned on wait about 1
1
/
2
minutes for
the circuitry to calibrate.

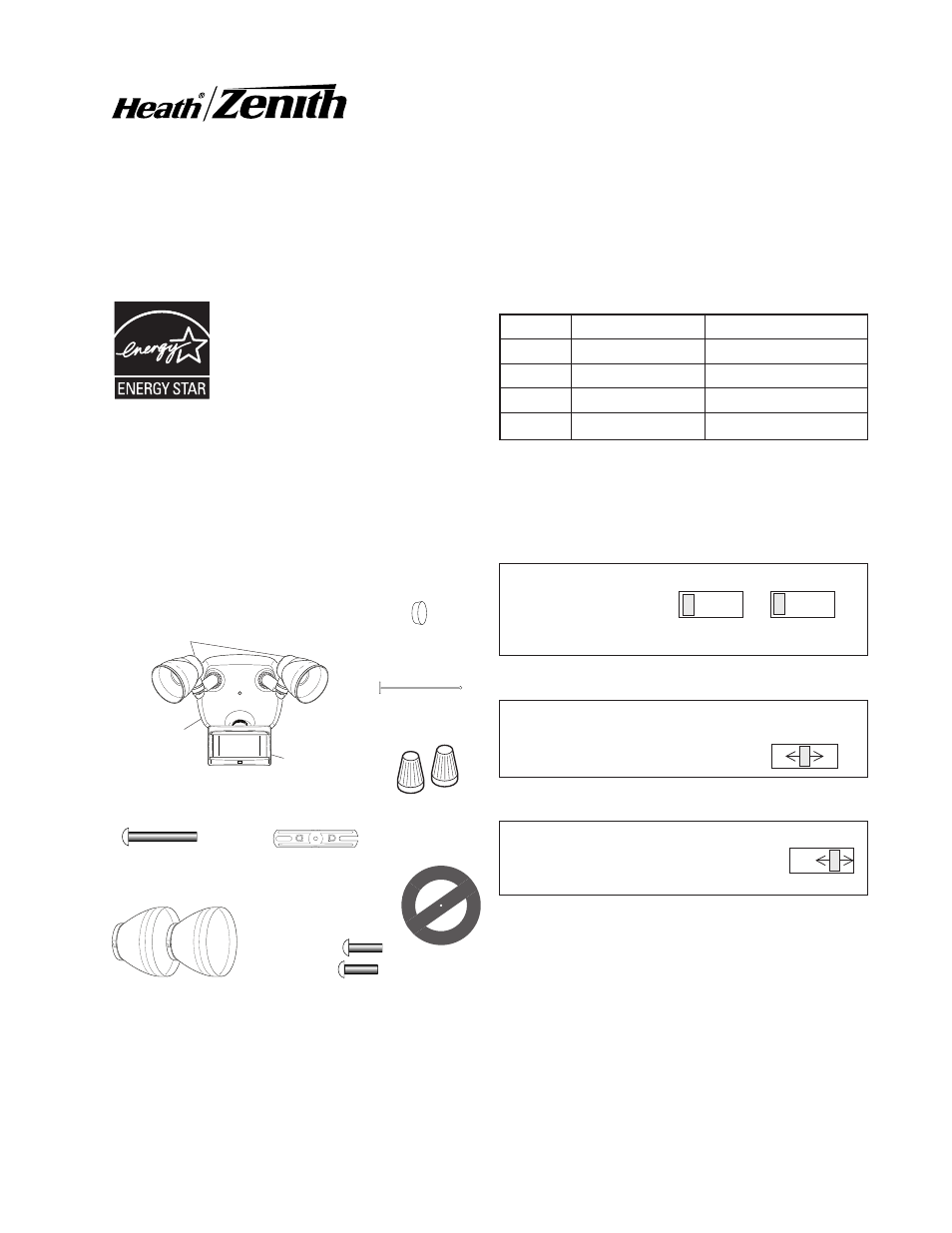

This package includes:
Light Control
Sensor
Cover
Plate
Lamp
Holders
Plastic Hanger
Rubber Plug
Gasket
6 Screws
(3 sizes included)
Mounting Strap
Mounting Bolt
2 Wire
Connectors
Requirements
• The light control requires 120-volts AC.
• If you want to use Manual Mode, the control must be
wired through a switch.
•
Some codes require installation by a
qualified electrician.
• This product is intended for use with the enclosed
gasket and with a junction box marked for use in wet
locations.
Mode:
On-Time:
Works:
Day
Night
Test
5 Sec
x
x
Normal
1, 5, 20 min.
x
Manual
Until Dawn*
x
Accent
3, 6 Hr. to Dawn
x
LAMP MODE
NORMAL SOFT FLASH
LAMP MODE
Put the LAMP MODE switch
in the Normal, Soft, or Flash
position.
Put the ON-TIME switch in the
1, 5, or 20 minute position.
Meets the ENERGY STAR
®
guidelines
when D
ual
B
rite
®
function is off and
ON-TIME is 1 or 5 minutes and when
used with 120 W Max bulbs.
