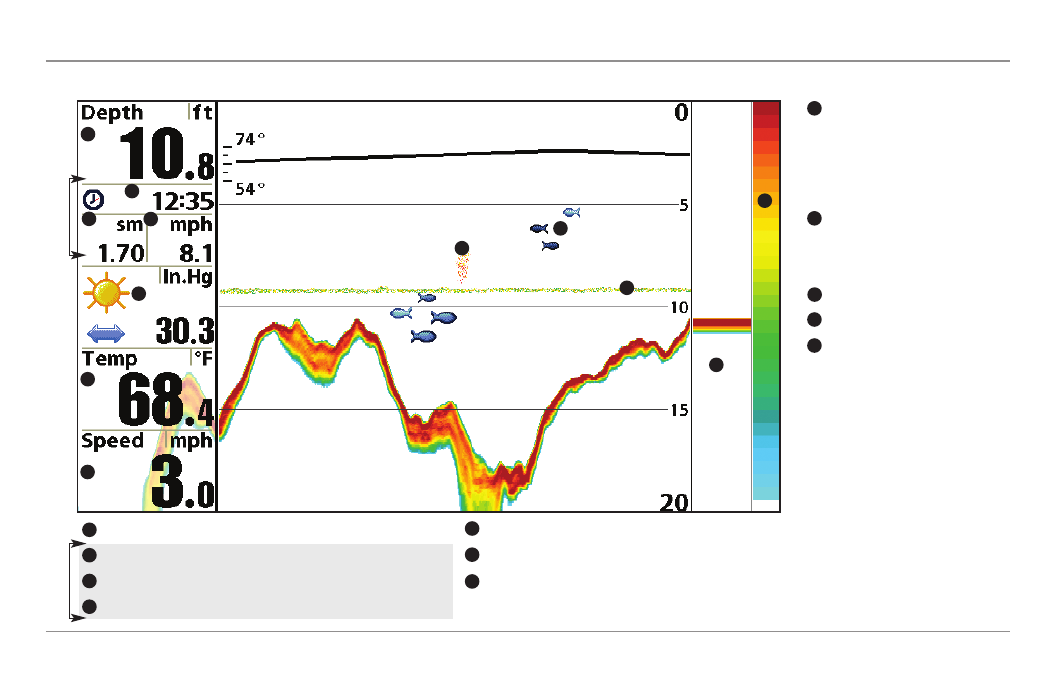

What’s On the 2D Sonar Display
The 900 Series™ can display a variety of useful 2D information about the area under and adjacent to your boat, including the following items:
Sonar Color Bar - color spectrum
indicating low to high sonar intensity
returns, where red indicates high intensity
and white indicates low intensity.
Depth - water depth; can be set to alarm when the water becomes too shallow.
Temperature - water surface temperature
1
6 Timer - Elapsed time with Speed accessory or GPS Receiver.
Speed - if a Speed accessory or GPS Receiver is attached, the
900 Series
™ can display the speed of the boat, and can keep a triplog of
nautical or statute miles traveled.
2
7
Distance - Distance traveled with Speed accessory or GPS Receiver. 3
Average Speed - Average speed reading with Speed accessory or GPS Receiver. 4
Thermoclines - layers of water with
different temperatures that appear at
different depths and different times of the
year. A thermocline typically appears as a
continuous band of many colors moving
across the display at the same depth. 8
Barometric Pressure - Requires optional-purchase WeatherSense®
Bait Ball
5
9
RTS® (Real Time Sonar) Window
10
11
4
1
2
3
5
6
7
Fish ID+ ™ - A fish icon will be shown at
the derived position of the fish. Six fish
icon styles will be used to indicate the
primary beam in which the fish was found.
Left-facing fish indicate fish off the port
side of the boat, while right-facing fish
indicate fish off the starboard side. Each
fish icon is available in three different
sizes. Larger fish icons are used to
represent stronger returns.
12
8
9
10
11
12 Triplog
