Component identification 9

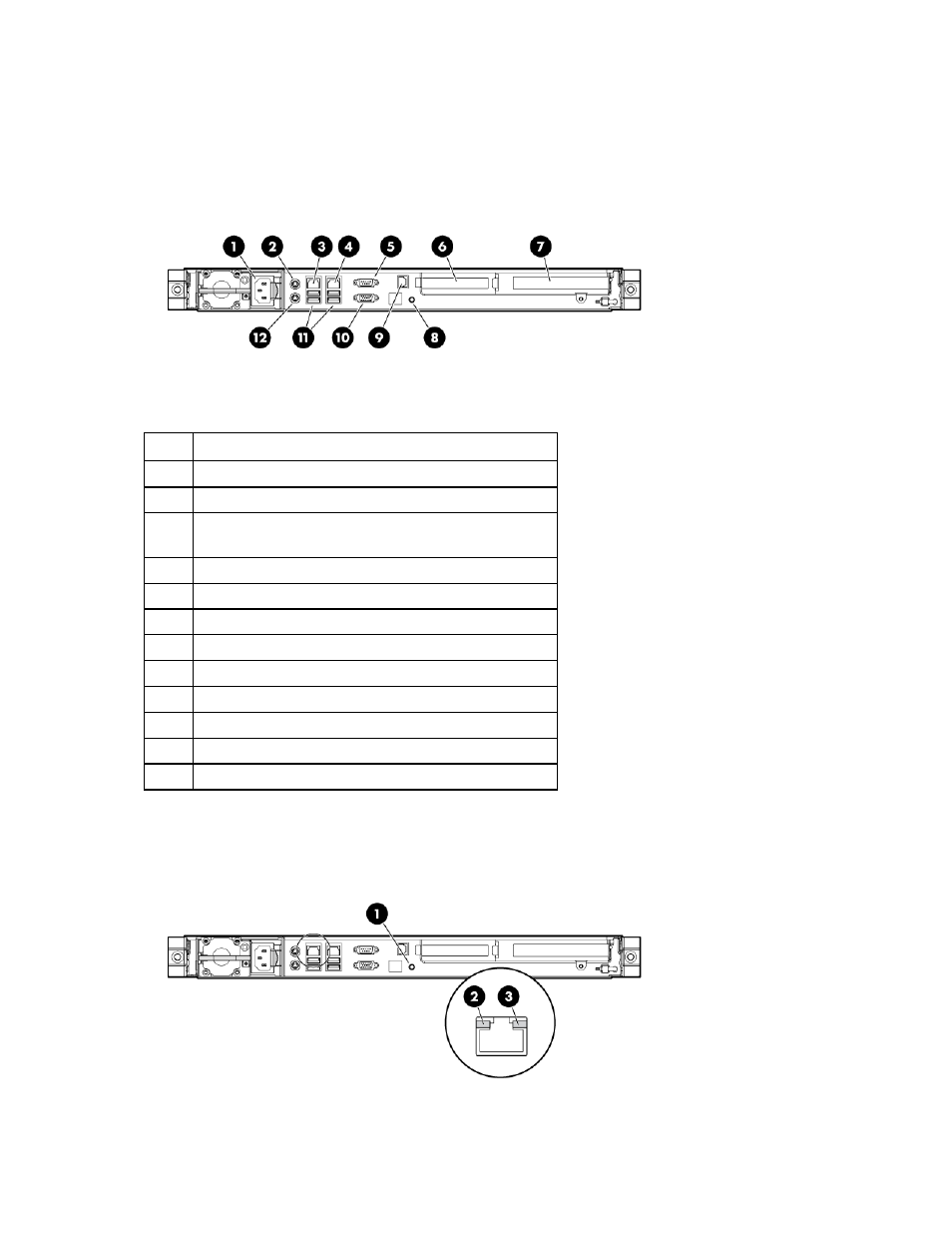

Rear panel components

For this server model, PCI expansion slots 1-3 and 6 are reserved.

Item Description

1

Power cord connector

2

Mouse connector

3

10/100/1000 NIC 1 connector/shared iLO 2
management port

4

10/100/1000 NIC 2 connector

5

Serial connector

6

Slot 5 PCIe2 x16 (4, 2, 1)

7

Slot 4 PCIe2 x16 (16, 8, 4, 1)

8

UID button/LED

9

Dedicated iLO 2 management port (optional)

10

Video connector

11

USB connectors (2)

12

Keyboard connector

Rear panel LEDs and buttons
