4 598-1159-06

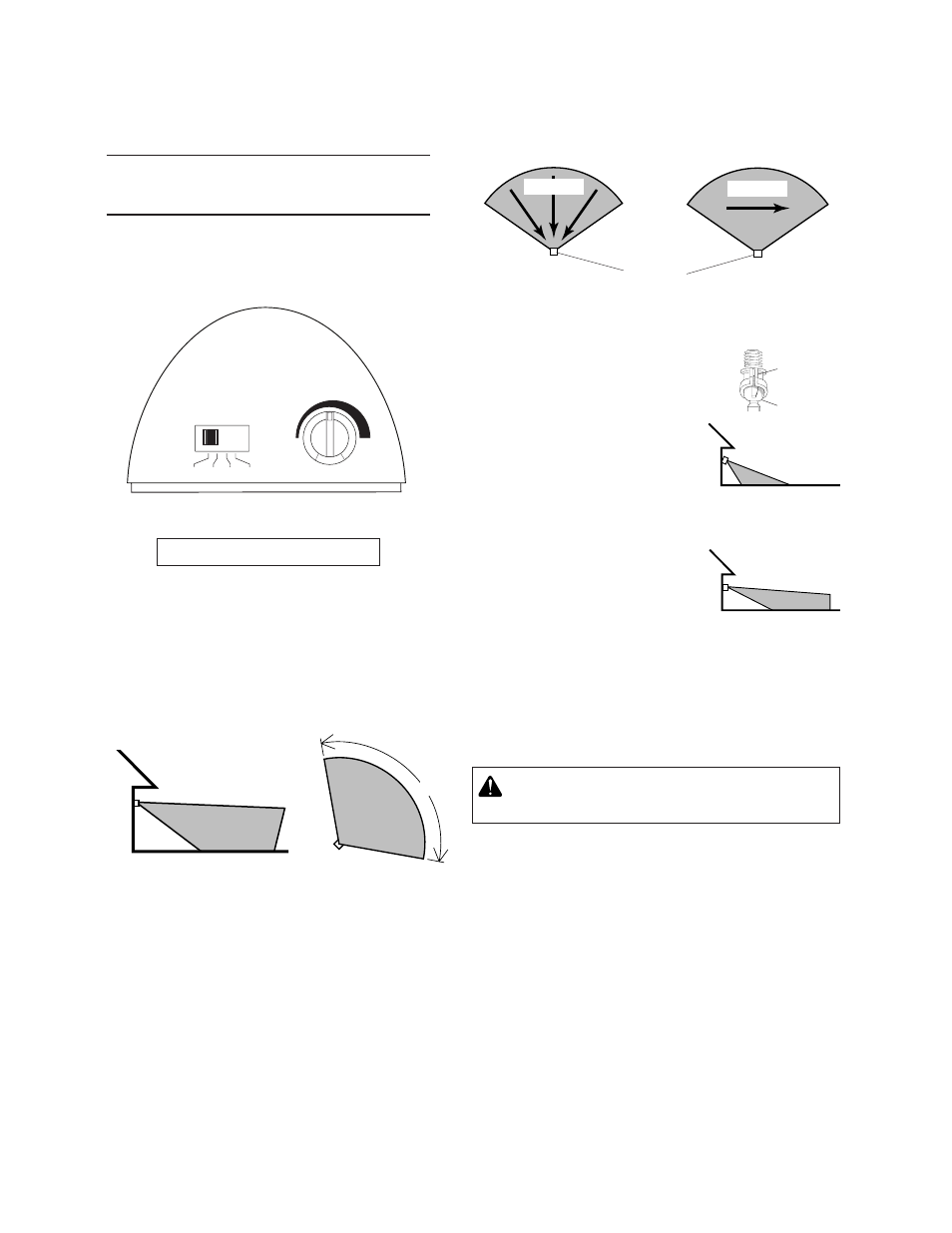

ON - TIME
10 5 1 TEST
MIN MAX
SENS
Bottom of Sensor
TEST AND ADJUSTMENT
NOTE: Sensor has a 1 1 /
2
minute warm up period
before it will detect motion. When first turned
on, wait 1
1 /
2
minutes.
❒ Turn on the circuit breaker and light switch.
Motion Motion
Maximum Range Maximum
Coverage Angle
Avoid aiming the control at:
• Objects that change temperature rapidly, such as
heating vents and air conditioners. These heat
sources could cause false triggering.
• Areas where pets or traffic may trigger the control.
• Nearby large, light-colored objects reflecting light
may trigger the shut-off feature. Do not point other
lights at the sensor.
60 ft.
(18.3 m)
8 ft.
(2.4 m)
110°
Least Sensitive Most Sensitive
Sensor
❒ Loosen the clamp screw in the
sensor ball joint and gently
rotate the sensor.
❒ Walk through the coverage
area noting where you are
when the lights turn on. Move
the sensor head up, down, or
sideways to change the cover-
age area.
Keep the sensor at
least 1" (2.5 cm) away from
the lamps.
❒ Adjust the SENSITIVITY
as needed. Too much
sensitivity may increase false
triggering.
❒ Secure the sensor head by
tightening the clamp screw.
Do not overtighten the screw.
❒ Set the amount of TIME you want the lights to stay
on after motion is detected (1, 5, or 10 minutes).
❒ Turn the SENSITIVITY (SENS) control to the medium
position (halfway between MIN and MAX) and the
ON-TIME control to the TEST position.
Clamp
Screw
Ball
Joint
Aim Sensor
Down for Short
Coverage
Aim Sensor
Higher for Long
Coverage
NOTE: If fixture is mounted higher than 8 ft. (2.4 m), aiming
the sensor down will reduce coverage distance.
The detector is less sensitive to motion directly towards it.
WARNING: Risk of fire. Do not aim the bulbs
at a combustible surface within 3 ft. (1 m).
