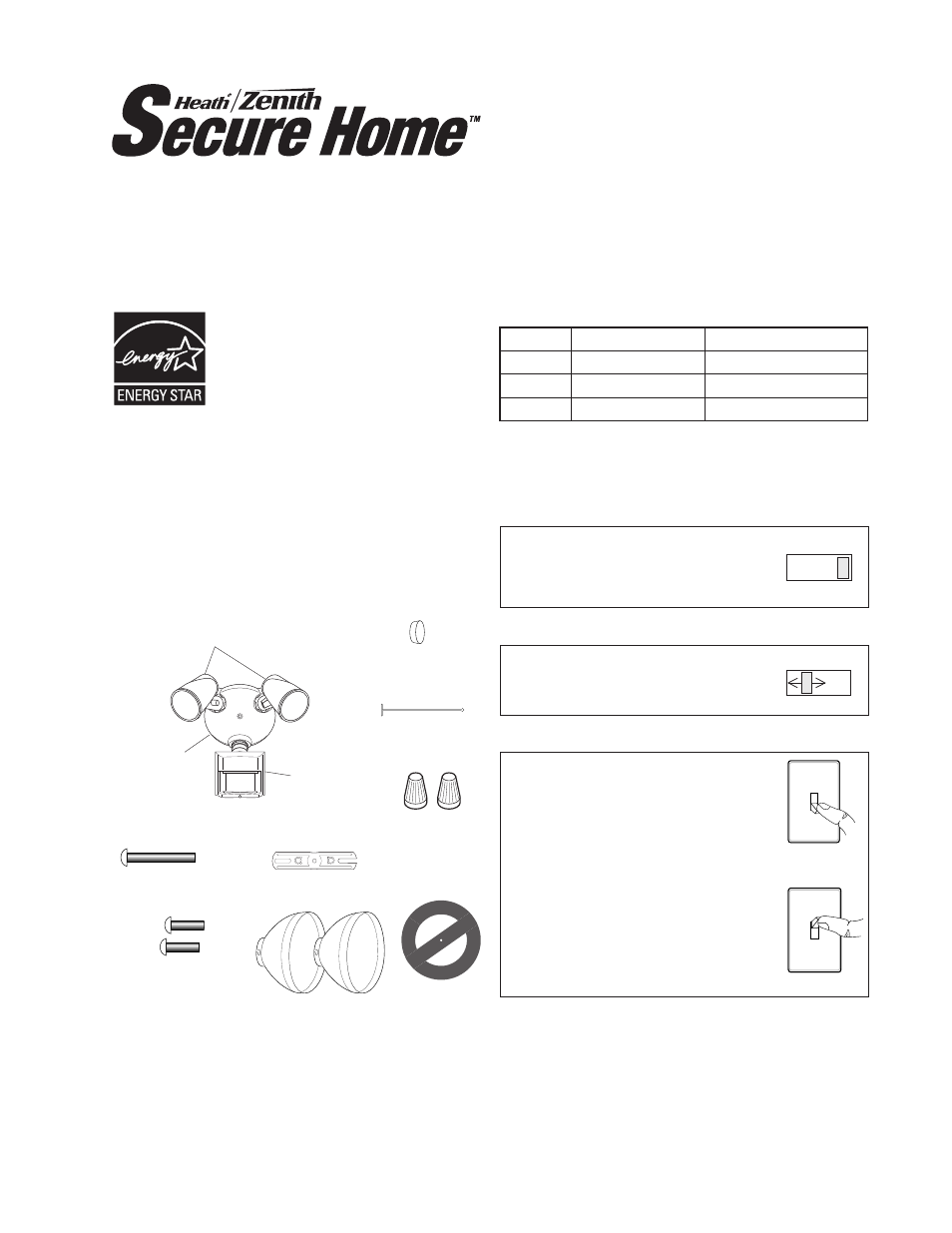

Heath Zenith Motion Sensor Light Control SH-5412 User Manual

Operation, Motion sensor light control, Model sh-5412

background image

© 2008 HeathCo LLC

598-1158-04

Requirements

• The light control requires 120-volts AC.
• If you want to use Manual Mode, the control must be

wired through a switch.

Some codes require installation by a
qualified electrician.

• This product is intended for use with the enclosed

gasket and with a junction box marked for use in wet
locations.

Light Control

Sensor

Cover

Plate

Lamp Holders

Features

• Turns on lighting when motion is detected.
• Automatically turns lighting off.
• Bulb Saver™ - Extends bulb life by up to 4x standard

bulbs. Lights bulb to full bright in under 2 seconds.

• Photocell keeps the lighting off during daylight hours.
• LED indicates motion was sensed (day or night).

Plastic Hanger

Rubber Plug

Gasket

Mounting Strap

Mounting Bolt

2 Wire

Connectors

This package includes:

6 Screws

(3 sizes included)

OPERATION

* resets to Auto Mode at dawn.

TEST

10 5 1

TEST

ON-TIME

Put the ON-TIME switch on the
bottom of the sensor in the TEST
position.

MANUAL MODE

ON-TIME

10 5 1 TEST

... back on.

AUTO

1 Second OFF

then...

Note: When first turned on wait about 1

1

/

2

minutes for

the circuitry to calibrate.

Manual mode only works at night
because daylight returns the sensor
to AUTO.

Flip the light switch off for one second
then back on to toggle between AUTO
and MANUAL MODE.

Manual mode works only with the
ON-TIME switch in the 1, 5, or 10
position.

Put the ON-TIME switch in the 1, 5,
or 10 minute position.

Mode:

On-Time:

Works:

Day

Night

Test

5 Sec

x

x

Normal

1, 5, 10 min.

x

Manual

Until Dawn*

x

Model SH-5412

Motion Sensor
Light Control

Meets the ENERGY STAR

®

guidelines

when used with 120 W Max bulbs.

2 Shells
