Connector Pin Assignments

Maintenance and Service Guide

A–5

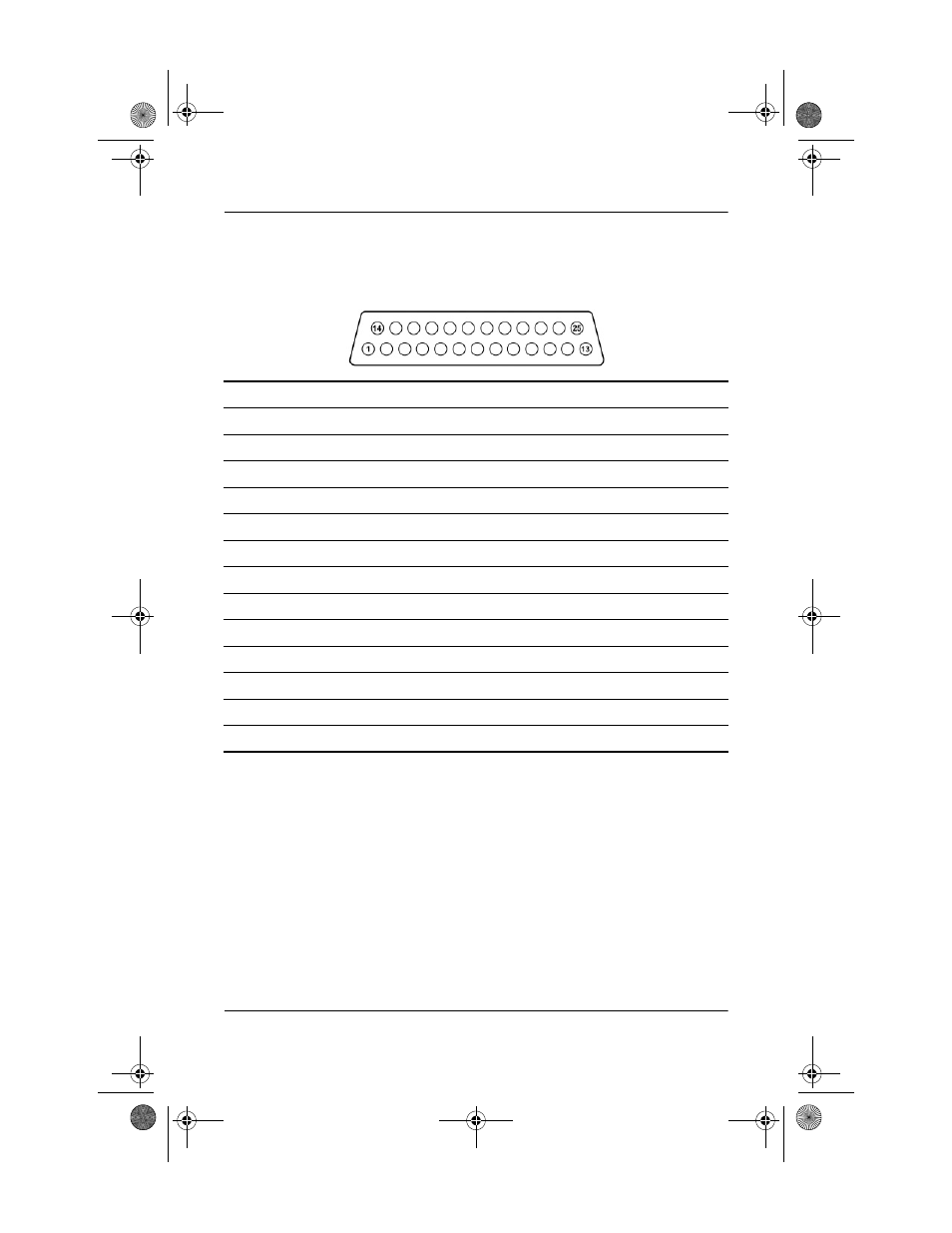

Table A-8

Parallel

Pin

Signal

Pin

Signal

1

Strobe

14

Auto Linefeed

2

Data Bit 0

15

Error

3

Data Bit 1

16

Initialize Printer

4

Data Bit 2

17

Select In

5

Data Bit 3

18

Ground

6

Data Bit 4

19

Ground

7

Data Bit 5

20

Ground

8

Data Bit 6

21

Ground

9

Data Bit 7

22

Ground

10

Acknowledge

23

Ground

11

Busy

24

Ground

12

Paper End

25

Ground

13

Select
