HP zt3000 User Manual
Page 133
Removal and Replacement Procedures
Maintenance and Service Guide
5–43
❏
Speaker cover (Section 5.11)
❏
Display assembly (Section 5.15)
❏
Top cover (Section 5.16)
❏
VGA board and shield (Section 5.19)
2. Disconnect the modem cable 1 from the system board.
3. Lift the left side of the modem board 2 to disconnect it from
the system board.
4. Remove the modem board.

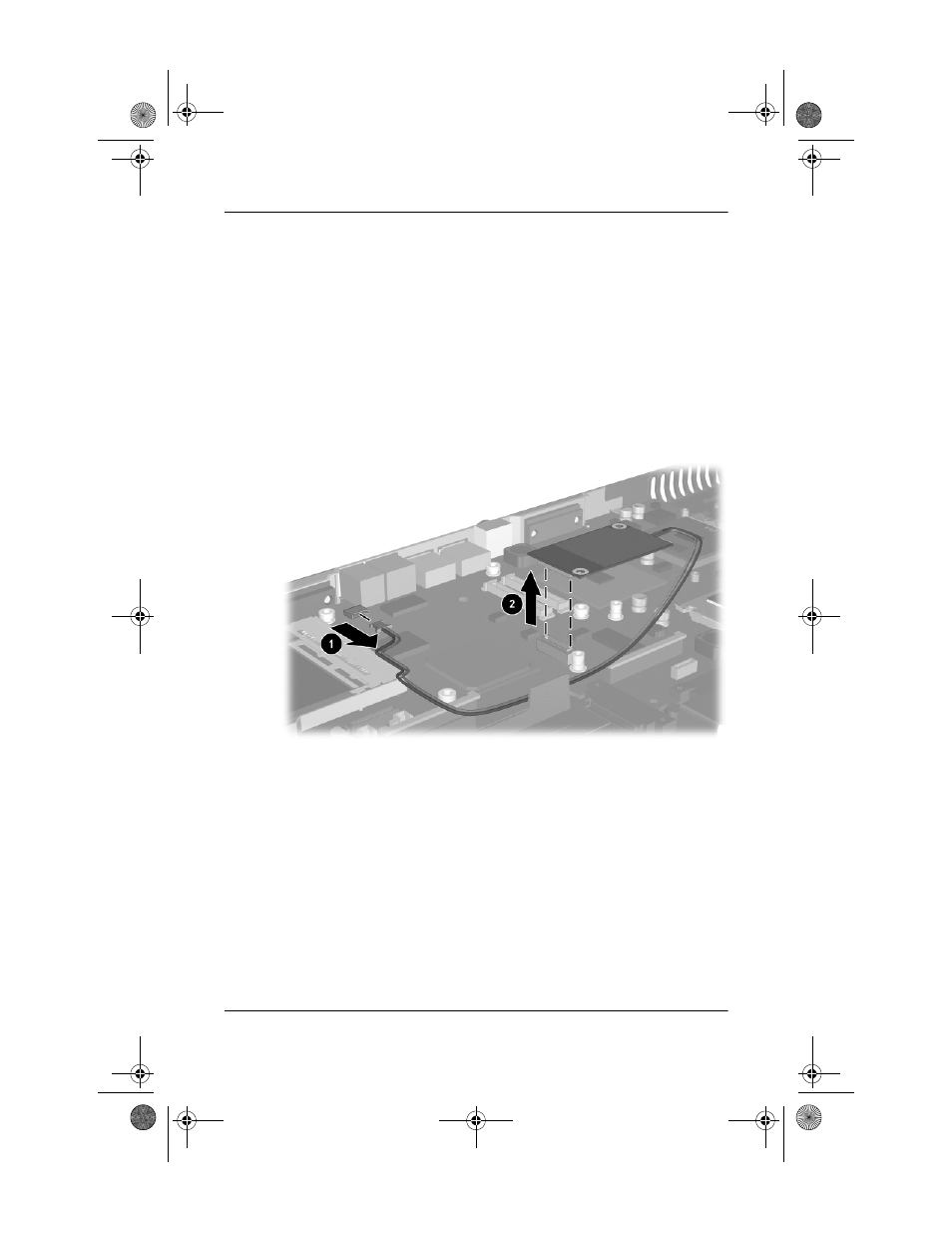

Removing the Modem Board and Cable
Reverse the above procedure to install the modem and cable.
