3

598-1041-04

When wiring to additional standard
fixture only:
Strip the motion sensor's
red wire and connect to the standard
light's black wire. Connect all white wires
together. Total fixture ratings must not
exceed 360W (3.0 A.).

NOTE: All wiring between fixtures should be

run in accordance with the National Elec-
trical Code (Canadian Electrical Code in
Canada) through conduit or another ac-
ceptable means. Contact a qualified
electrician if there is any question as
to the suitability of the system.

OPTIONAL WIRING

This fixture is provided with a sensor
rated for 360 W. Since the fixture is only
rated 100 W, 260 W of additional load
may be controlled by this sensor.

When determining what a fixture is rated
for, do not simply look at the rating on the
lamp in the fixture. Look at the marking
which specifies the maximum lamp watt-
age for which the fixture is suitable.

Once you have selected the fixtures to
be connected and determined their
maximum ratings, add these ratings up.
For instance, if you have 3 fixtures
rated 100 W, 150 W, and 75 W respec-
tively, you have a total load of 325 W.

COMPLETE THE

INSTALLATION

Stuff the wires into the junction box.
Make sure none of the wires get pinched.

Install one 100 W max. light bulb.

Install the fixture top. Secure with
decorative screws.

Caulk fixture mounting surface with
silicone weather sealant. You may want
to wait until you have completed the
tests and adjustments on page 4.

Slide the fixture onto

the mounting screws

and tighten nuts.

Junction

Box

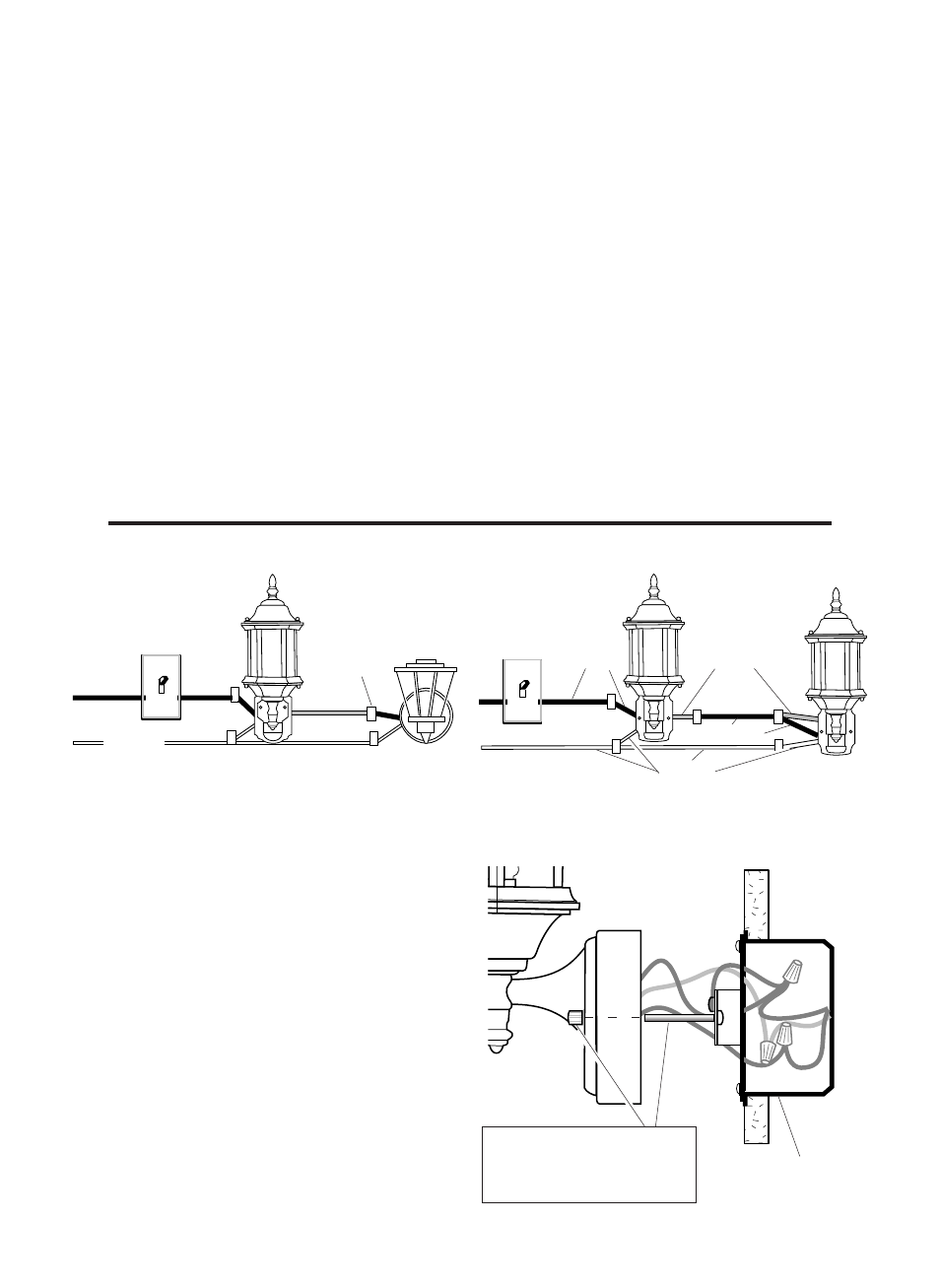

Wiring to Motion Light &

Standard Fixture

RED to
BLACK

WHITE

BLACK

(Standard)

RED

WHITE

BLACK

BLACK

Master

Slave

Wiring to Control One Motion Sensing

Lantern (Slave) from Another (Master)
