Connecting to AV Devices
Connect external devices such as VCD/DVD players or VCRs to the
TV using the AV1 and AV2 ports on the back of the TV.
Connecting to a VCR, VCD or DVD Player

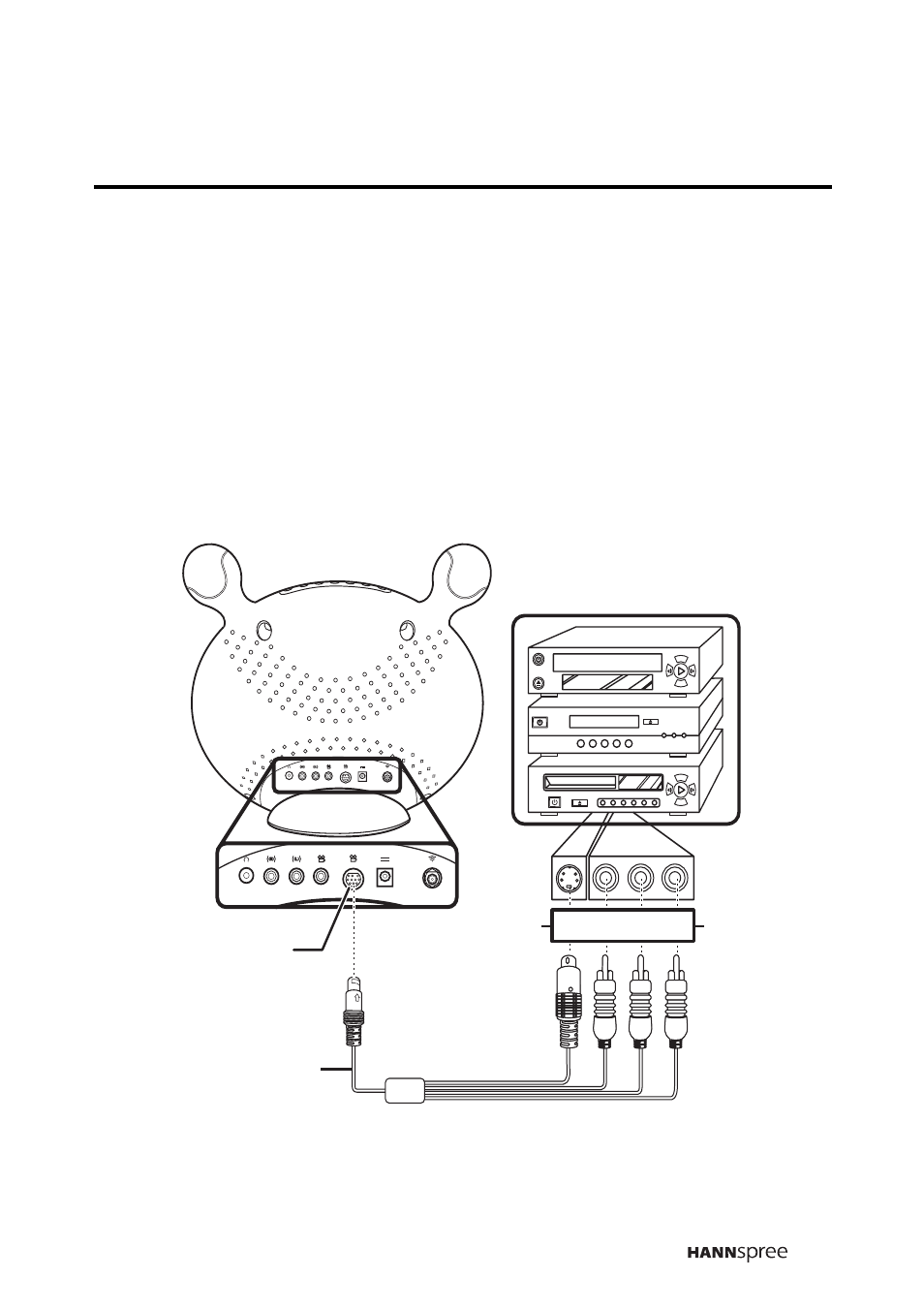

The illustration presented here shows how to connect your TV to a
VCR, VCD or DVD player. Actual connections vary according to the
make and model of the device.
Note
The cables are color-coded (black, red, white, yellow). Connect each color-
coded cable to the appropriate connector on your device.
4
4
B R W Y
4-IN-1 cable
VCR
DVD
VCD
AV2
AV
connectors
S-Video
connector
