Technical, Dimension diagram, Signal connector pin assignment – Hitachi CP-S225W User Manual

Page 194: Technical - 1, Mini din 4-pin connector (s-video), D-sub 15-pin shrink connector (rgb in)

Text mode
Original mode

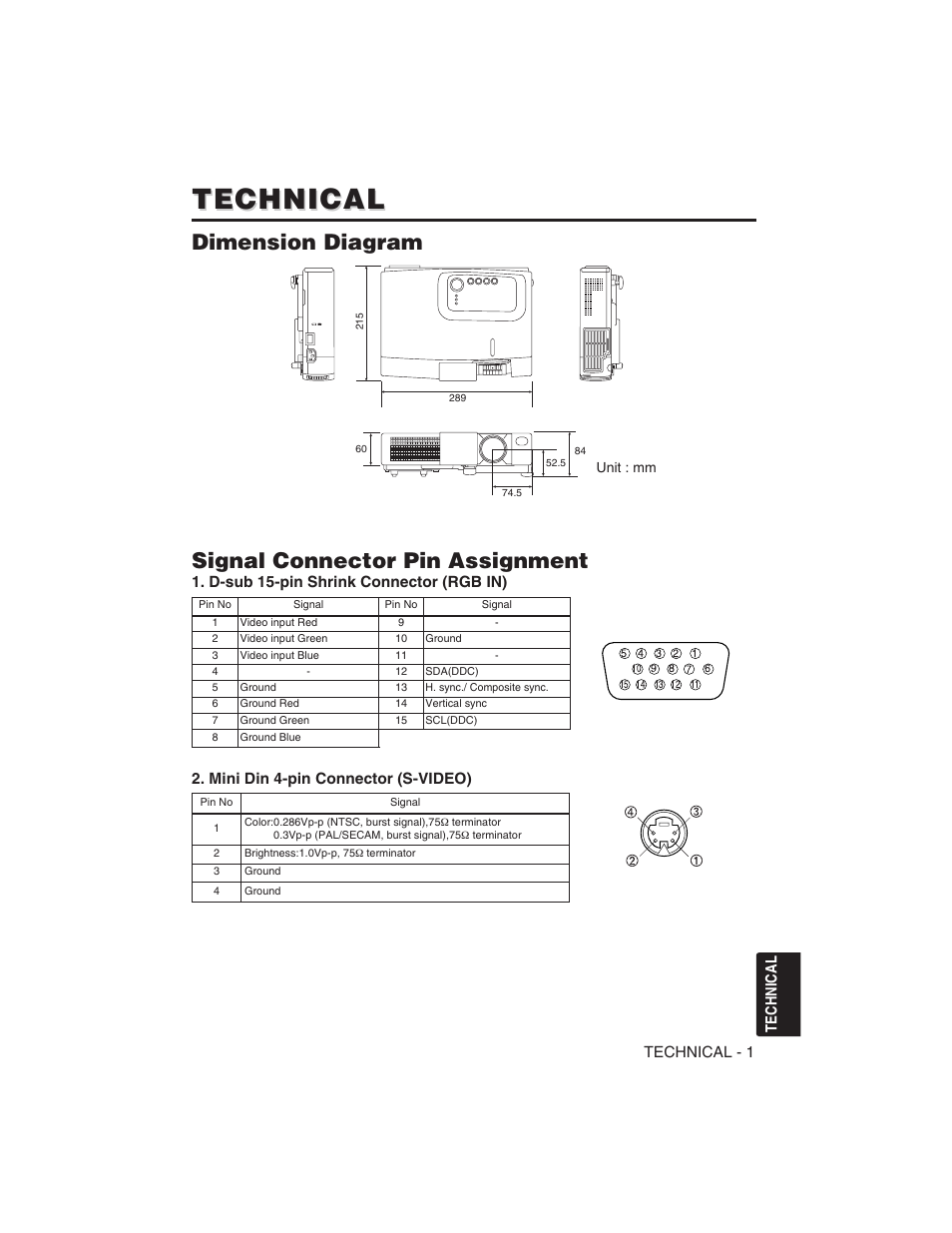

Technical, Dimension diagram, Signal connector pin assignment | Technical - 1, Mini din 4-pin connector (s-video), D-sub 15-pin shrink connector (rgb in) | Hitachi CP-S225W User Manual | Page 194 / 205
