6 P43 Pellet Stove
unpacking
The P43 is bolted (1/4 x 1" hex head bolts) to the skid
to prevent movement during shipping.
To free the stove from the skid you must remove the
hold-down bolts in the rear of the pedestal base.
Removing rear cover panels
The rear cover panels are secured to the stove with three
bolts each. Two of the bolts need only be loosened, not
removed, to remove the panels. It is recommended that
the rear covers are installed after the unit is in place
and the vent pipe is installed, to prevent contact with
hot or moving parts.
Firebrick
Install the single firebrick horizontally on the angle
bracket above the burnpot.
Flame guide
Install the cast iron flame guide on top of the burn pot.
Make sure that the flame guide is fully seated on the
vertical sides of the burn pot and that the back of the
guide rests against the body of the stove.
INSTALL EXHAUST VENT AT CLEARANCES
SPECIFIED BY THE MANUFACTURER. Most pellet
vent pipe requires a minimum of 3" of clearance to
combustible materials although some can be installed
at 1" clearance.
Follow these instructions along with all local codes
regarding installation of this appliance.
Do
nOt use makeshift compromises when installing
this appliance, serious consequences may result.
With any hearth appliance, installation of smoke
detectors is recommended on every level of the home.
Possible causes of smoke detector activation:
Paint curing process - Open a window near the
appliance for the first few hours of burning.
Exhaust being drawn back inside the dwelling - Outside
air connection to the appliance is necessary.
Vent leakage - All interior seams and joints should be
sealed with silicone where appliacable. Follow vent
manufacturers instructions for proper sealing.
The room sensor is a small temperature sensor on the end
of a 60" wire. This sensor is installed much like a standard
wall thermostat. There is a remote room sensor port on the
rear of the unit for easy external connection. Use standard
18-2 thermostat wire to extend the distance to the desired
location (50' maximum). The room sensor should be installed
in the location where you want to control the temperature.
NOTE: Distances of more than 25 feet from the unit or in
another room are not recommended. The room sensor is
essential for the P43's excellent efficiency.
NOTE: it is recommended that the room sensor be
installed, even if only installed on the rear of the unit as a
return air sensor.

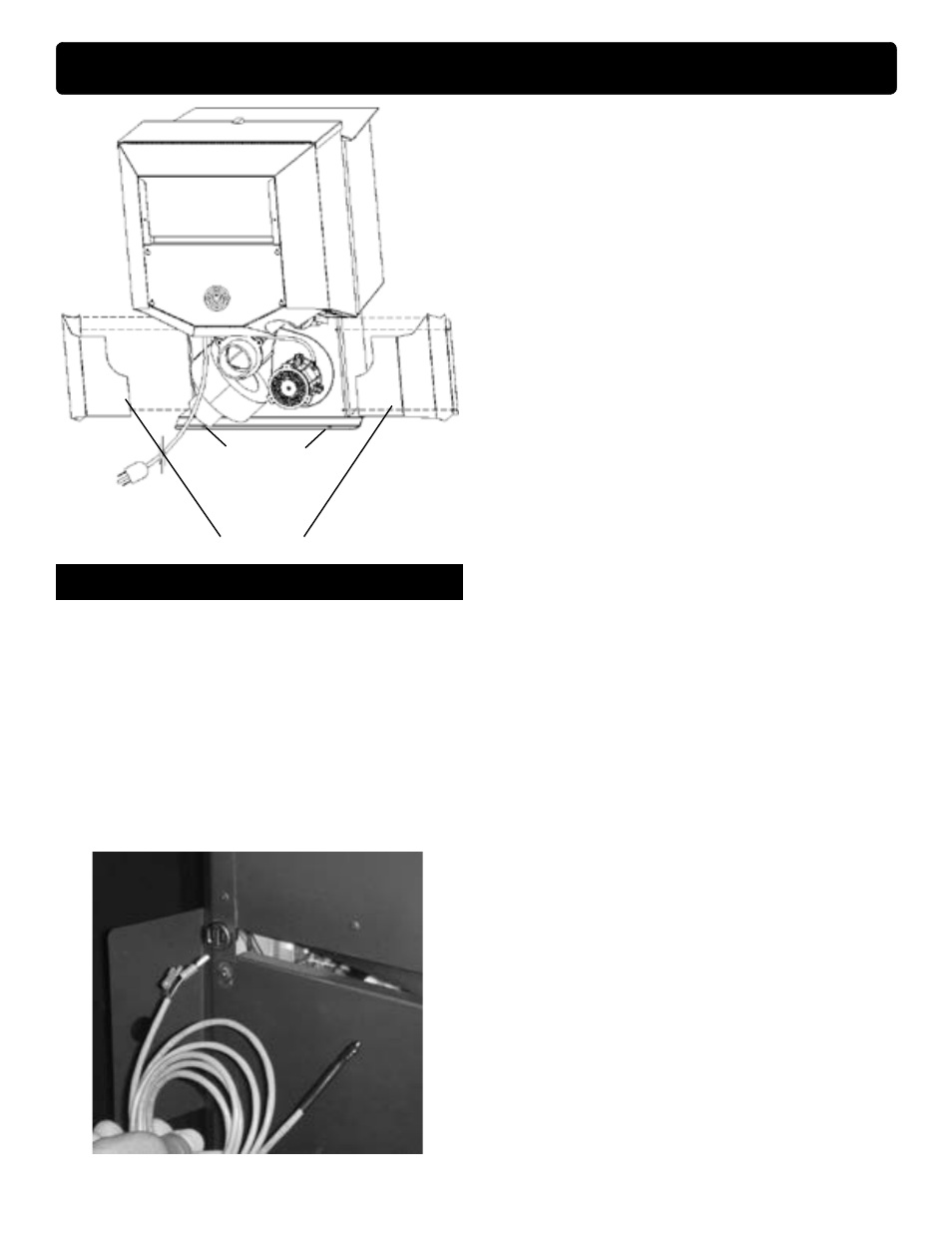

Rear Cover
Panels
Shipping Bolts
Note: These same holes
are used for securing the
stove in mobile home
installation.
Fig. 1
Room Sensor installation
