25

P43 Pellet Stove

3-90-04301R18_03/13

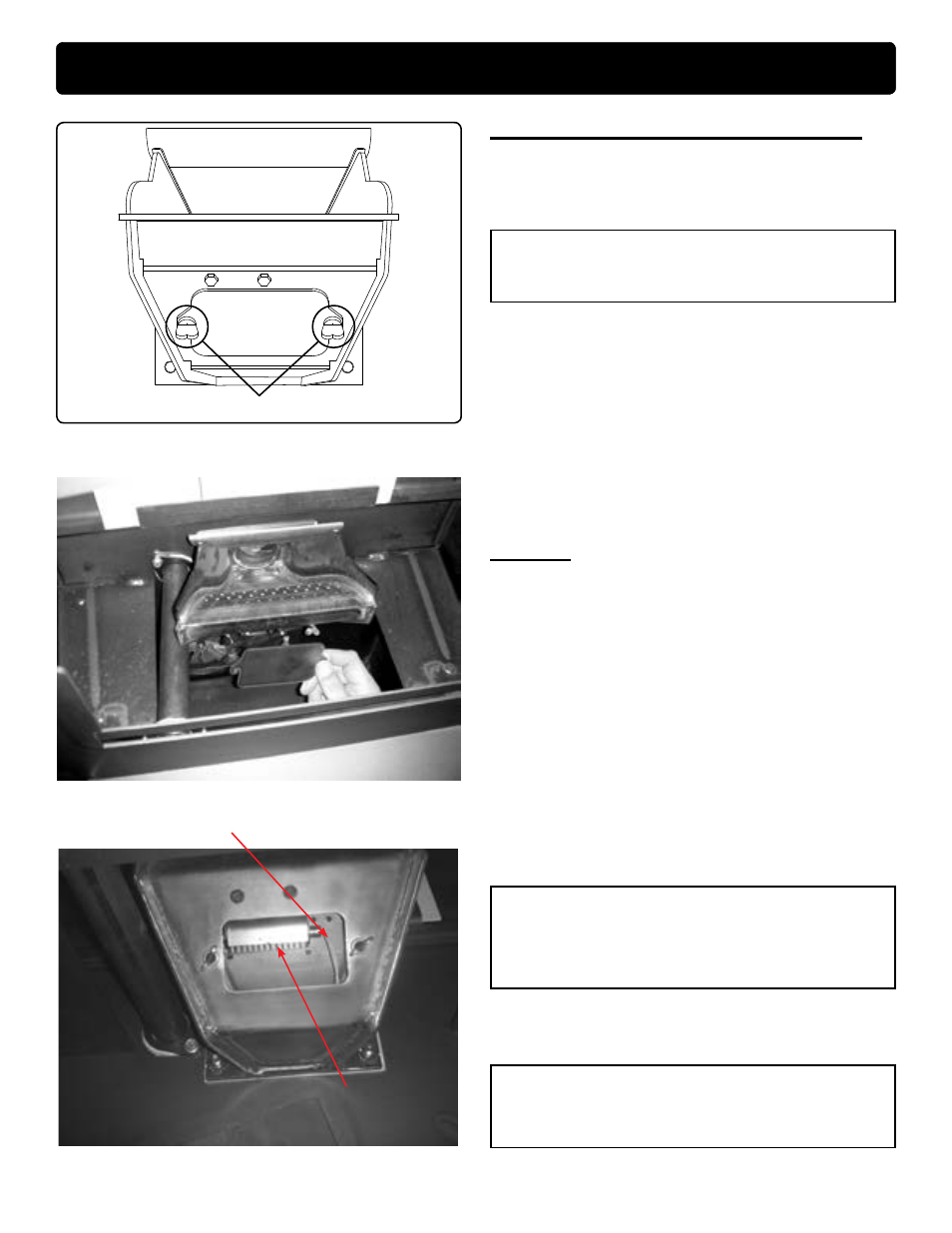

burn Pot cleaning and Maintenance

1. Scrape the top holed surface and sides of the burn

pot.(Fig 33) It is not necessary to completely remove

all material from the burn pot. The excess will be

pushed out during the next use.

Fig. 36

DANGER

Disconnect the power to the unit before

removing cover.

Burn pot igniter

Igniter hot lead wires

(high temperature)

Viewed from below through the ash pan opening.

note: the hot lead/cold lead connection

must always be pulled to the rear of the

feeder body before operation.

P43 Maintenance - burn Pot

Fig. 34

Loosen wing screws

Fig. 35

WARNING

use caution when cleaning burn pot clean-

out chamber. do not damage the high

temperature igniter wires.

2. Loosen the (2) wing thumb screws on the lower front

angle of the burn pot. (Fig. 34)

3. Lift off the clean-out cover (Fig.35) to open the bottom

clean-out chamber. (Fig.36)

4. Clean ash buildup from inside the chamber while

cover is off. Use the scraper to tap on the top front

edge of the burn pot. This will help knock pieces of

ash, loosened by the scraping process, down through

the holes. It also helps knock scale off of the igniter

element.

Figure 36

The igniter is made to be removable for service

by insulated male/female wire connectors. These

connections between the hot leads (the wires inside the

burn pot) and the cold leads (the wires from the control

board) are always pulled to the rear of the feeder body.

(not coiled inside the burn pot.)

It is very important that these connections are to the

inside rear of the feeder body. Also, the extra wire of

the igniter wire service loop must be pulled out through

the rear of the feeder and tied up so that it will not be

damaged by any moving parts.
