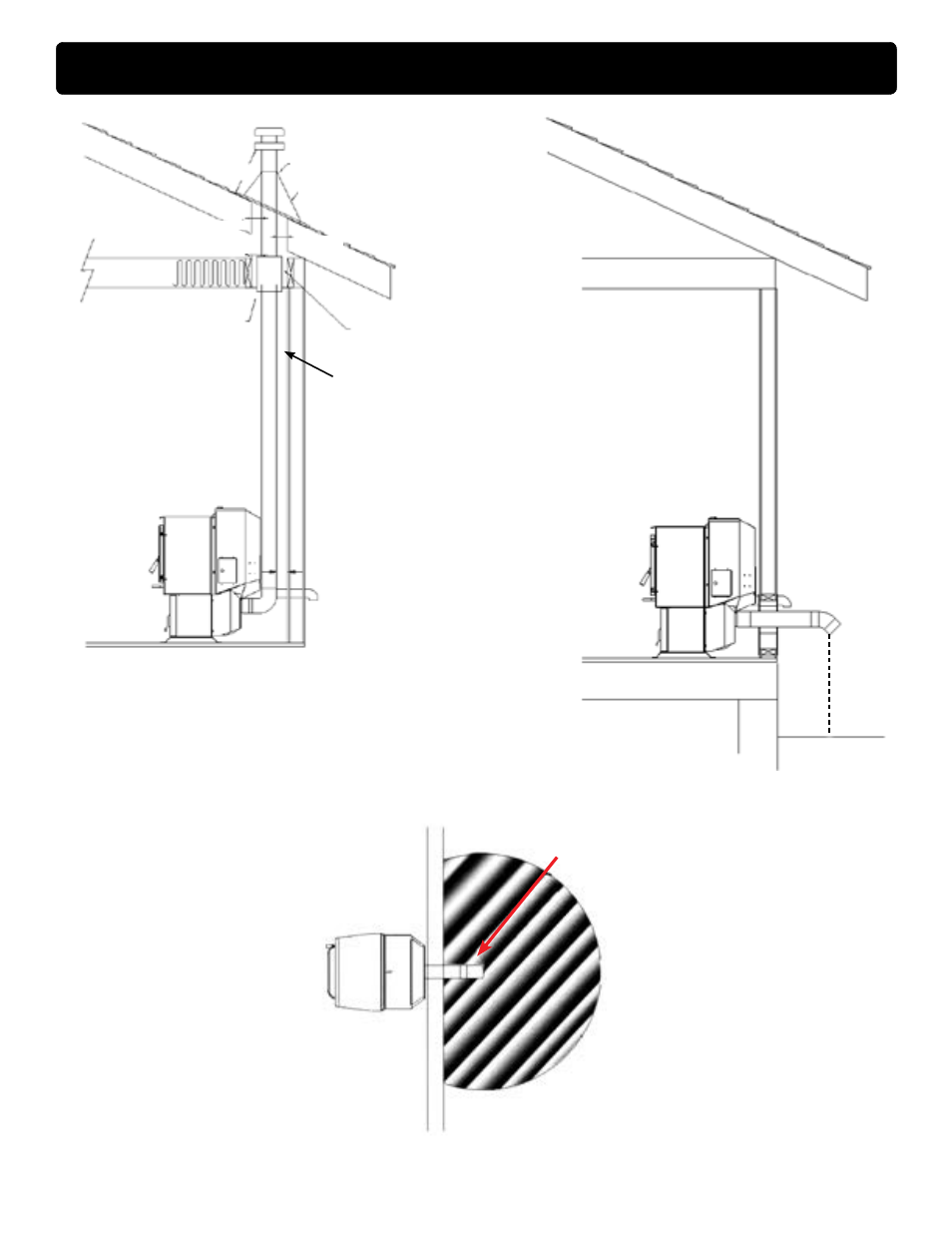

Minimum flue vent
configuration
It is required that outside air
be installed with this venting
configuration to reduce smoke
and creosote smell in the room
in the event of power failure.
Min. above ground level
18"
venting
Fig. 15
Fig. 14
PL vent manufacturer's
firestop spacer and
support
(See Page 7 for
corner installation
clearances)
Storm collar
Flashing
3" min.
3" min.
12" min.
3" min.
3" min.
No insulation or
other combustible
materials are
allowed within
3" of the pellet
vent pipe. Unless
specified by the
pipe manufacturer
Fig. 16
12" min. wall to outlet
36" min clearance to any
combustible material
Shaded area represents the
minimum clearance to combustible
materials such as shrubbery, mulch
or tall grasses.
#8 installing through the ceiling
Through the ceiling vent, follow PLvent manufacturers
recommendations when using wall and ceiling pass
through.
note: do not place joints within wall pass-throughs.
