– 7 –
English
If any part is missing or damaged, do not attempt
to assemble the table saw, plug in the power cord,
or turn the switch ON until the missing or damaged
part is obtained and is installed correctly.
STAND
NOTE: To make assembly easier, keep contents of box
together. Apply a coat of automobile wax to the table.
Wipe all parts thoroughly with a clean dry cloth. This will
reduce friction when pushing the workpiece.
ACCESSORIES AND ATTACHMENTS
RECOMMENDED ACCESSORIES
Visit your Hardware Department or see the Power
and Hand Tools Catalog to purchase recommended
accessories for this power tool.
WARNING
To avoid the risk of personal injury:
• Do not use a dado with a diameter larger than 6”.
• Maximum dado width is 1/2”. DO NOT USE
WIDER COMBINATIONS.
• Do not use molding head set with this saw.
• Do not modify this power tool or use accessories
not recommended by Store.
WARNING

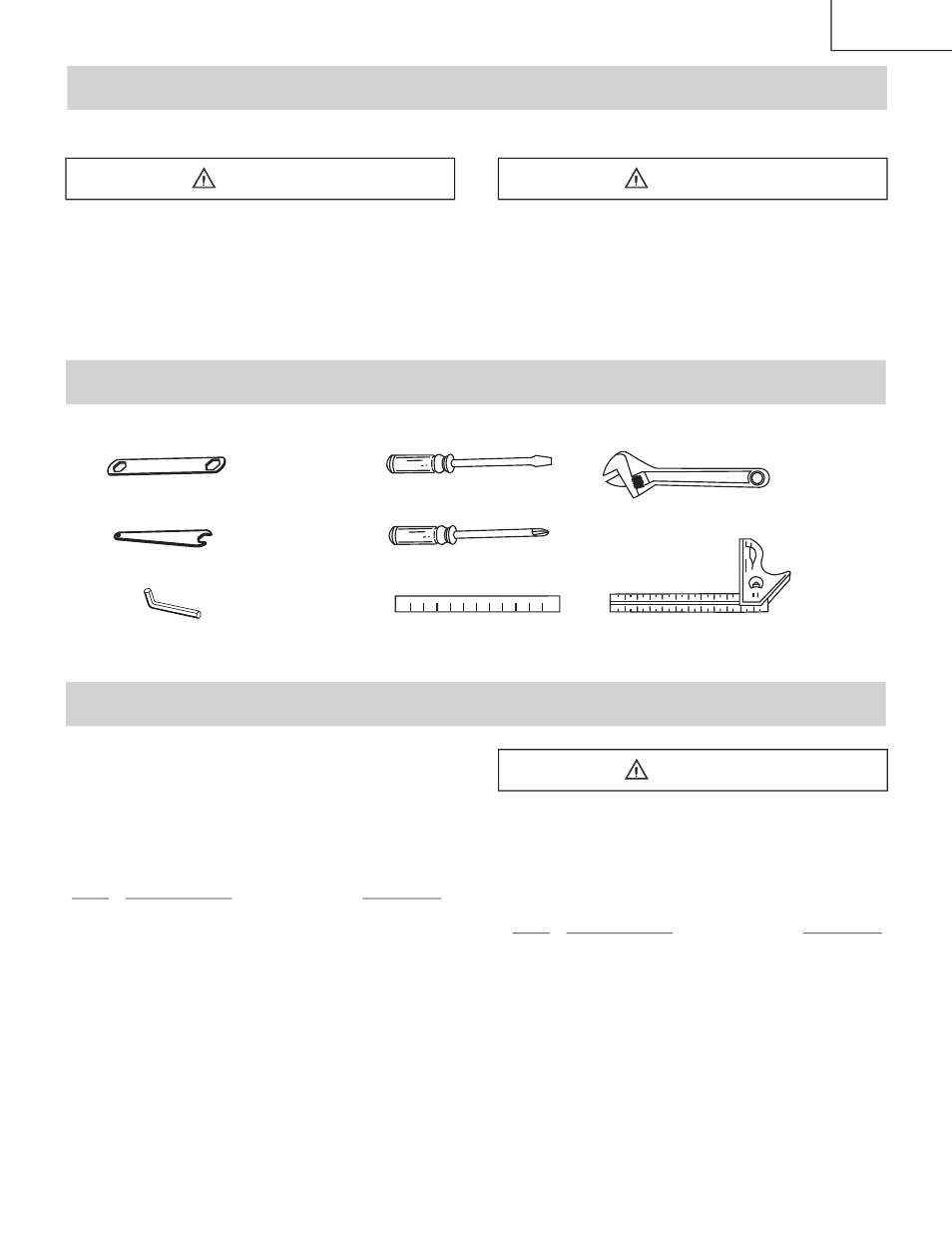

TOOLS NEEDED FOR ASSEMBLY
CARTON CONTENTS
UNPACKING AND CHECKING CONTENTS
Separate all parts from packing materials. Check each
part with the illustration on the next page and the “Table
of Loose Parts” to make certain all items are accounted
for, before discarding any packing material.
TABLE OF LOOSE PARTS
WARNING
ITEM DESCRIPTION QUANTITY
A Table saw assembly 1
B Blade guard and splitter 1
C Rip fence 1
D Dado table insert 1
E Miter gauge 1
F Blade wrench 2
G Hand wheel 2
H Blade 1
I Hex wrench 1
J Guard mounting bolt,fl at washer,
toothed washer,spring washer 1 each
K Dome nut 2
ITEM DESCRIPTION QUANTITY
L Stand assembly 1
Not Supplied
Medium Screwdriver
#2 Phillips screwdriver
Straight Edge
Adjustable Wrench
Combination Square
Supplied
Wrench
3 mm Hex Wrench
Wrench
