Havis-Shields Heavy Duty Trak Mount 2006-2009 Chevrolet Impala C-TM-IMP-1 User Manual
Page 3
C-TM-IMP-1_INST_11-08
3

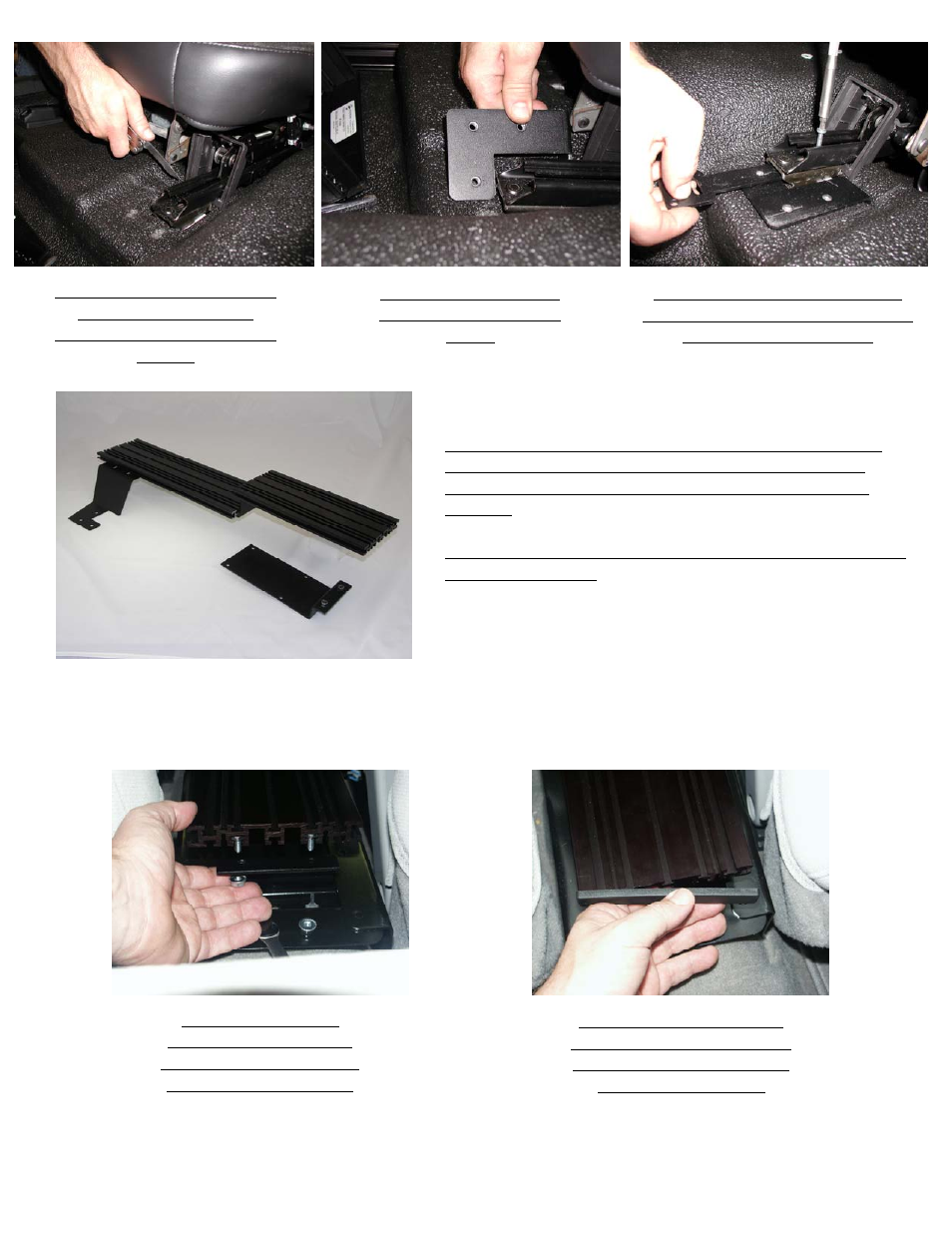

Cut floor mat, next to the seat
rail to allow Under seat
support bracket to slide under
seat rail
Slide under seat support
brackets into position as
shown
Slide guide brackets into seat rail
and loosely attach #10 x ¾” Phillips
pan head machine screws
1. Position sub-assembled transmission hump bracket, 18”
portion of trak, extrusion adapter bracket, rear extension
bracket and 12” portion of trak to the under seat & guide
brackets.
2. Loosely attach assembly using ¼-20 x ¾” Phillips machine
screws and washers.
Attach rear extrusion
bracket to 12” portion of
extrusion using (2) ¼-20 x
¾” bolts and serrated nut
Tighten all loose hardware.
Insert necessary hardware for
consoles and accessories and
attach plastic end caps
