B
KLN 94
Rev. 4, Jan/2003 10599I04.CDL Page 2-13

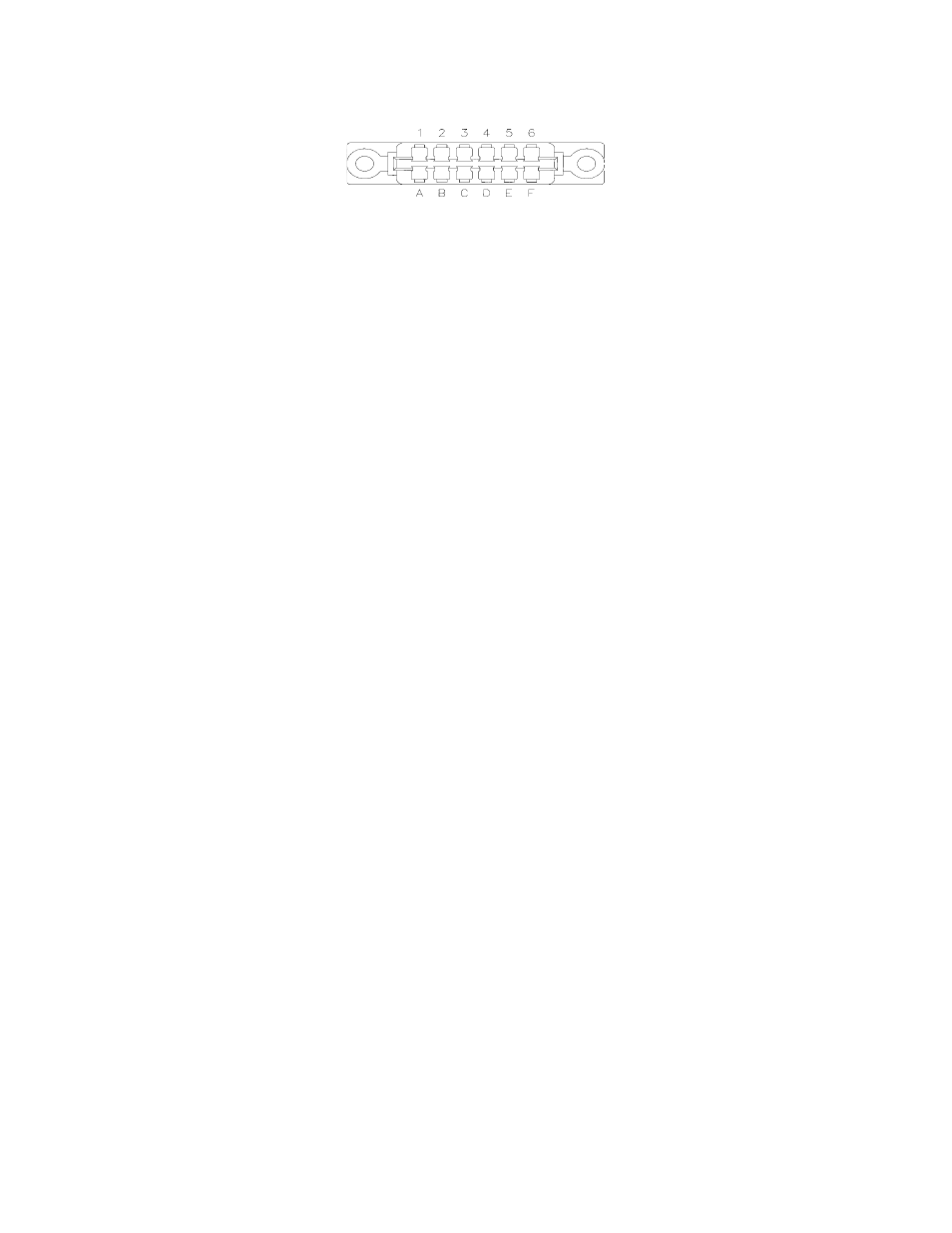

Figure 2-3 KLN 94 P943 CONNECTOR PIN FUNCTIONS
P943
1 ---------------------------
→ EXT_EEPRM_CS
2
←
--------------------------- EXT_EEPRM
3
←
--------------------------- TMCP_ENABLEn
4 ---------------------------
→ +5 V
5
←
--------------------------- RTI_TAKEHOME_ENABLEn
6
←
--------------------------- TMCP_IN
A ---------------------------
→ SERIAL OUT
B
←
--------------------------- SERIAL_IN
C
←
--------------------------- SERIAL_CLK
D --------------------------- GROUND
E --------------------------- GROUND
F ---------------------------
→ TMCP_OUT
←
INPUTS OUTPUTS
→
