Honeywell BENDIX/KING KLN 94 - Manual (Page 36)

B
KLN 94
Rev. 4, Jan/2003 10599I04.CDL Page 2-12

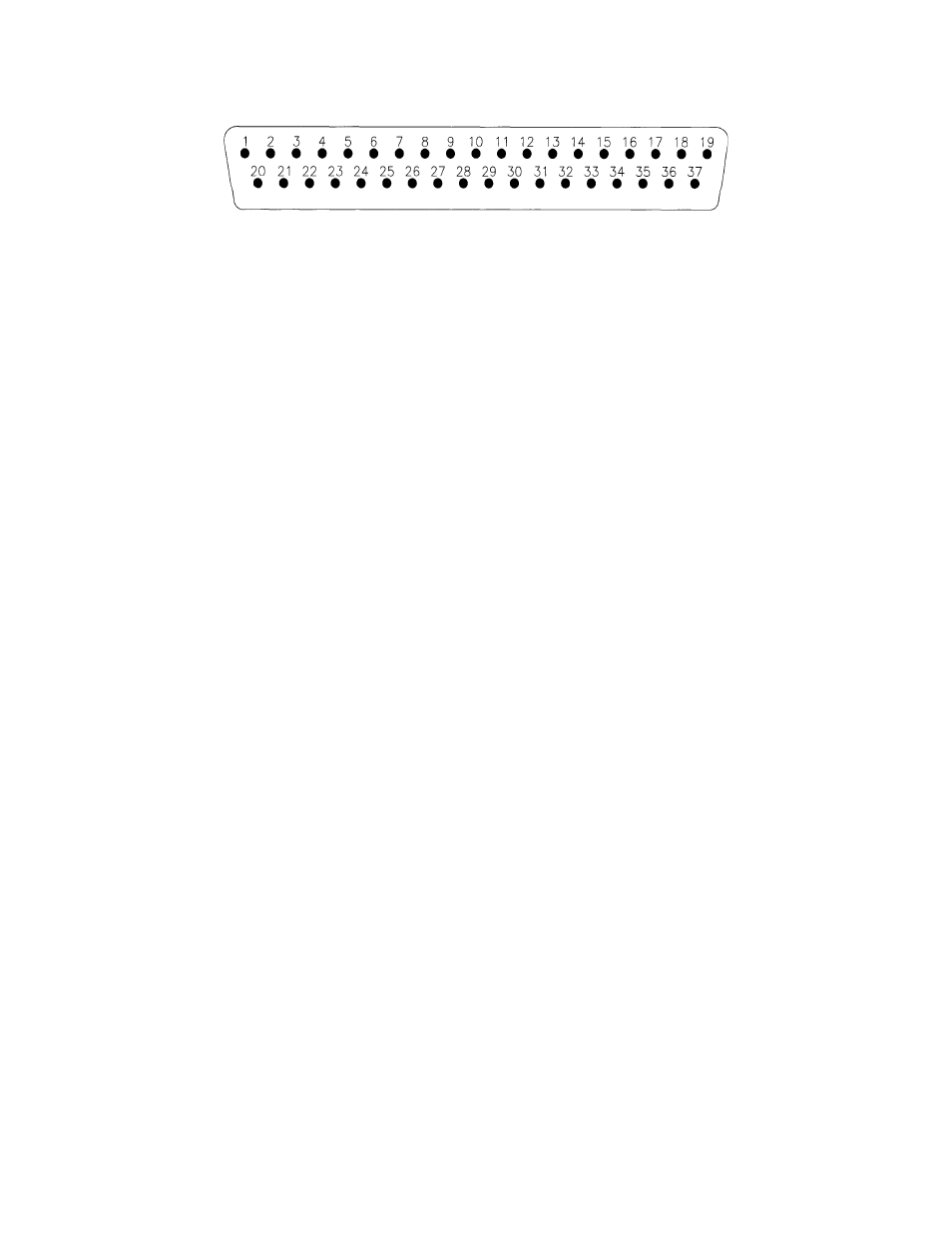

Figure 2-2 KLN 94 P942 CONNECTOR PIN FUNCTIONS
(Sheet 2 of 2)
P942
25
←
--------------------------- B1
26
←
--------------------------- B2
27
←
--------------------------- B4
28
←
--------------------------- C1
29
←
--------------------------- C2
30
←
--------------------------- C4
31
←
--------------------------- GPS DISPLAYED
32 ---------------------------
→
+TO
33 ---------------------------
→
+FROM
34 ---------------------------
→
OBS OUT
35
←
--------------------------- OBS SIN
36
←
--------------------------- OBS COS
37 ---------------------------
→
OBS RETURN
←
INPUTS OUTPUTS
→
