B
KLN 94
Rev. 4, Jan/2003 10599I04.CDL Page 2-10

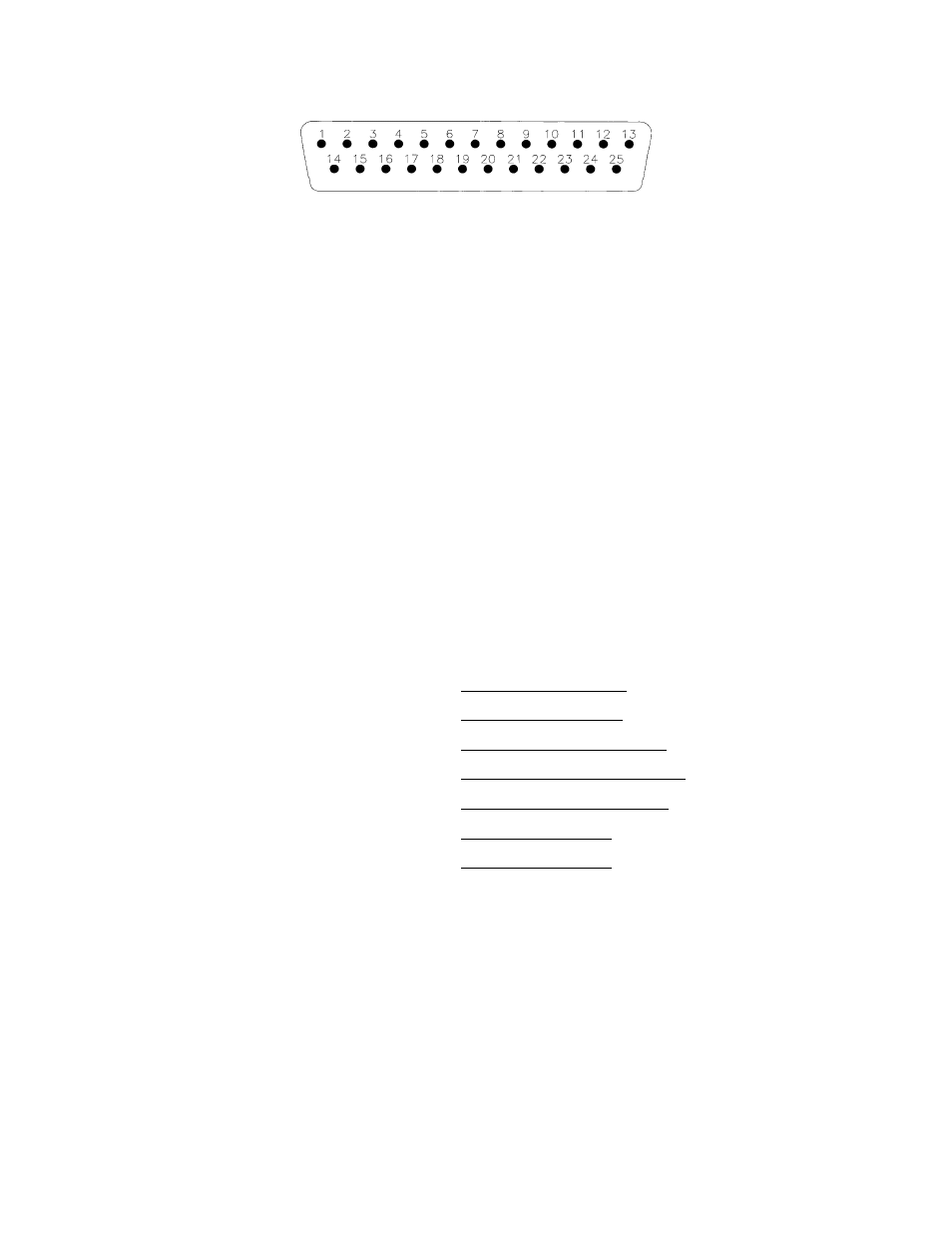

Figure 2-1 KLN 94 P941 CONNECTOR PIN FUNCTIONS
P941
1
←
--------------------------- GENERAL RS 232 IN
2 ---------------------------
→
GENERAL RS 232 OUT
3
←
--------------------------- DATA LOADER RS232 IN
4 ---------------------------
→
DATA LOADER/QUICKTUNE TM RS 232 OUT
5
←
--------------------------- SPARE RS 232 IN
6 ---------------------------
→
GPS SENSOR RS 232 OUT
7 ---------------------------
→
OBI SYNC
8 ---------------------------
→
OBI CLOCK
9 ---------------------------
→
OBI DATA
10 ---------------------------
→
LATERAL DEV FLAG +
11 ---------------------------
→
LATERAL DEV FLAG -
12 ---------------------------
→
VERTICAL DEV FLAG +
13 ---------------------------
→
VERTICAL DEV FLAG -
14
←
--------------------------- A/C GROUND
15 ---------------------------
→
WAYPOINT ANNUNCIATE
16 ---------------------------
→
MESSAGE ANNUNCIATE
17 ---------------------------
→
APPROACH ARM ANNUNCIATE
18 ---------------------------
→
APPROACH ACTIVE ANNUNCIATE
19 ---------------------------
→
ALTITUDE ALERT ANNUNCIATE
20 ---------------------------
→
SPARE ANNUNCIATE 1
21 ---------------------------
→
SPARE ANNUNCIATE 2
22 ---------------------------
→
ROLL STEERING VALID
23 ---------------------------
→
ROLL STEERING HI
24
←
---------------------------
→
LIGHTING 28V/LO
25
←
---------------------------
→
LIGHTING 14V
←
INPUTS OUTPUTS
→
