– 17 – EN
2C15
English
The following show examples of connections commonly used to connect the DVD/VCR to TV and other
components.
Notes
¡ Be sure to turn off the power to all components in the system before connecting another component.
¡ Refer to the Instruction Manuals for your TV, stereo system and any other components to be connected to the
DVD/VCR.

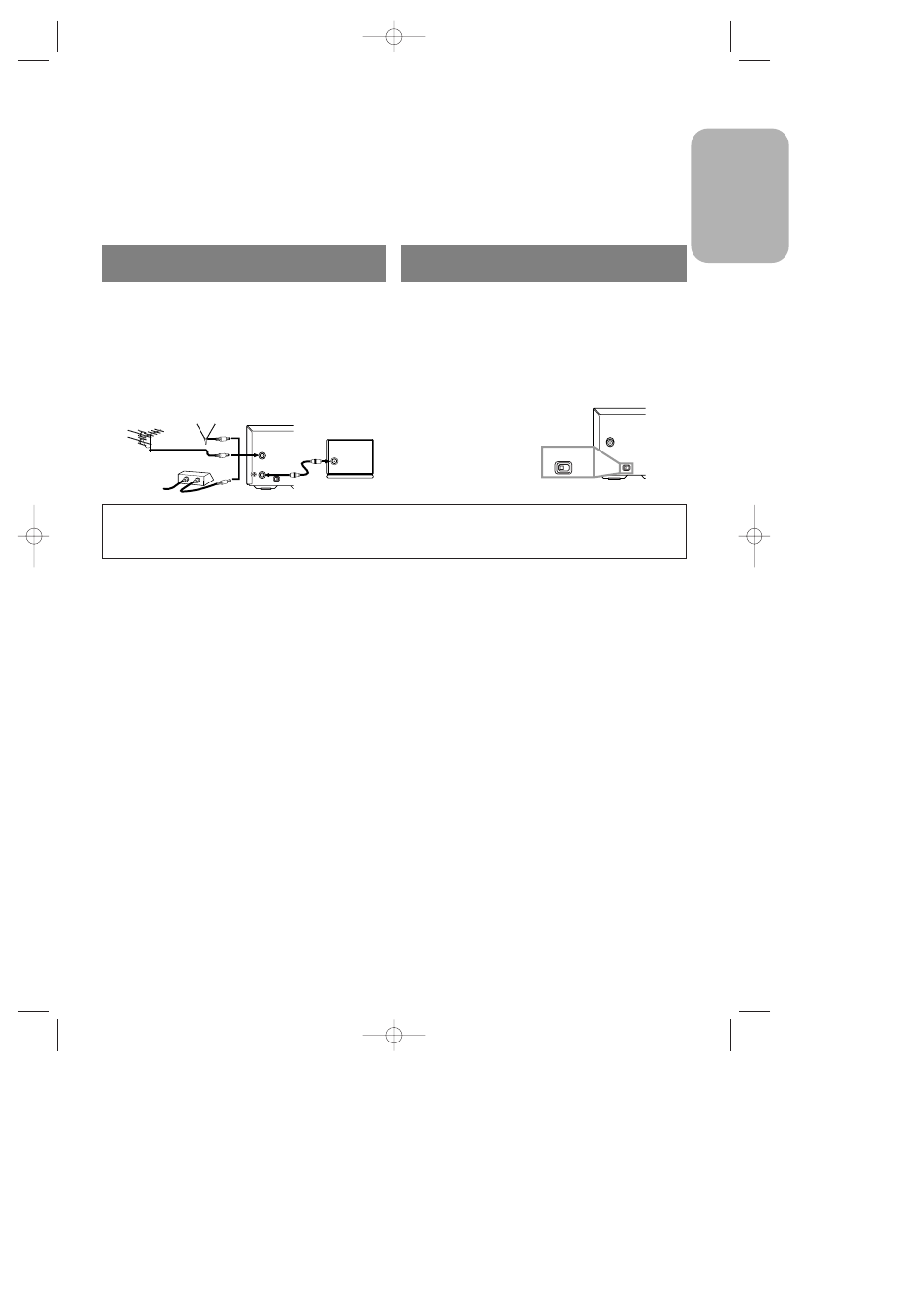

DVD/VCR TO TV CONNECTION
1. Disconnect the AC power cord of the TV from the
AC outlet.
2. Disconnect the antenna or cable from the TV.
3. Connect the antenna or cable to the ANT-IN jack of
the DVD/VCR.
4. Connect the DVD/VCR to the TV using the coaxial
cable.
5. Plug the AC power cords of the DVD/VCR and TV
into the AC outlets.
ANT - IN
3CH 4CH
ANT - OUT
[VHF/UHF
combination antenna] [Back of the DVD Player]
IN OUT
[Cable box or satellite box]
OR
[Indoor antenna]
[Back of the
UHF/VHF combination TV]
UHF/VHF
Coaxial cable
(supplied)
From Cable or
Satellite Company
OR
If your TV does not have A/V terminals:
When the DVD/VCR is in the VCR Playback mode or
when the DVD/VCR is in the VCR mode, your TV will
receive signals from the DVD/VCR on either channel
3 or channel 4. To use the DVD/VCR with your TV, set
the selector switch to CH3 or CH4 (which is located in
the back of your DVD/VCR), whichever is not used for
normal broadcasts in your area. Then set your TV to
the same channel.
Note to CATV system installer
This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the NEC that pro-
vides guidelines for proper grounding and, in particular, specifies that the cable ground should be connected
to the grounding system of the building, as close to the point of cable entry as practical.
ANT - IN
CH3 CH4
ANT - OUT
[Back of the DVD Player]
CH3 CH4
SETTING THE CH3/CH4
SWITCH
