3 595-5657-04
SPECIFICATIONS
Range .....................Up to 30 ft. (9.1 m)
[varies with surround-
ing temperature]
Sensing Angle ........Up to 150°
Sensor Capacity .....Up to 360 Watts (3.0
A.) Maximum Tungsten
Incandescent
Power
Requirements .........120 VAC, 60 Hz
Operating Modes ....TEST, AUTO and
MANUAL OVERRIDE
Time Delay .............1, 5, 20 minutes
Sensitivity ...............Adjustable
D
ual
B
rite
® Timer ....Off, 3, 6 hours, Dusk-
to-Dawn
HeathCo LLC reserves the right to discon-
tinue products and to change specifications
at any time without incurring any obligation
to incorporate new features in products pre-
viously sold.

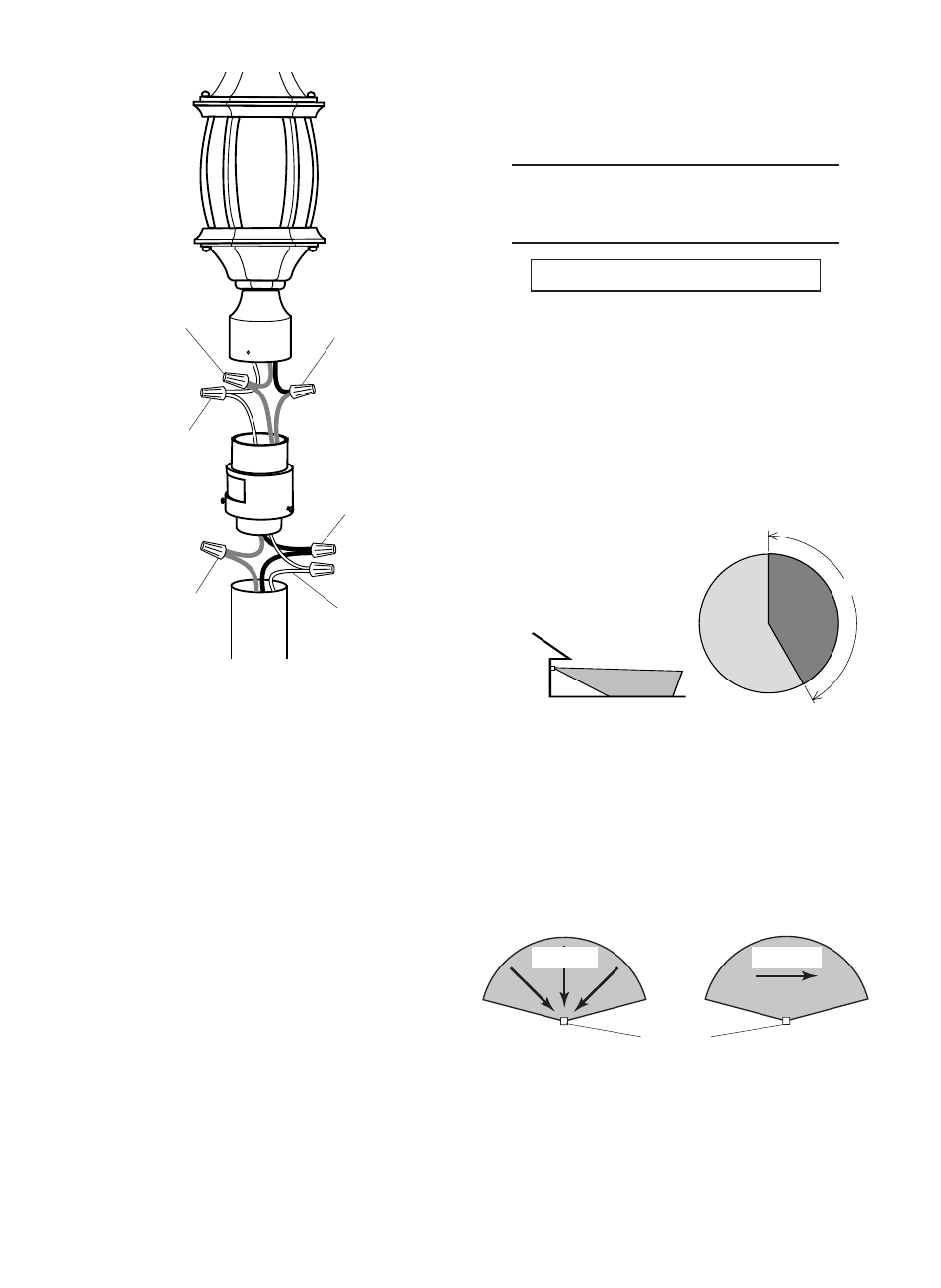

Black sensor
wire to Black
post wire
White sensor
wire to White
post wire
White sensor
wire to White
fixture wire
Green sensor
wire to Green or
bare fixture wire
Red sensor
wire to Black
fixture wire
Green sensor
wire to Green or
bare post wire
TESTING
Turn on the circuit breaker and light
switch.
Maximum Range Maximum
Coverage Angle
Avoid aiming the control at:
• Pools of water or objects that change
temperature rapidly, such as
heating vents
and air conditioners. These heat sources
could cause false triggering.
• Areas where pets or traffic may trigger
the control.
• Nearby large, light-colored objects reflect-
ing daylight may trigger the shut-off feature.
Do not point other lights at the sensor.
Note: Sensor has a 1 1 /
2
minute warm up pe-
riod before it will detect motion. When
first turned on wait 1
1 /
2
minutes.
30 ft.
(9.1 m)
5 ft.
(1.5 m)
150°
Least Sensitive Most Sensitive
The detector is less sensitive to motion di-
rectly towards it and more sensitive to across
motion.
Sensor
Motion Motion
