❒ Swing the sensor head towards the clamp
screw.
For eave mount only:
Controls
INSTALLATION
W
ire the
L
ight
C
ontroL
WARNING: Turn power off at the fuse or
circuit breaker.
❒ Remove the existing light fixture, if present.
These instructions show the sensor wired to flood-
lamps. The
white sensor wire is neutral. The black
sensor wire is hot. The red wire is the switched
"hot" wire. The
lighting load (500 W, 4.A max) is
placed across the white and red wires.
❒ After screwing the sensor into the wall plate,
connect the junction box wires to the Light
Control wires by twisting together and securing
with wire connectors.
M
ount the
L
ight
❒ Follow the instructions that came with your light fix-
ture for mounting and adjusting the light fixture.
❒ Keep regular PAR-38 lamps at least 1" (5 mm)
from the sensor. Halogen lamps should be kept
at least " (51 mm) from the sensor.
Black to Black
White to White
Red Sensor Wire to
Black Lamp Wire
Optional: Connect additional load
across the white and red wires. Total
lighting load including lampheads on
fixture must not exceed 500W (4.A).
Junction
Box
Lamp Holders

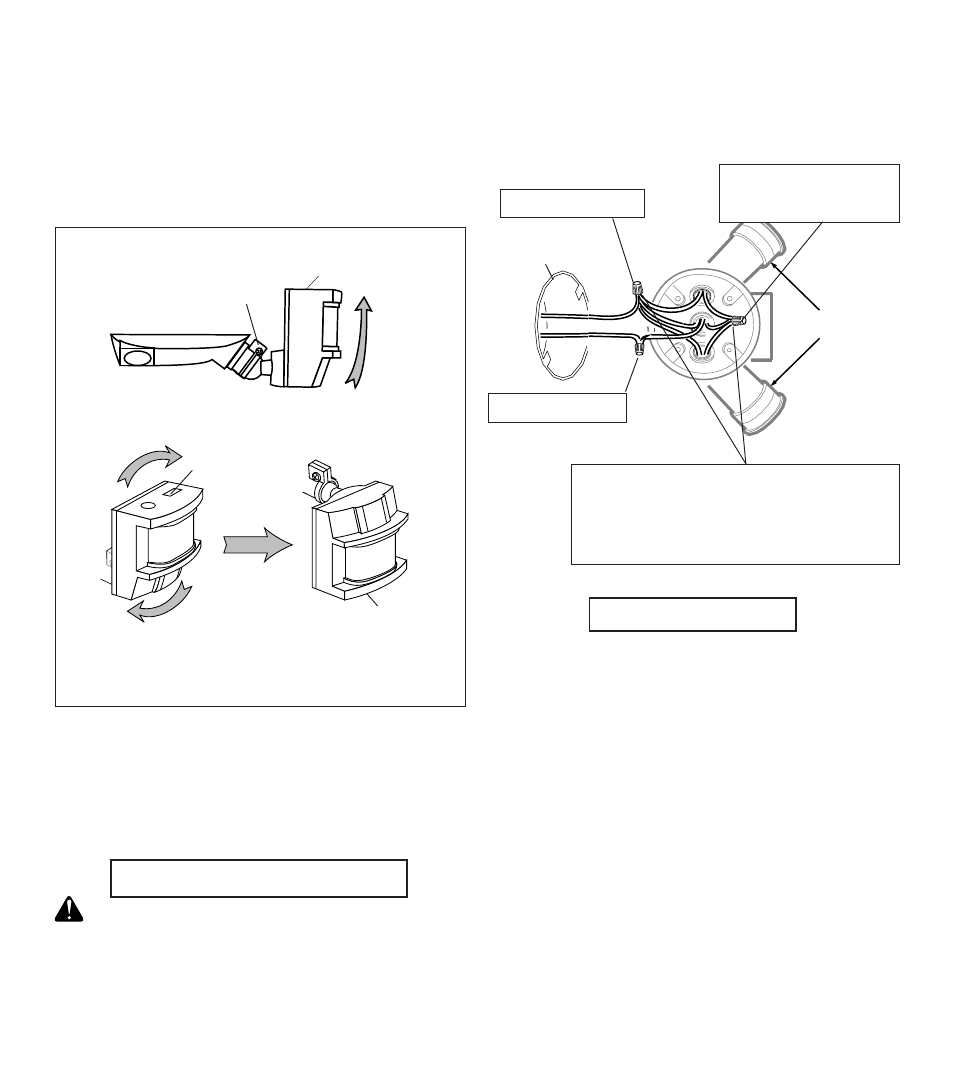

For under eave installation, the sensor head
must be rotated as shown in the next two steps
for proper operation and to avoid the risk of elec-
trical shock.
❒ Rotate the sensor head clockwise 180° so
the controls face down.
Clamp Screw
Controls
Controls
If the sensor pops out of the ball joint, loosen the
clamp screw and push the sensor back into the
ball joint. Tighten the clamp screw when done.
