Connectors, switches, and LEDs 90
Item Icon Description
13 Embedded NIC link LED
14 Embedded NIC activity LED

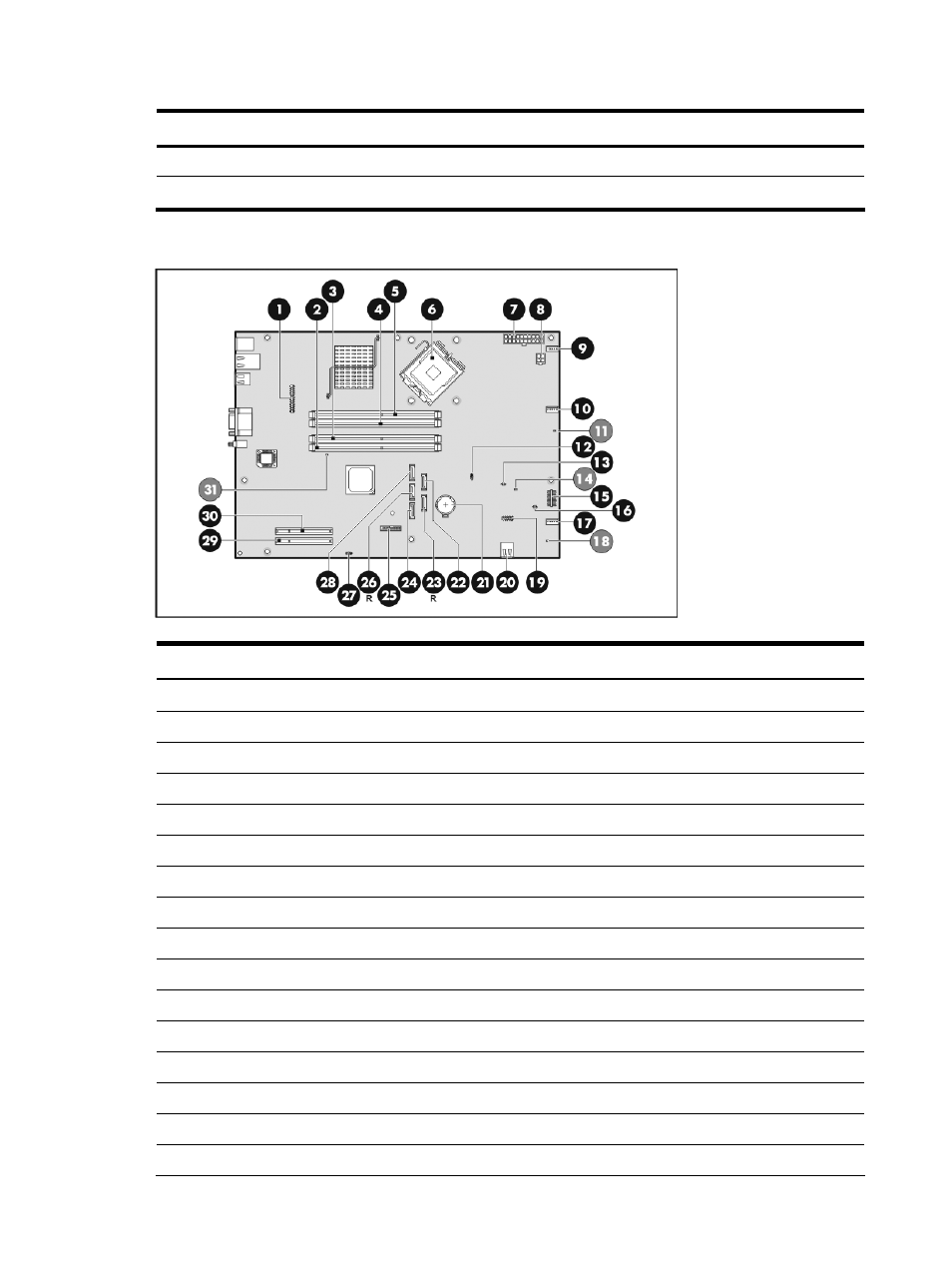

System board
Item Component code Description
1 CN6 DL120 G5 HP Lights-Out 100c module connector
2 DIMM_CH2_B Channel 2 1 st DDR II DIMM slot
3 DIMM_CH2_D Channel 2 2 nd DDR II DIMM slot
4 DIMM_CH1_A Channel 1 1 st DDR II DIMM slot
5 DIMM_CH1_C Channel 1 2 nd DDR II DIMM slot
6 CPU Processor
7 PWR_CN 20-pin ATX system board power connector
8 CN4 4-pin ATX processor power connector
9 CPU_FAN1 Processor fan 1 connector
10 CPU_FAN2 Processor fan 2 connector
11 LED1 Processor fan failure LED
12 JP5 BIOS boot block jumper
13 JP13 NMI jumper
14 LED3 System/processor over temperature (OTP) LED
15 CN8 Front panel board connector
16 CN26 SAS LED cable connector
